Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

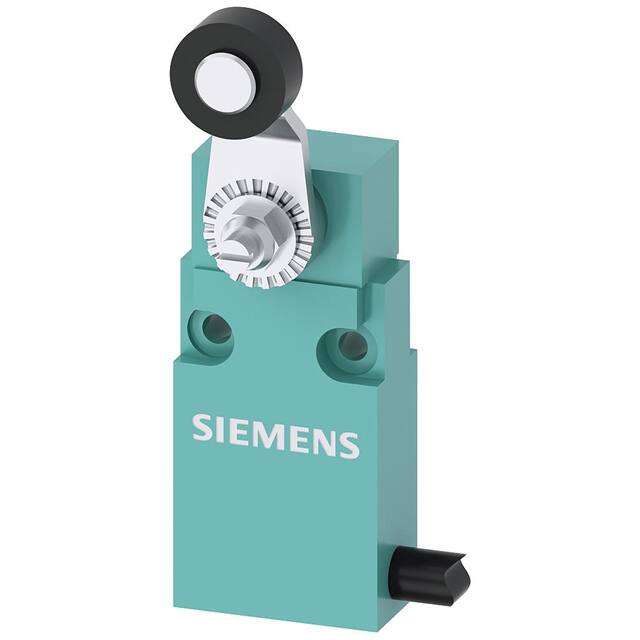

3SE54130CN201EA2SWITCH LIMIT DPST 6A 125V |
3,166 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51123KA00SWITCH LIMIT 3PST 6A 230V |
3,061 |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC) | 230 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51223KA00SWITCH LIMIT 3PST 6A 230V |
2,596 |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC) | 230 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|

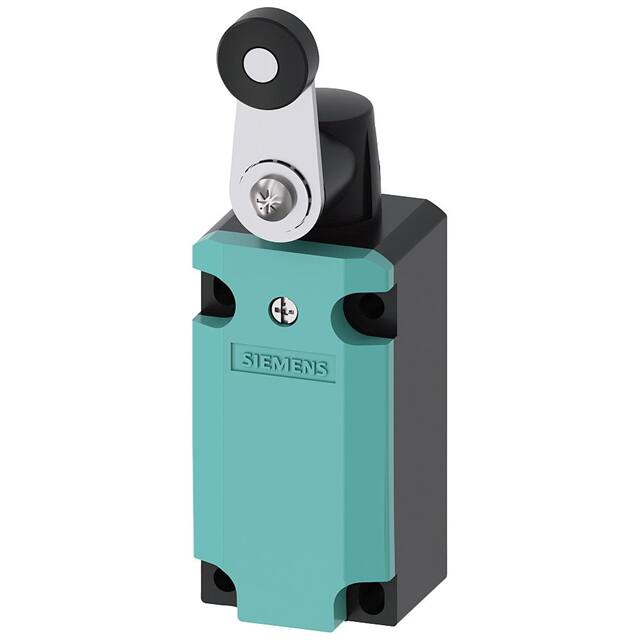

3SE51120CH24SWITCH LIMIT DPST 6A 125V |
3,581 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|

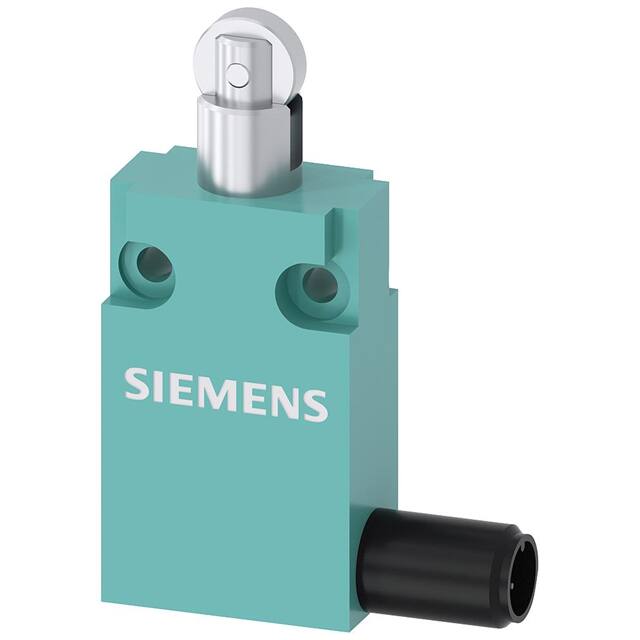

3SE54130CD201EB1SWITCH LIMIT DPST 6A 125V |
2,246 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|

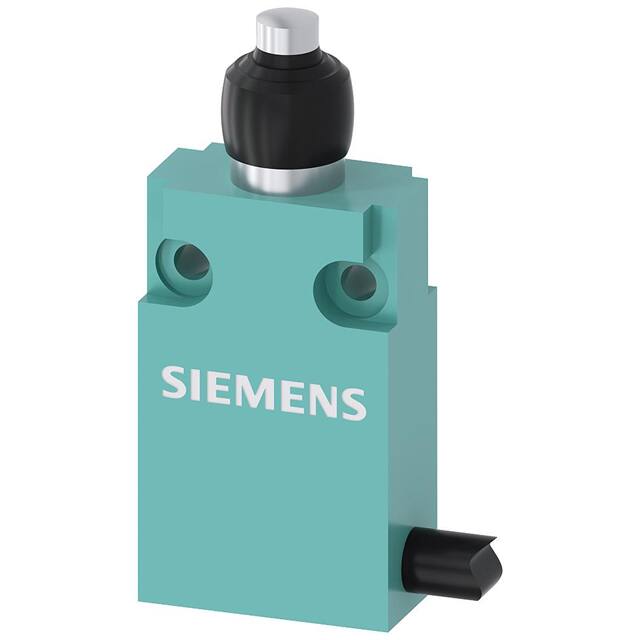

3SE54130CC221EA2SWITCH LIMIT DPST 6A 125V |
4,385 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51220CD021AA7SWITCH LIMIT DPST 6A 125V |
2,189 |
|
Datasheet | 3SE5 | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 6A (AC), 3A (DC) | 125 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
3SE51220BF01SWITCH LIMIT DPST 6A 125V |
3,479 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52341CC051AF3SWITCH LIMIT DPST 3A 24V PLNGR |
4,159 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51120BH50SWITCH LIMIT DPST 6A 125V |
2,873 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
