Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NGCMA10AX01CSWITCH SNAP ACTION DPST 6A 120V |
2,500 |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
GLDA01A2BSWITCH SNAP ACTION SPDT 6A 120V |
2,166 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
BME6-2RQ173SWITCH SNAP ACTION SPDT 22A 125V |
3,066 |
|
Datasheet | E6 | Bulk | Active | SPDT | On-Mom | 22A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
GLCC01B-D1SWITCH SNAP ACTION SPDT 6A 120V |
1,930 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
GLCA01E7BSWITCH SNAP ACTION SPDT 6A 120V |
2,128 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 132gf | - | 16° | 16° | 10° | 35° | -25°C ~ 85°C |
|

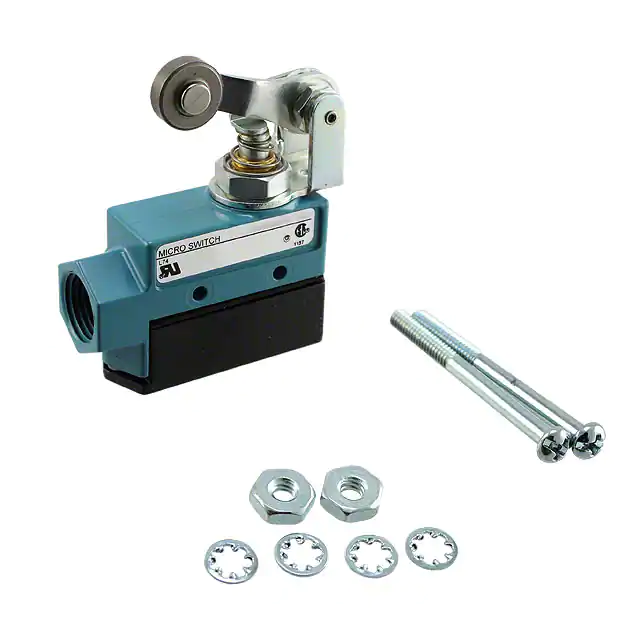

BZE6-2RQ2SWITCH SNAP ACTION SPDT 15A 125V |
1,017 |
|
Datasheet | E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 283 ~ 510gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
14CE2-3SWITCH SNAP ACTION SPDT 5A 250V |
2,446 |
|
Datasheet | 14CE | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | Cable Length 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 70°C |
|
BZG1-2RNSWITCH SNAP ACTION SPDT 15A 125V |
3,277 |
|
Datasheet | BZG | Bulk | Not For New Designs | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Actuator Seal Boot | 255 ~ 680gf | 113gf | 1.369" (34.8mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

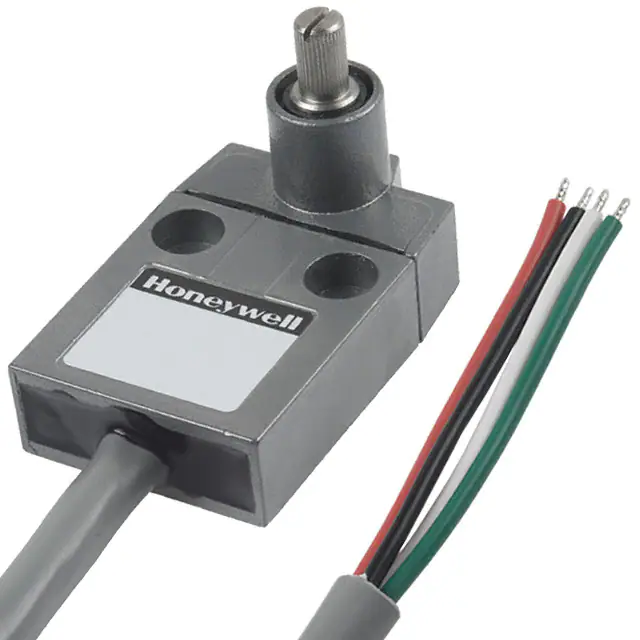

914CE16-3SWITCH SNAP ACTION SPDT 5A 240V |
4,784 |
|
Datasheet | 914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 34gfm | 7.200gfm | - | 30° | 3° | 40° | 0°C ~ 105°C |
|

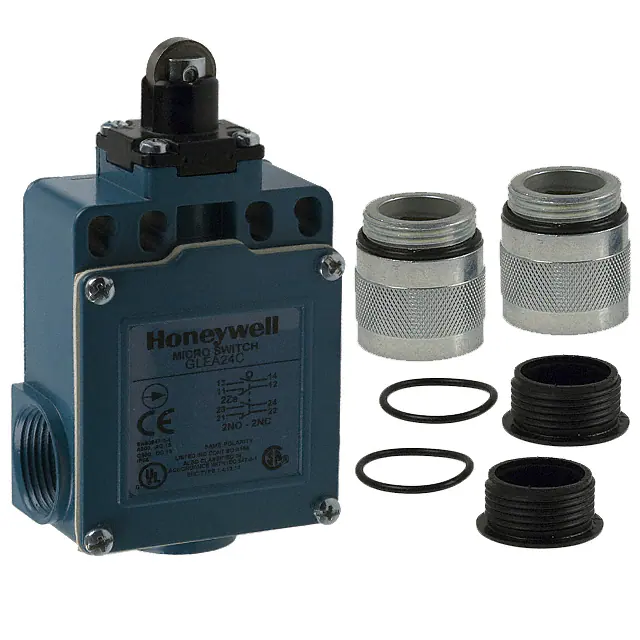

GLEA24CSWITCH SNAP ACTION DPDT 6A 120V |
1,251 |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1315gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.025" (0.6mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
