Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

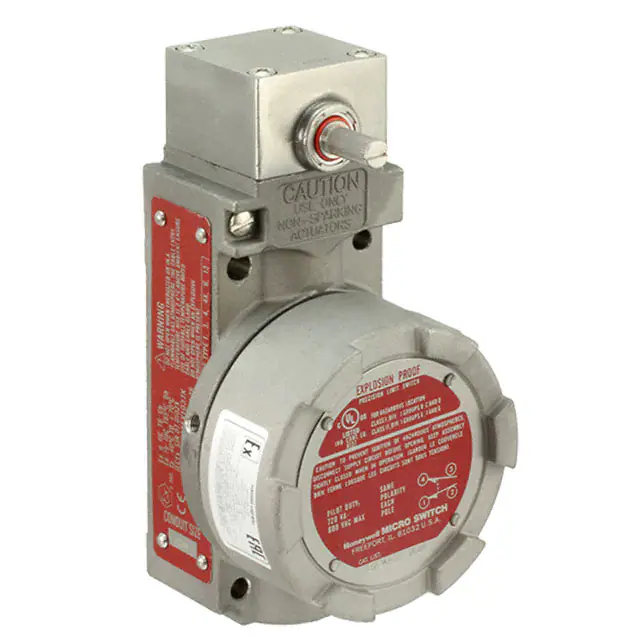

BX24A3KSWITCH SNAP ACTION SPDT 10A 120V |
1,866 |
|
Datasheet | BX2 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Explosion Proof, Stainless Steel | 46gfm | - | 15° | 15° | 5° | 60° | -40°C ~ 70°C |
|
BX2A4LSWITCH LIMIT |
3,872 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12HR11-10SWITCH HERM SEALED HIGH TEMP |
4,763 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
624EN338-RSWITCH SNAP ACTION SPDTX4 7A 28V |
3,202 |
|
Datasheet | EN | Bulk | Active | SPDT x 4 | On-Mom | 7A (DC) | - | 28 V | Roller Plunger | Panel Mount | Cable with Connector | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -54°C ~ 85°C |
|
|
444EN222-6SWITCH AERO SEALED |
4,718 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
32EN1-6SWITCH ENVIRONM SEALED LIMIT |
4,987 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

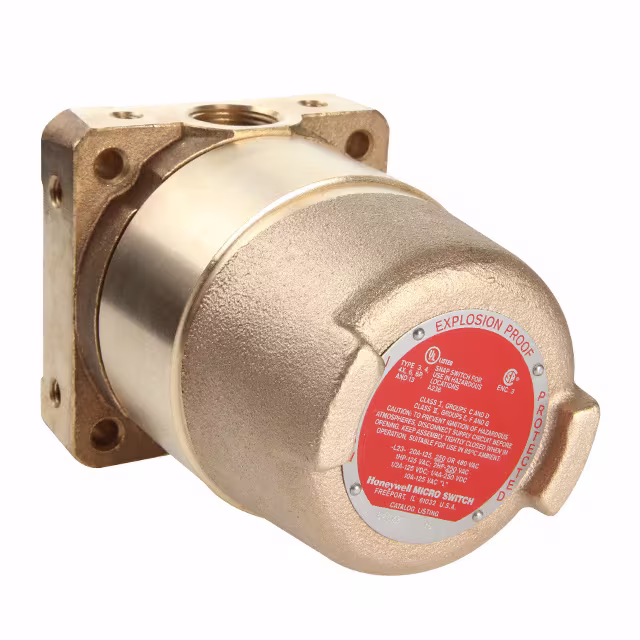

82CX2ASWITCH SNAP ACT SPDTX2 20A 120V |
1,782 |
|
Datasheet | CX | Bulk | Active | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Bronze Housing, Explosion Proof | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
BX24A3K-1ASWITCH SNAP ACTION DPDT 10A 120V |
4,948 |
|
Datasheet | BX2 | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 46gf | - | 15° | 15° | 5° | 60° | -40°C ~ 70°C |
|
|
622EN118-RSWITCH LIMIT SEALED DPDT 7A 28V |
2,394 |
|
Datasheet | EN | Bulk | Active | DPDT | On-Mom | 7A (DC) | - | 28 V | Roller Plunger | Chassis Mount | Cable Leads | - | - | 2268 ~ 5443gf | 1361gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.210" (5.33mm) | - |
|
|
604EN143-6SWITCH AERO SEALED |
4,128 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
