Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXC4LSWITCH SNAP ACTION DPDT 10A 120V |
2,695 |
|
Datasheet | LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Explosion Proof | 1814gf | - | 2.305" (58.5mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
201LS2SWITCH SNAP ACTION SPDT 10A 120V |
2,964 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
201LS23SWITCH SNAP ACTION SPDT 10A 120V |
3,393 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 21gfm | 2.880gf | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
LSS1HSWITCH SNAP ACTION SPDT 10A 120V |
2,675 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 3.571gfm | - | - | - | 12° | - | -12°C ~ 121°C |
|
LSU2BSWITCH SNAP ACTION DPDT 10A 120V |
3,843 |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 5° | 4° | 70° | -12°C ~ 121°C |
|
|
1HS117SWITCH AERO SEALED |
4,540 |
|
Datasheet | HS | Bulk | Obsolete | SPDT | On-Mom | - | - | - | - | Chassis Mount | - | - | - | - | - | - | - | - | - | -55°C ~ 125°C |
|

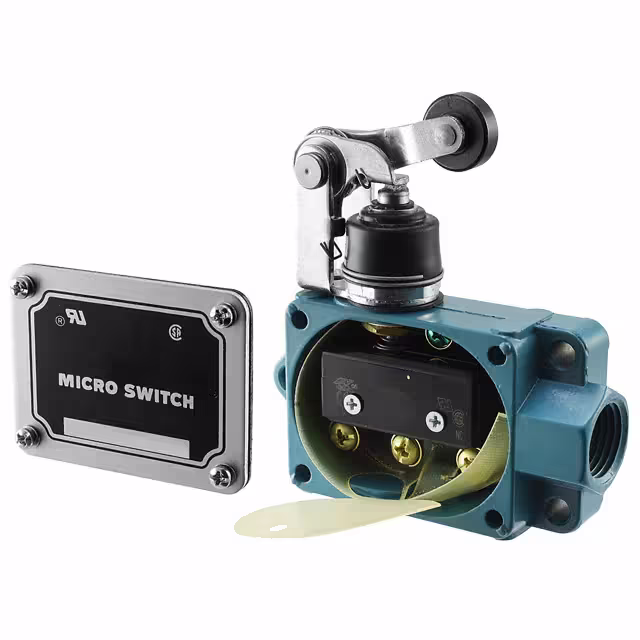

BAF1-2RN2-LHSWITCH SNAP ACTION SPDT 20A 125V |
3,436 |
|
Datasheet | BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 907gf | 227gf | - | 0.219" (5.6mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -32°C ~ 71°C |
|

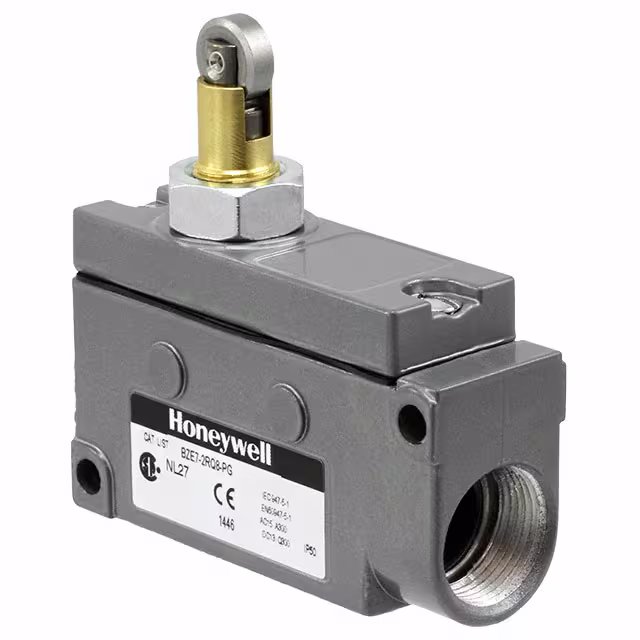

BZE7-2RQ8-PGSWITCH SNAP ACTION SPDT 15A 125V |
3,539 |
|
Datasheet | E7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP50 - Dust Protected | - | 255 ~ 368gf | 113gf | - | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -30°C ~ 71°C |
|
|
LSXYMB4N-2CSWITCH SNAP ACTION DPDT 10A 120V |
2,387 |
|
Datasheet | LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|
|
LSYPC3KY-FPSWITCH SNAP ACTION SPDT 10A 120V |
4,318 |
|
Datasheet | HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 105°C |
