Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLAC06CSWITCH SNAP ACTION DPST 6A 120V |
2,075 |
|
Datasheet | GLS | Bulk | Obsolete | DPST-NC (DB) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.890" (48.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
V3-245SWITCH SNAP ACTION SPDT 10A 125V |
2,436 |
|
Datasheet | V3 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 283 ~ 709gf | 170gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
GLCC07A2BSWITCH SNAP ACTION SPDT 0.1A 50V |
2,844 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
GLEB06A1ALIMIT SWITCH |
3,111 |
|
- |
GLE | Bulk | Active | DPST-NC (DB) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 11gf | - | 26° | 26° | 20.5° | 44° | -40°C ~ 85°C |
|

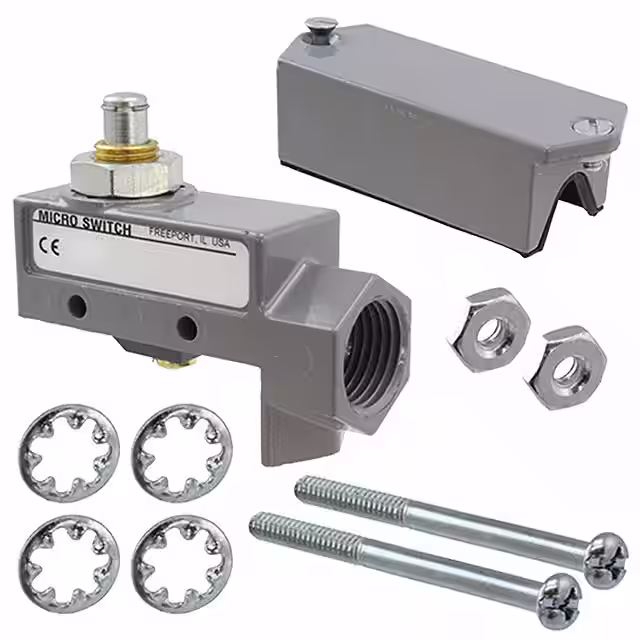

BME6-2RQ171SWITCH SNAP ACTION SPDT 22A 125V |
1,038 |
|
Datasheet | E6 | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
82034-56SWITCH OPERATOR CNTRLS MONITORS |
1,368 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCMB50AX32CLIMIT SWITCH |
2,139 |
|
Datasheet | NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 10mA (DC) | - | 30 mV | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 969gf | 224gf | - | 0.083" (2.1mm) | 0.050" (1.3mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
GLCA36A1B-5SWITCH LIMIT |
1,589 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MT-4R4-A69SWITCH SNAP ACTION SPDT 10A 125V |
4,874 |
|
Datasheet | MT | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 624 ~ 992gf | 227gf | 0.625" (15.9mm) | 0.040" (1.0mm) | 0.007" (0.18mm) | 0.005" (0.13mm) | - |
|
|
NGCPB50AX32LLIMIT SWITCH |
4,865 |
|
Datasheet | NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 10mA (DC) | - | 30 mV | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 969gf | 224gf | - | 0.083" (2.1mm) | 0.050" (1.3mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
