Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

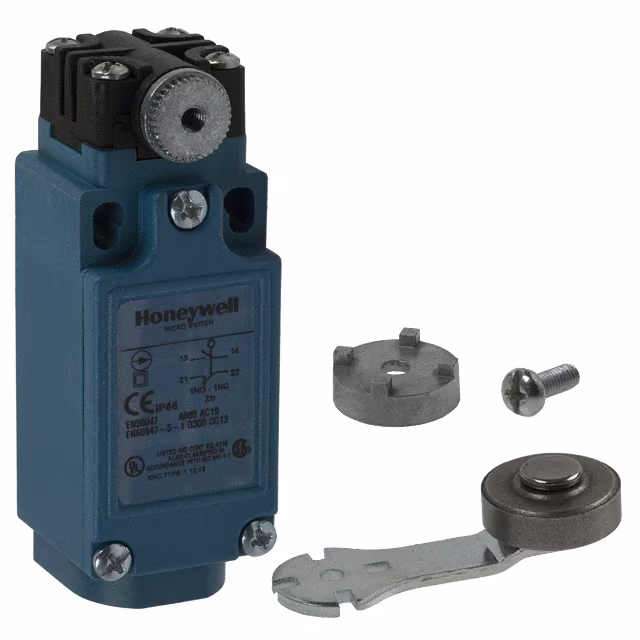

GLDA01A1BSWITCH SNAP ACTION SPDT 6A 120V |
538 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
NGCPB10AX01CSWITCH SNAP ACTION DPST 6A 120V |
1,811 |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
13SX21-TSWITCH SNAP ACTION SPDT 1A 125V |
193 |
|
Datasheet | SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

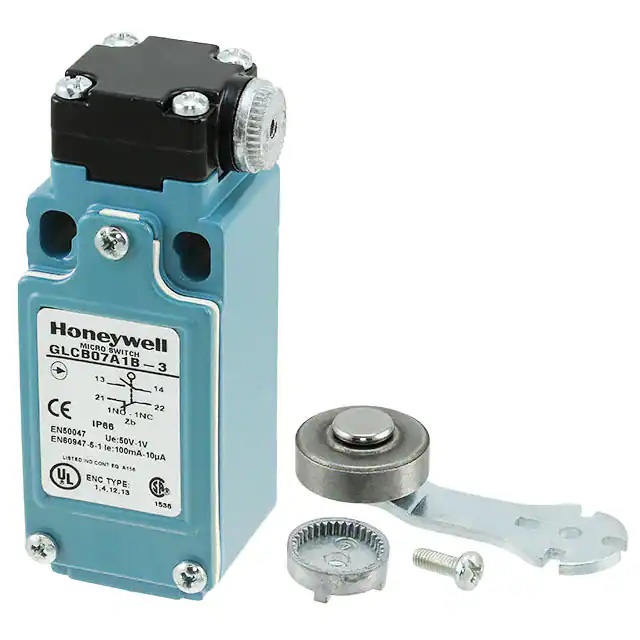

GLCB07A1B-3SWITCH SNAP ACTION SPDT 0.1A 50V |
123 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
NGCMA10AX01A1BSWITCH SNAP ACTION DPST 6A 120V |
1,825 |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
NGCMB10AX01A1BSWITCH SNAP ACTION DPST 6A 120V |
2,039 |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
NGCMA10AX01LSWITCH SNAP ACTION DPST 6A 120V |
1,707 |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
NGCPB10AX24A1ASWITCH SNAP ACT 4PST 0.75A 250V |
3,054 |
|
Datasheet | NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 250 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Nylon Roller | 17gfm | 2.189gfm | 26.5° | 26.5° | 16.5° | 65° | -25°C ~ 75°C |
|
1LS19SWITCH SNAP ACTION SPDT 10A 120V |
2,625 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
V19T16-P2P200A04SWITCH SNAP ACT SPST-NO 16A 125V |
957 |
|
Datasheet | V19 | Box | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | PC Pin | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.138" (3.5mm) | 0.062" (1.6mm) | -25°C ~ 125°C |
