Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NGCPA10AX01PSWITCH LIMIT |
3,375 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

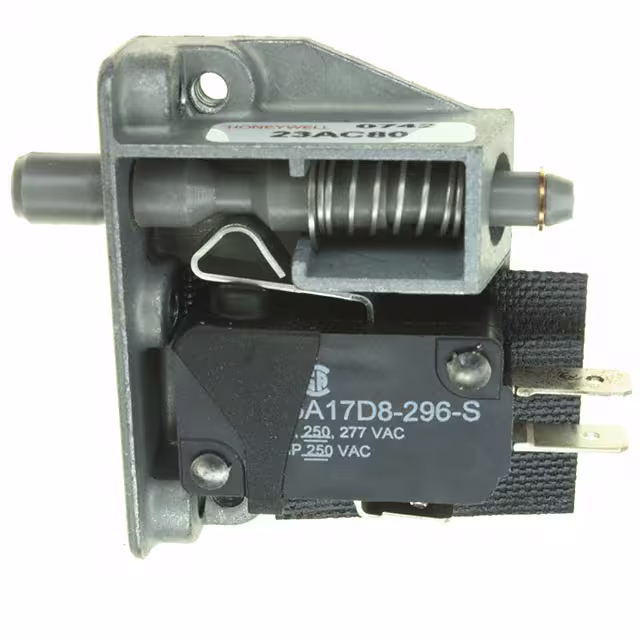

23AC80SWITCH SNAP ACTION SPDT 5A 125V |
2,310 |
|
Datasheet | AC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
|
GLDA05A2BSWITCH SNAP ACTION DPST 6A 120V |
4,424 |
|
Datasheet | GLS | Bulk | Obsolete | DPST-NO (DM) | Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
41SM1-H58SWITCH SNAP ACTION SPDT 11A 250V |
4,126 |
|
Datasheet | SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
GLDC01K8BSWITCH SNAP ACTION SPDT 6A 120V |
4,131 |
|
Datasheet | GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 132gf | - | 16° | 16° | 10° | - | -25°C ~ 85°C |
|
|
MC2711BSWITCH PLUNGER ASSMBLY |
3,277 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

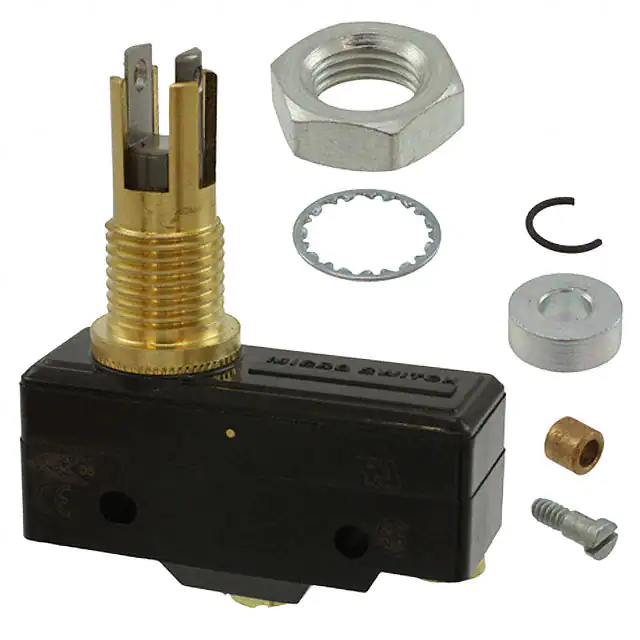

BZ-2RQ69SWITCH SNAP ACTION SPDT 15A 125V |
1,910 |
|
Datasheet | BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.703" (43.3mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
NGCPB07BX07A6BSWITCH COMPACT LIMIT |
1,362 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCPB10AX07LSWITCH LIMIT |
2,558 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-3YQ1TSWITCH SNAP ACTION SPDT 5A 250V |
3,701 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 0.859" (21.8mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
