Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91SX48SWITCH SNAP ACTION SPDT 7A 115V |
4,764 |
|
Datasheet | SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
BZ-2RW8255517-TSWITCH SNAP ACTION SPDT 15A 125V |
1,493 |
|
Datasheet | BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 99gf | 21gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
BZ-2RW82443-A2SWITCH SNAP ACTION SPDT 5A 125V |
4,395 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 127gf | 21gf | 0.792" (20.1mm) | - | 0.035" (0.9mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

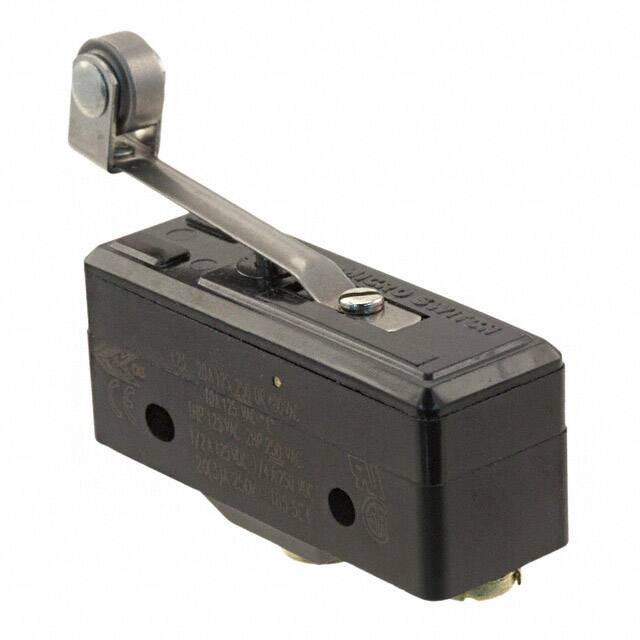

BA-2RL2-A2SWITCH SNAP ACTION SPDT 20A 125V |
4,303 |
|
Datasheet | BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 255gf | 28gf | 1.125" (28.6mm) | - | 0.065" (1.7mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-2RW82128-TSWITCH SNAP ACTION SPDT 15A 125V |
3,021 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 368gf | 113gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
GLDB03BSWITCH SNAP ACTION SPDT 6A 120V |
4,409 |
|
Datasheet | GLS | Bulk | Obsolete | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
BZ-2RW8055517-A2SWITCH SNAP ACTION SPDT 15A 125V |
1,197 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
V3L-2170SWITCH SNAP ACTION SPDT 10A 125V |
3,923 |
|
Datasheet | V3L | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 45gf | 4.000gf | 0.808" (20.52mm) | 0.101" (2.57mm) | 0.025" (0.6mm) | 0.058" (1.47mm) | - |
|

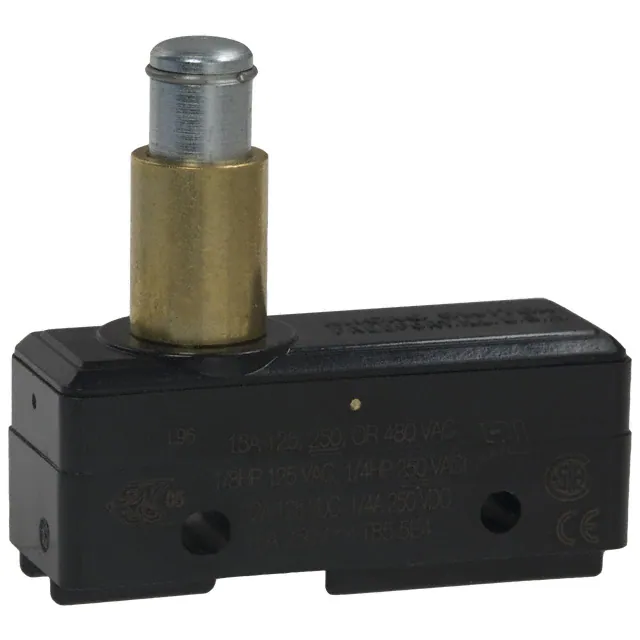

BZ-2RQSWITCH SNAP ACTION SPDT 15A 125V |
3,024 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Solder Lug | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2RW84429-P52SWITCH SNAP ACTION SPDT 15A 125V |
2,351 |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 21gf | - | 0.720" (18.3mm) | 0.625" (15.9mm) | 0.219" (5.6mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
