Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
201LS47SWITCH SNAP ACTION SPDT 10A 120V |
1,147 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 19gfm | 4.078gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
WBX1A00ABJ7ASWITCH SNAP ACTION SPDT |
3,668 |
|
Datasheet | WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Spring, Rod | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -40°C ~ 70°C |
|
WBX1A00ABA3SWITCH SNAP ACTION SPDT |
2,581 |
|
Datasheet | WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Actuator Mounted Right Side | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|

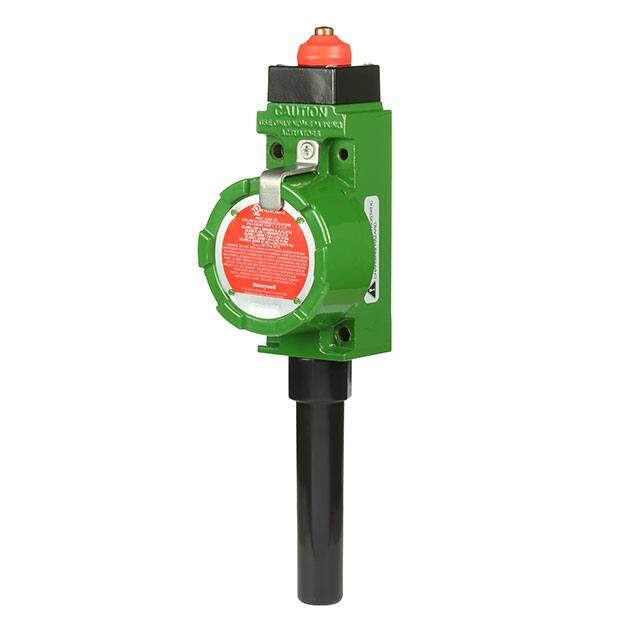

WBX1A00ABCSWITCH SNAP ACTION SPDT |
1,899 |
|
Datasheet | WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 2041gf | - | 2.281" (57.94mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 70°C |
|
WBX1A14ABCSWITCH SNAP ACTION SPDT |
1,493 |
|
Datasheet | WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | 2041gf | - | 2.281" (57.94mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 70°C |
|
|
12HM19-5SWITCH SNAP ACTION SPDT 3A 115V |
4,767 |
|
Datasheet | HM | Bulk | Active | SPDT | On-Mom | 3A (AC), 1A (DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 198gf | 28gf | - | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 125°C |
|
WBX1A14ABASWITCH SNAP ACTION SPDT |
2,359 |
|
Datasheet | WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
|
422EN135SWITCH AERO SEALED |
4,492 |
|
Datasheet | EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
|
LSXD7LSWITCH SNAP ACTION DPDT 10A 120V |
2,385 |
|
Datasheet | LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Explosion Proof | 1814gf | - | 2.700" (68.6mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
1EN289-3SWITCH SNAP ACTION SPDTX2 4A 28V |
1,448 |
|
Datasheet | EN | Bulk | Active | SPDT x 2 | On-Mom | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | Environment Sealed | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | - | - |
