LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
597-3601-602FLED BLUE 1209 SMD |
330 |
|
Datasheet | - | 1209 (3224 Metric) | Strip | Obsolete | Blue | Standard | - | - | 1400mcd | Round with Domed Top | 1.78mm Dia | 3.4V | 20mA | 25° | Surface Mount | 470nm | 468nm | - | - | - | 1209 | 3.20mm L x 2.40mm W |
|
5973021502FLED RED CLEAR 1208 SMD |
222 |
|
Datasheet | 597 | 1208 (3020 Metric) | Strip | Obsolete | Red | Standard | Colorless | Clear | 6.3mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | 110° | Surface Mount | 653nm | 650nm | - | - | - | 1208 | 3.00mm L x 2.00mm W |
|
5988040102FLED YELLOW CLEAR 0603 SMD |
180 |
|
Datasheet | 598 | 0603 (1608 Metric) | Strip | Obsolete | Yellow | Standard | Colorless | Clear | 130mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2V | 20mA | 140° | Surface Mount | 593nm | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
-2.00x1.25x0.70.jpg)
|
5988150102FLED YELLOW CLEAR 0805 SMD |
2,474 |
|
Datasheet | 598 | 0805 (2012 Metric) | Strip | Obsolete | Yellow | Standard | Colorless | Clear | 130mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 2V | 20mA | 140° | Surface Mount | 587nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
5988210102FLED RED CLEAR 1206 SMD |
4,866 |
|
Datasheet | 598 | 1206 (3216 Metric) | Strip | Obsolete | Red | Standard | Colorless | Clear | 55mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 2V | 20mA | 140° | Surface Mount | 635nm | - | - | - | - | 1206 | 3.20mm L x 1.60mm W |
|
|
5973401502FLED YELLOW CLEAR 1208 SMD |
354 |
|
Datasheet | 597 | 1208 (3020 Metric) | Strip | Obsolete | Yellow | Standard | Colorless | Clear | 6.3mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2.1V | 20mA | 110° | Surface Mount | 588nm | 585nm | - | - | - | 1208 | 3.00mm L x 2.00mm W |
 Pkg.jpg)
|
5975203407FLED ORANGE DIFFUSED 2SMD |
996 |
|
Datasheet | 597 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Orange | Standard | White | Diffused | 2mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2.2V | 20mA | 152° | Surface Mount | 606nm | 605nm | - | - | - | 2-SMD | 1.60mm L x 0.80mm W |
-RA-3.20x1.50x1.00.jpg)
|
5988510202FLED GREEN/RED CLEAR 1208 SMD R/A |
283 |
|
Datasheet | 598 | 2-SMD, No Lead | Strip | Obsolete | Green, Red | - | Colorless | Clear | 40mcd Green, 60mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V Green, 2V Red | 20mA Green, 20mA Red | 160° | Surface Mount, Right Angle | 565nm Green, 635nm Red | - | - | - | - | 1208 | 3.20mm L x 1.50mm W |
.jpg)
|
5975411407FLED YELLOW DIFFUSED 2SMD |
956 |
|
Datasheet | 597 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Yellow | Standard | White | Diffused | 11.7mcd | Rectangle with Flat Top | 1.19mm x 1.24mm | 2.1V | 20mA | 150° | Surface Mount | 572nm | 570nm | - | - | - | 2-SMD | 2.00mm L x 1.25mm W |
|

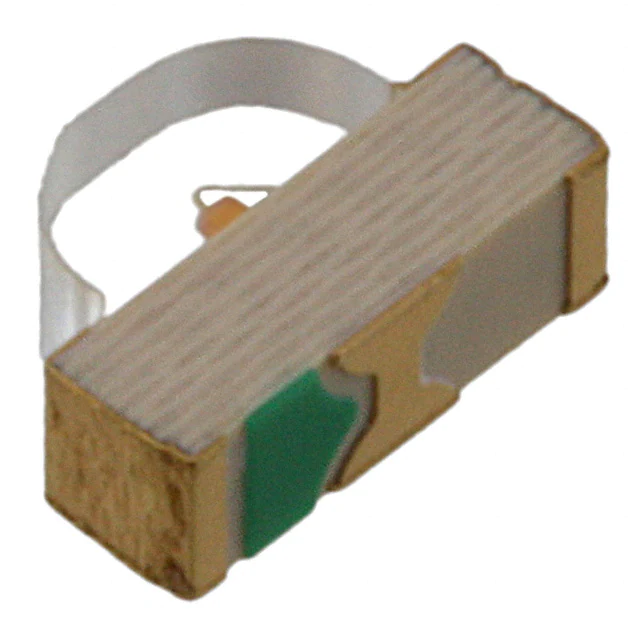

5972311407FLED GREEN CLEAR 1208 SMD R/A |
672 |
|
Datasheet | microLED® | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Green | Standard | Colorless | Clear | 5.2mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.1V | 20mA | 130° | Surface Mount, Right Angle | - | 560nm | - | - | - | 1208 | 3.00mm L x 2.00mm W |
