LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

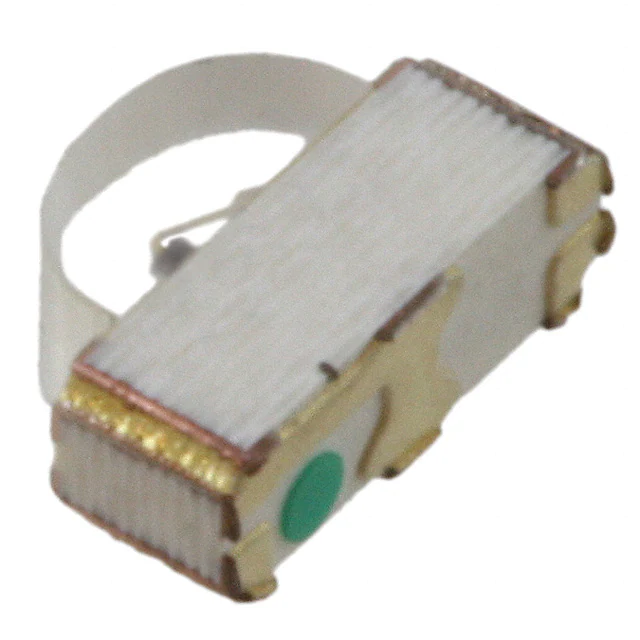

5972751607FLED GRN/RED CLEAR 2SMD R/A |
781 |
|
Datasheet | 597 | 2-SMD, No Lead | Tape & Reel (TR) | Active | Green, Red | Common Anode | Colorless | Clear | 35mcd Green, 45mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V Green, 2V Red | 20mA Green, 20mA Red | 130° | Surface Mount, Right Angle | 571nm Green, 631nm Red | 574nm Green, 639nm Red | - | - | - | 2-SMD | 3.00mm L x 2.00mm W |
|

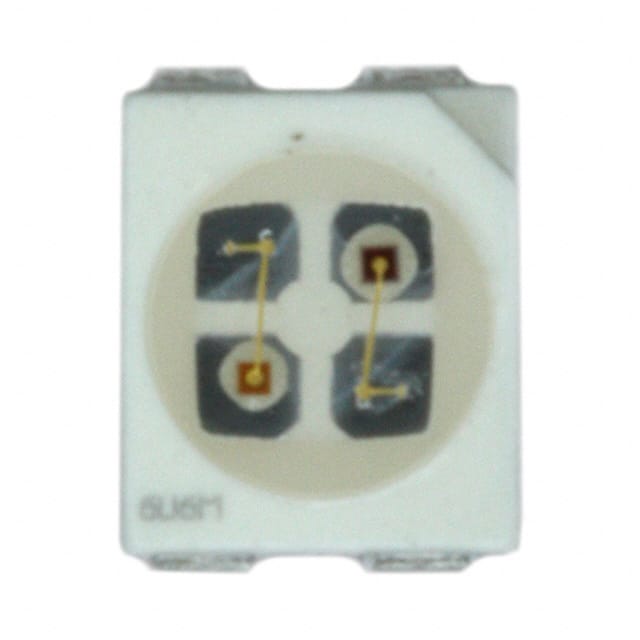

5977701207FLED GREEN/RED CLEAR 4PLCC SMD |
6,835 |
|
Datasheet | microLED® | 4-PLCC | Tape & Reel (TR) | Active | Green, Red | Independent | Colorless | Clear | 16mcd Green, 16mcd Red | Round with Flat Top | 2.39mm Dia | 2.1V Green, 2V Red | 20mA Green, 20mA Red | 120° | Surface Mount | 570nm Green, 628nm Red | 565nm Green, 630nm Red | - | - | - | 4-PLCC | 3.20mm L x 2.70mm W |
|
5973327507FLED GREEN CLEAR 0402 SMD |
8,461 |
|
Datasheet | 597 | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 13mcd | Square with Flat Top | 0.60mm | 2.2V | 20mA | 135° | Surface Mount | 560nm | - | - | - | - | 0402 | 1.00mm L x 0.60mm W |
|

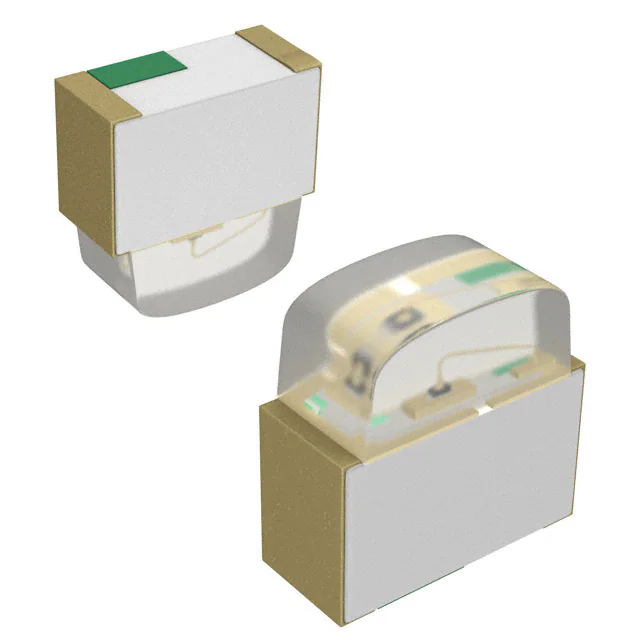

5972903507FLED COOL WHT CLEAR 0605 SMD R/A |
12,149 |
|
Datasheet | 597 | 2-SMD, No Lead | Tape & Reel (TR) | Active | White | Standard | Colorless | Clear | 170mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 3.1V | 10mA | 150° | Surface Mount, Right Angle | - | - | - | - | - | 0605 | 1.60mm L x 1.15mm W |
|

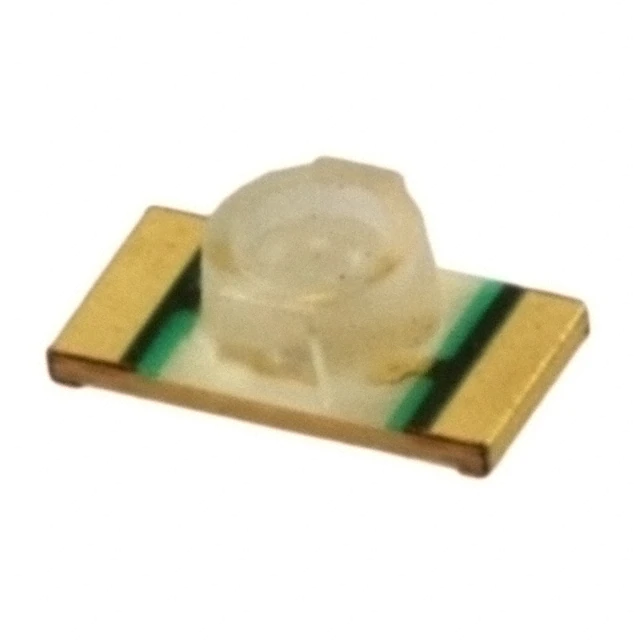

5976301607FLED GREEN CLEAR 1206 SMD |
5,877 |
|
Datasheet | 597 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 411mcd | Round with Flat Top | 1.60mm Dia | 3.3V | 20mA | 70° | Surface Mount, Bottom Entry | 525nm | 530nm | - | - | - | 1206 | 3.20mm L x 1.60mm W |
-RA-3.20x1.50x1.00.jpg)
|
5988820307FLED RGB CLEAR 1208 R/A SMD |
6,709 |
|
Datasheet | 598 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 135mcd Red-Orange, 380mcd Green, 130mcd Blue | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 160° | Surface Mount, Right Angle | 635nm Red, 525nm Green, 470nm Blue | - | - | - | - | 1208 | 3.20mm L x 1.50mm W |
|
5988720307FLED RGB CLEAR 0606 SMD |
4,583 |
|
Datasheet | 598 | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 80mcd Red-Orange, 150mcd Green, 60mcd Blue | Rectangle with Flat Top | 1.10mm x 0.90mm | 2.2V Red-Orange, 3V Green, 3.2V Blue | 20mA Red-Orange, 20mA Green, 20mA Blue | 140° | Surface Mount | 625nm Red-Orange, 525nm Green, 470nm Blue | - | - | - | - | 0606 | 1.60mm L x 1.60mm W |
|
|
5988710307FLED RGB CLEAR 0606 SMD |
4,185 |
|
Datasheet | 598 | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 60mcd Red, 120mcd Green, 90mcd Blue | Rectangle with Flat Top | 1.10mm x 0.90mm | 2V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 140° | Surface Mount | 635nm Red, 525nm Green, 470nm Blue | - | - | - | - | 0606 | 1.60mm L x 1.60mm W |
|

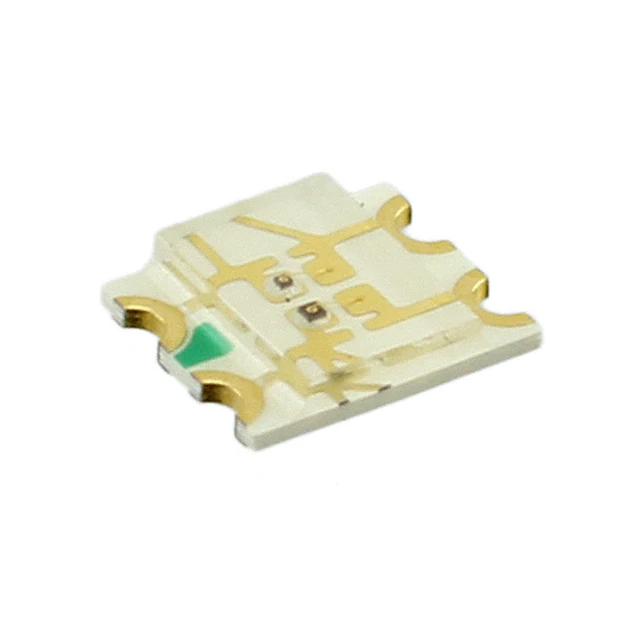

5988610307FLED RGB CLEAR 1210 SMD |
817 |
|
Datasheet | 598 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 60mcd Red, 120mcd Green, 90mcd Blue | Rectangle with Flat Top | 2.00mm x 1.30mm | 2V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 140° | Surface Mount | 635nm Red, 525nm Green, 470nm Blue | - | - | - | - | 1210 | 3.20mm L x 2.70mm W |
|
5990030007FLED ORANGE 0603 SMD |
42,512 |
|
Datasheet | 599 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Orange | Standard | - | - | 90mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2.1V | 20mA | 140° | Surface Mount | 605nm | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
