LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5973316507FLED GREEN 0603 SMD |
1,299 |
|
Datasheet | 597 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Green | Standard | - | - | 34mcd | Round with Domed Top | - | 2V | 20mA | - | Surface Mount | 560nm | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
|
QBL8Y15CLED YELLOW CLEAR T-1 3/4 T/H |
1,001 |
|
Datasheet | QBL8XX15Y | Radial | Bulk | Active | Yellow | Standard | Colorless | Clear | 5000mcd | Round with Domed Top | 5.00mm Dia | 2V | 20mA | 15° | Through Hole | 590nm | - | - | - | - | T-1 3/4 (5mm) | 5.00mm Dia |
|
HSMJ-A100-R40J1LED RED CLEAR 2PLCC SMD |
28,771 |
|
Datasheet | - | 2-PLCC | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 198.75mcd | Round with Flat Top | 2.20mm Dia | 1.9V | 20mA | 120° | Surface Mount | 615nm | 621nm | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
BL-HJEGKB536E-TRB-QLED ORANGE-RED/GRN/BLUE CLR SMD |
28,666 |
|
Datasheet | - | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Orange-Red, Green, Blue | Common Anode | Colorless | Clear | 35mcd Orange-Red, 317mcd Green, 42mcd Blue | Rectangle with Flat Top | 1.50mm x 1.00mm | 2V Orange-Red, 2.8V Green, 2.8V Blue | 20mA Orange-Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 620nm Orange-Red, 528nm Green, 470nm Blue | 630nm Orange-Red, 520nm Green, 470nm Blue | - | - | - | - | 1.60mm L x 1.50mm W |
|
HSMH-H120LED RED CLEAR |
12,113 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | Red | - | - | Clear | 7.2mcd | Rectangle with Domed Top | 1.20mm x 0.60mm | 2.1V | 20mA | 155° | - | 639nm | 660nm | - | - | - | - | - |
|
SSL-LX5093XRC/4LED RED CLEAR T-1 3/4 T/H |
9,649 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 2500mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.7V | 20mA | 20° | Through Hole | - | 660nm | - | - | - | T-1 3/4 | - |
|

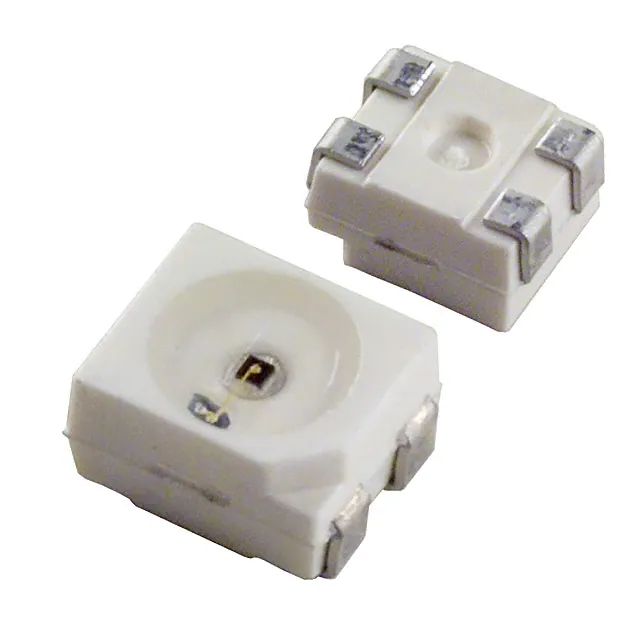

LY E6SF-ABCA-36-3B5A-50-R18-ZLED YELLOW CLEAR 4PLCC SMD |
7,650 |
|
Datasheet | Power TOPLED® | 4-PLCC | Tape & Reel (TR) | Active | Yellow | - | Colorless | Clear | 2475mcd | Round with Flat Top | 2.40mm Dia | 2.15V | 50mA | 120° | Surface Mount | 590nm | 597nm | - | - | - | 4-PLCC | 3.20mm L x 2.80mm W |
.jpg)
|
SML-811VTT86CLED RED CLEAR 3412 SMD |
7,017 |
|
Datasheet | SML-811 | 1305 (3412 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 22.4mcd | Rectangle with Flat Top | 1.25mm x 1.20mm | 1.95V | 10mA | - | Surface Mount, Bottom Entry | 630nm | - | - | Automotive | AEC-Q101 | 3412 (1305) | 3.40mm L x 1.25mm W |
|

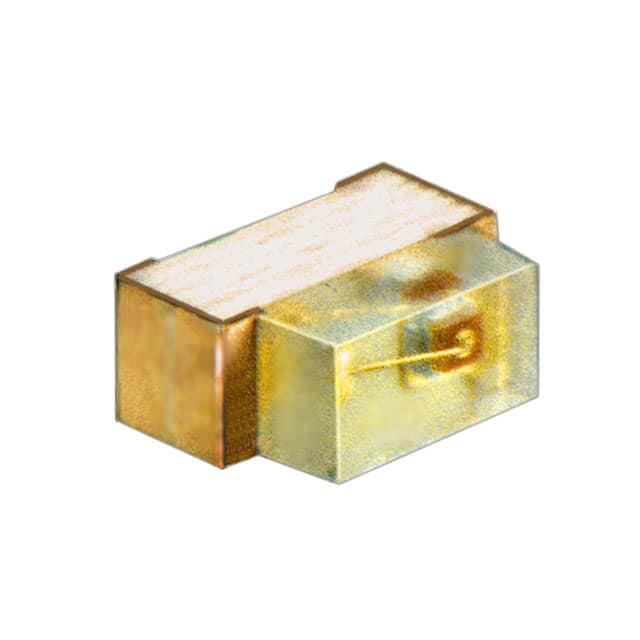

CL-270YG-C-TSLED GREEN SMD R/A |
5,000 |
|
Datasheet | CL-270 | 2-SMD, No Lead | Tape & Reel (TR) | Active | Green | Standard | - | - | 18mcd | Rectangle with Flat Top | 1.20mm x 0.60mm | 2.2V | 20mA | - | Surface Mount, Right Angle | 575nm | - | - | - | - | - | 1.60mm L x 1.15mm W |
|
QBLP655-RGBLED RGB CLEAR 1205 SMD |
4,257 |
|
Datasheet | QBLP655 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 90mcd Red, 450mcd Green, 95mcd Blue | Square with Flat Top | 1.20mm | 2V Red, 3.1V Green, 3.1V Blue | 20mA Red, 20mA Green, 20mA Blue | 140° | Surface Mount | 623nm Red, 520nm Green, 470nm Blue | - | - | - | - | 1205 | 3.20mm L x 1.20mm W |
|
|
5988J10103FLED RED 4PLCC SMD |
3,912 |
|
Datasheet | - | 4-PLCC | Tape & Reel (TR) | Active | Red | - | - | - | 13000mcd | Round with Domed Top | 2.40mm Dia | 2.3V | 50mA | 30° | Surface Mount | 629nm | - | - | - | - | 4-PLCC | - |
|
LW TVSG.CB-AZBZ-JKPL-Z486-20-R18-ZLED WHITE DIFFUSED 2PLCC SMD |
3,446 |
|
Datasheet | TOPLED® | 2-PLCC | Tape & Reel (TR) | Active | White | Standard | Yellow | Diffused | 2150mcd | Round with Flat Top | 2.40mm Dia | 3.05V | 20mA | 120° | Surface Mount | - | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
SB1204WC02-RGBLED RGB CLEAR 1204 SMD |
2,854 |
|
Datasheet | SpectraBright | 1204 (3210 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 125mcd Red, 400mcd Green, 80mcd Blue | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V Red, 3V Green, 3V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 625nm Red, 520nm Green, 465nm Blue | - | - | - | - | 1204 | 3.20mm L x 1.00mm W |
|
XZM2CYK53WA-8STLED YELLOW CLEAR CHIP SMD |
2,467 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | Colorless | Clear | 597mcd | Round with Domed Top | 0.70mm Dia | 2V | 20mA | 100° | Surface Mount | 590nm | 590nm | - | - | - | Chip LED | 1.60mm L x 0.80mm W |
|
|
597-6602-107FLED BLUE 1206 SMD |
1,652 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Blue | - | - | - | 1360mcd | Round with Domed Top | 1.20mm Dia | 3.2V | 20mA | 30° | Surface Mount | 469nm | - | - | - | - | 1206 | 3.20mm L x 1.60mm W |
|
AA3021LSYSK/J3-TRLED YELLOW CLEAR 2SMD |
1,338 |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Yellow | Independent | Colorless | Clear | 45mcd | Oval with Flat Top | 2.50mm x 1.50mm | 1.85V | 2mA | 125° | Surface Mount | 590nm | 590nm | - | - | - | 2-SMD | 2.70mm L x 2.00mm W |
|
SLR-325MCT31LED GREEN CLEAR T-1 T/H |
1,204 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Green | Standard | Green | Clear | 25mcd | Round with Domed Top | 3.20mm Dia | 2.1V | 10mA | 40° | Through Hole | 572nm | - | - | - | - | T-1 | - |
|
HLMP-1340-J0002LED RED CLEAR T-1 T/H |
29,054 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Active | Red | Standard | - | Clear | 55mcd | Round with Domed Top | 3mm, T-1 | 1.9V | 20mA | 24° | Through Hole | 626nm | 635nm | - | - | - | T-1 | - |
|
HSML-C120LED ORANGE CLEAR CHIP SMD R/A |
28,160 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Orange | Standard | Colorless | Clear | 90mcd | Rectangle with Domed Top | 1.20mm x 0.60mm | 1.9V | 20mA | 155° | Surface Mount, Right Angle | 605nm | 609nm | - | - | - | Chip LED | 1.60mm L x 1.00mm W |
|
SML-LXT0805SYW-TRLED YELLOW DIFFUSED SMD |
13,865 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | White | Diffused | 60mcd | Rectangle with Flat Top | 1.30mm x 1.25mm | 2.1V | 20mA | 140° | Surface Mount | - | 590nm | - | - | - | - | 2.00mm L x 1.25mm W |
