LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Millicandela Rating | Internal Connection | Size / Dimension | Color | Configuration | Voltage - Forward (Vf) (Typ) | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XMMR07CLED DOT MATRIX 5X7 0.3" RED CC |
1,108 |
|
Datasheet | - | Tube | Obsolete | 7mcd | Common Anode Row, Common Cathode Column | 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm) | Red | 5 x 7 | 1.8V | - |
|

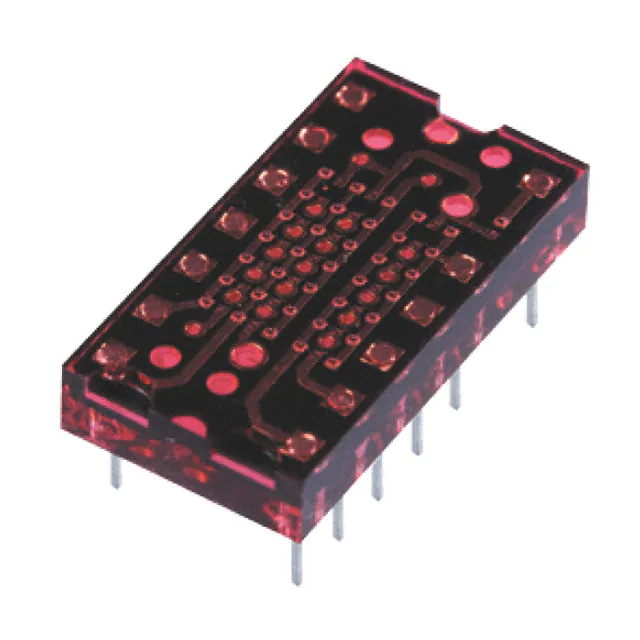

XMMR07ALED DOT MATRIX 5X7 0.3" RED CA |
1,070 |
|
Datasheet | - | Tube | Obsolete | 7mcd | Common Cathode Row, Common Anode Column | 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm) | Red | 5 x 7 | 1.8V | - |
|

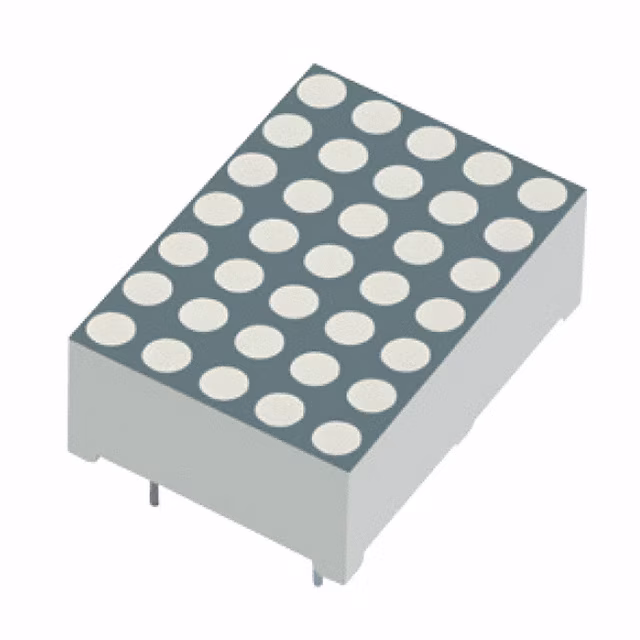

XMMR18CLED DOT MATRIX 5X7 0.7" RED CC |
4,730 |
|
Datasheet | - | Tube | Obsolete | 8mcd | Common Anode Row, Common Cathode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Red | 5 x 7 | 1.8V | - |
|
XMMR18ALED DOT MATRIX 5X7 0.7" RED CA |
1,033 |
|
Datasheet | - | Tube | Obsolete | 8mcd | Common Cathode Row, Common Anode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Red | 5 x 7 | 1.8V | - |
|

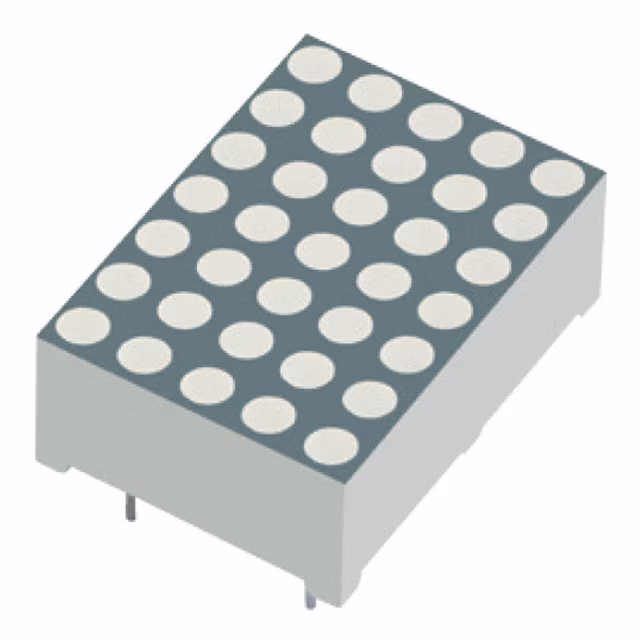

XMUR18CLED DOT MATRIX 5X7 0.7" RED CC |
1,633 |
|
Datasheet | - | Tube | Active | 2mcd | Common Anode Row, Common Cathode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Red | 5 x 7 | 1.9V | - |
|

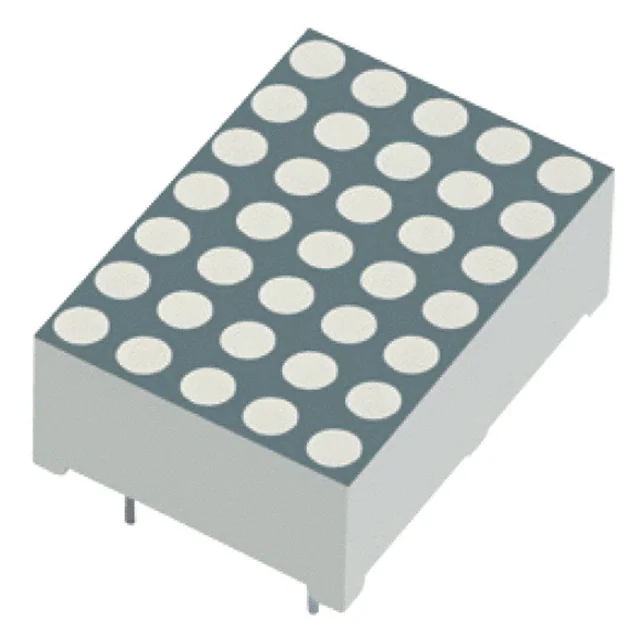

XMUG18ALED DOT MATRIX 5X7 0.7" GREEN CA |
4,064 |
|
Datasheet | - | Tube | Active | 3mcd | Common Cathode Row, Common Anode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Green | 5 x 7 | 2V | - |
|

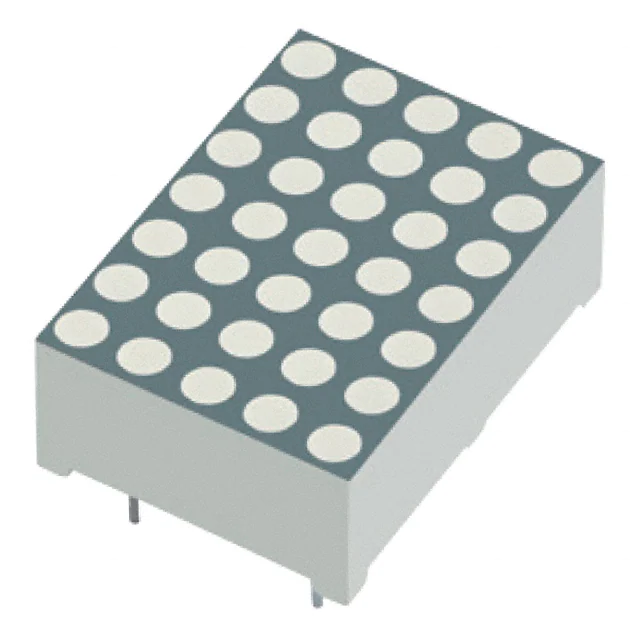

XMUG18CLED DOT MATRIX 5X7 0.7" GREEN CC |
2,423 |
|
Datasheet | - | Tube | Active | 3mcd | Common Anode Row, Common Cathode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Green | 5 x 7 | 2V | - |
|

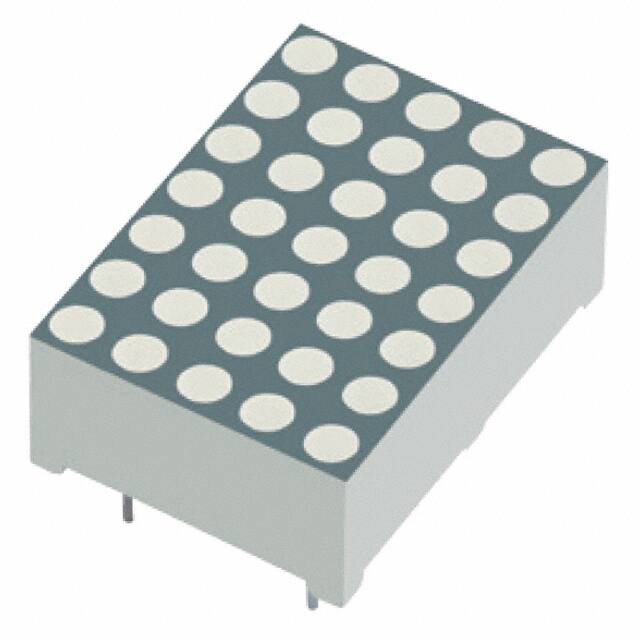

XMUY18ALED DOT MATRIX 5X7 0.7" YLW CA |
2,921 |
|
Datasheet | - | Tube | Active | 2mcd | Common Cathode Row, Common Anode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Yellow | 5 x 7 | 1.95V | - |
|

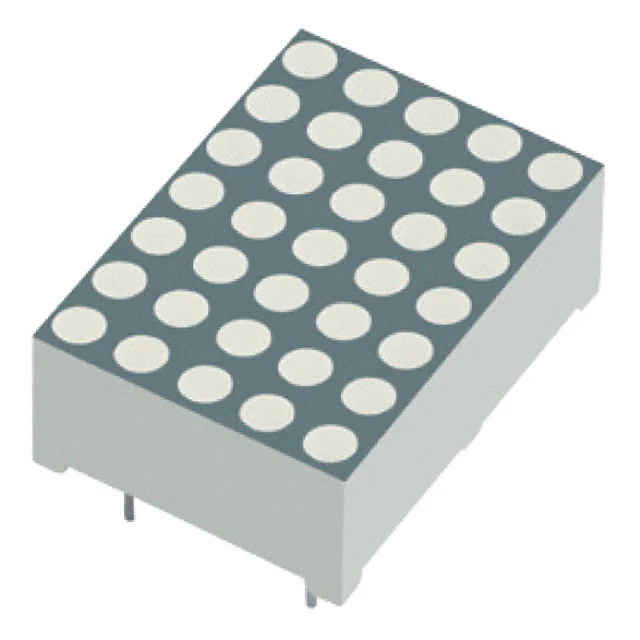

XMUY18CLED DOT MATRIX 5X7 0.7" YLW CC |
2,340 |
|
Datasheet | - | Tube | Active | 2mcd | Common Anode Row, Common Cathode Column | 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm) | Yellow | 5 x 7 | 1.95V | - |
|
XMUG07ALED DOT MATRIX 5X7 0.3" GRN CA |
1,935 |
|
Datasheet | - | Tube | Active | 3mcd | Common Cathode Row, Common Anode Column | 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm) | Green | 5 x 7 | 2V | - |
