LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSP-FSD8DSY-12V3LED MOD YELLOW LNR LGT STRIP |
1,453 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LED Module | Yellow | - | 590nm | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 85° | - | - | - | - | Domed |
|
|
SSP-FSD8DUSB-12V3LED MOD BLUE LNR LGT STRIP 12V |
2,355 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LED Module | Blue | - | 470nm | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 85° | - | - | - | - | Domed |
|
|
SSP-FSD8DSI-12V3LED MOD RED LNR LGT STRIP 12V |
1,294 |
|
Datasheet | - | Bulk | Obsolete | LED Module | Red | - | 636nm | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 85° | - | - | - | - | Domed |
|
|
SSP-CS832UP12LED MOD GRN LNR LGT STRP 3.27" |
4,931 |
|
Datasheet | - | - | Active | LED Module | Green | - | 525nm | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 50° | - | 83.00mm L | 10.00mm | - | Flat |
|
|
SSP-CS83912LED MOD WHT LNR LGT STRIP 3.27" |
3,775 |
|
Datasheet | - | - | Active | LED Module | White | - | - | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 50° | - | 83.00mm L | 10.00mm | - | Flat |
|
|
SSP-CS836U12LED MOD RED LNR LGT STRIP 3.27" |
3,083 |
|
Datasheet | - | - | Active | LED Module | Red | - | 626nm | Linear Light Strip | - | - | 25°C | 12V | - | - | - | 50° | - | 83.00mm L | 10.00mm | - | Flat |
|
SML-LX12012MWC-WB3LED COB TITANBRITE WHT LNR STRP |
1,624 |
|
Datasheet | TitanBrite Strip | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Linear Light Strip | 240lm (Typ) | 320mA | 25°C | 12V | 63 lm/W | 700mA | - | 170° | - | 120.00mm L x 12.00mm W | 2.80mm | - | Flat |
|
SML-LX12012UWC-WB3LED COB TITANBRITE WHT LNR STRP |
4,163 |
|
Datasheet | TitanBrite Strip | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Linear Light Strip | 270lm (Typ) | 320mA | 25°C | 12V | 64 lm/W | 700mA | - | 170° | - | 120.00mm L x 12.00mm W | 2.80mm | - | Flat |
|

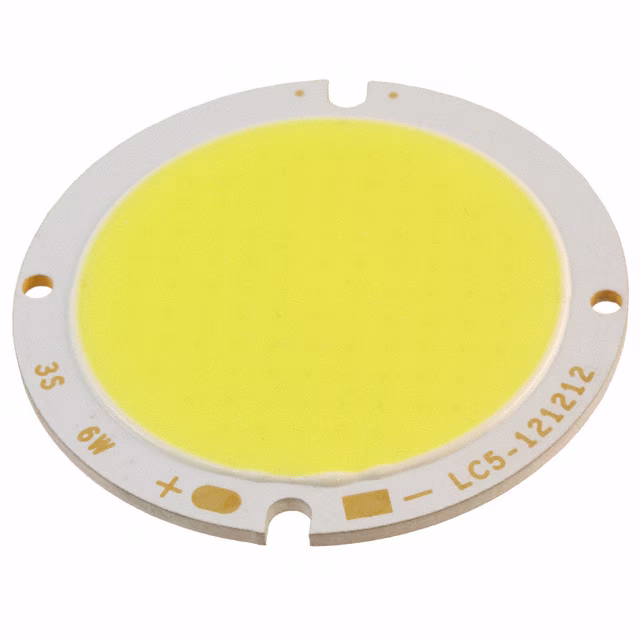

SML-LX5026MWC-WB6LED COB WARM WHT ROUND 3500K |
2,944 |
|
Datasheet | - | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Round | 640lm (Typ) | 660mA | 25°C | 10.2V | 95 lm/W | 700mA | - | 170° | - | 50.00mm Dia | 2.80mm | 40.00mm Dia | Flat |
|
SML-LX5026UWC-WB6LED COB COOL WHT ROUND 6500K |
1,233 |
|
Datasheet | - | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Round | 560lm (Typ) | 660mA | 25°C | 10.2V | 83 lm/W | 700mA | - | 170° | - | 50.00mm Dia | 2.80mm | 40.00mm Dia | Flat |
