LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8T101560USLED ENG LT-Q562A LNR STRP 4000K |
4,097 |
|
Datasheet | LT-Q562A | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | 2000lm (Typ) | 450mA | 40°C | 21.9V | 203 lm/W | - | 80 | - | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SPHWHAHDNC27YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
2,535 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1322lm (Typ) | 270mA | 85°C | 33.7V | 145 lm/W | 540mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNE25YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
2,313 |
|
Datasheet | COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2399lm (Typ) | 450mA | 85°C | 34V | 157 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDND25YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
4,570 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2056lm (Typ) | 360mA | 85°C | 33.7V | 170 lm/W | 720mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNE25YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
1,558 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2669lm (Typ) | 450mA | 85°C | 33.7V | 176 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
SI-B8R07128SWWLED MOD LT-S282F LNR STRP 5000K |
2,683 |
|
Datasheet | LT-S282F | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1140lm (Typ) | 800mA | 50°C | 8.8V | 162 lm/W | 1.44A | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|

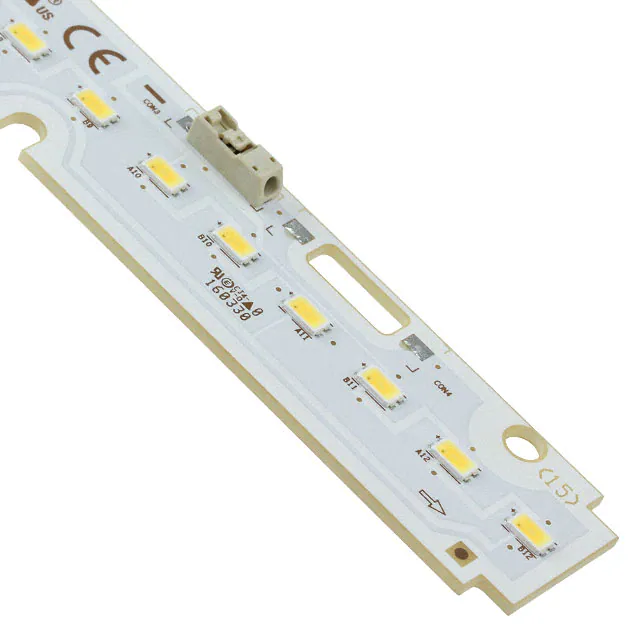

SI-B8R07128HWWLED MOD LT-S282H LNR STRP 5000K |
4,531 |
|
Datasheet | LT-S282H | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1140lm (Typ) | 300mA | 50°C | 23.4V | 162 lm/W | 540mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|

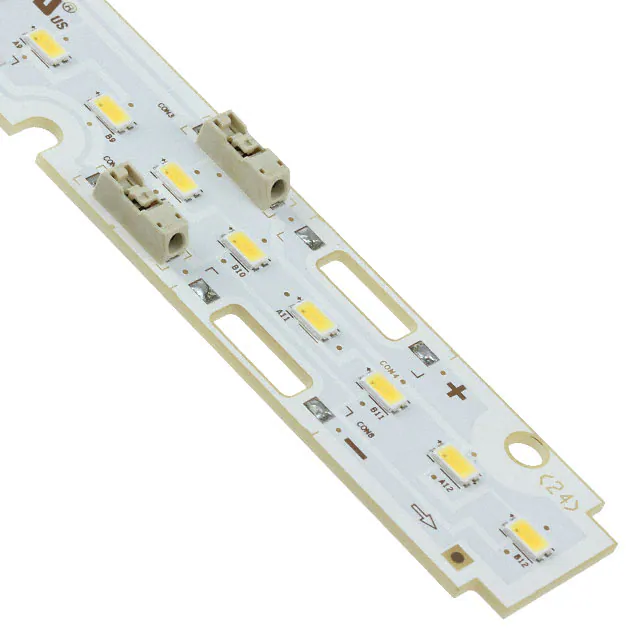

SI-B8V07128LWWLED MOD LT-S282L LNR STRP 3000K |
4,531 |
|
Datasheet | LT-S282L | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 200mA | 50°C | 35.2V | 153 lm/W | 360mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8T07128HWWLED MOD LT-S282H LNR STRP 4000K |
2,384 |
|
Datasheet | LT-S282H | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1120lm (Typ) | 300mA | 50°C | 23.4V | 160 lm/W | 540mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SPHWHAHDNH25YZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
1,188 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5227lm (Typ) | 900mA | 85°C | 33.6V | 173 lm/W | 2.3A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
