LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-N8V1712B0WWLED MOD RND-050D WHT RND 3000K |
1,013 |
|
- |
Round-050D | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | 2070lm (Typ) | 700mA | 25°C | 23.7V | 125 lm/W | 700mA | 80 | 115° | - | 50.00mm Dia | 3.70mm | - | Flat |
|
SI-N8W1113B1USLED MOD ACOM DLE WHT SQU 2700K |
3,074 |
|
Datasheet | ACOM DLE | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Square | 1140lm (Typ) | - | 25°C | 120VAC | 100 lm/W | - | 80 | 115° | - | 55.00mm L x 55.00mm W | 12.50mm | - | Flat |
|
SI-N8W1123B1USLED MOD ACOM DLE WHT SQU 2700K |
3,332 |
|
Datasheet | ACOM DLE | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Square | 1130lm (Typ) | - | 25°C | 120VAC | 100 lm/W | - | 80 | 115° | - | 55.00mm L x 55.00mm W | 12.50mm | - | Flat |
|
SL-B8U7NK0L2WWLED MOD LT-F564A LNR STRP 3500K |
2,440 |
|
Datasheet | LT-F564A | Tray | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Linear Light Strip | 8810lm (Typ) | 1.5A | 25°C | 49.6V | 118 lm/W | - | 80 | - | - | 558.80mm L x 40.00mm W | 5.90mm | - | Flat |
|
SL-P8V2V27MBWWLED MOD E-TYPE GEN2 RECT 3000K |
1,202 |
|
- |
E-Type Gen2 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 2300lm (Typ) | 700mA | - | 30V | 100 lm/W | 1A | 80 | - | With Connector | - | - | - | - |
|

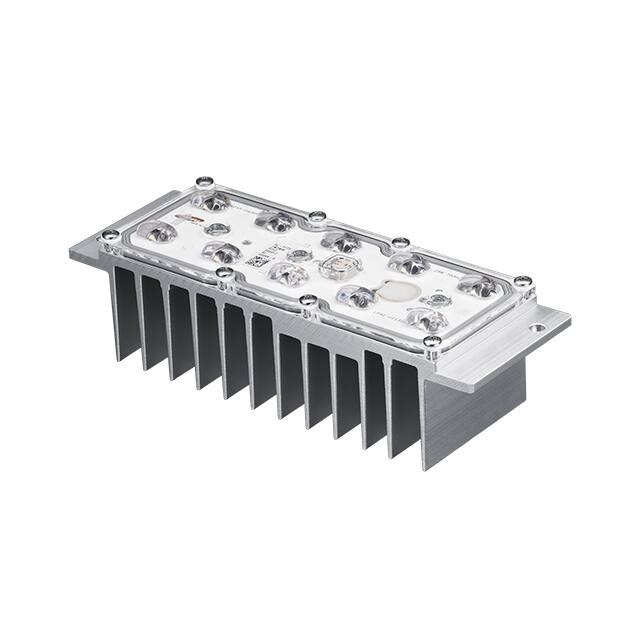

SL-PGR2W51SBGLLED MOD T-TYPE GEN2 RECT 5000K |
1,689 |
|
Datasheet | T-Type Gen2 | Tray | Active | LED Module | White, Cool | 5000K | - | Rectangle | 2300lm (Typ) | 700mA | 58°C | 30V | 119 lm/W | 1A | 76 | - | - | 150.00mm L x 65.00mm W | 43.40mm | - | Domed |
|
|
SL-PGR2W57SBGLLED MOD T-TYPE GEN2 RECT 5000K |
3,842 |
|
Datasheet | T-Type Gen2 | Tray | Discontinued at Digi-Key | LED Module | White, Cool | 5000K | - | Rectangle | 2300lm (Typ) | 700mA | 58°C | 30V | 119 lm/W | 1A | 76 | - | - | 150.00mm L x 65.00mm W | 43.20mm | - | Domed |
|
|
SPHCW1HDN825YHRTEDLED COB LC006B COOL WHT SQ 5000K |
1,144 |
|
Datasheet | LC006B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 7-Step MacAdam Ellipse | - | Square | 907lm (Typ) | 180mA | 25°C | 35.5V | 142 lm/W | 330mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.60mm | 8.00mm Dia | Flat |
|
|
SPHCW1HDN945YHR3KGLED COB LC008B COOL WHT SQ 5000K |
1,192 |
|
Datasheet | LC008B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1268lm (1185lm ~ 1351lm) | 240mA | 25°C | 36.5V | 145 lm/W | 430mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 8.00mm Dia | Flat |
|
|
SPHCW1HDN945YHRTKGLED COB LC008B COOL WH SQ 5000K |
1,529 |
|
Datasheet | LC008B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1268lm (1185lm ~ 1351lm) | 240mA | 25°C | 36.5V | 145 lm/W | 430mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 8.00mm Dia | Flat |
