LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWW1HDNE28YHU33MLED COB LC040B WM WHT SQ 3500K |
2,805 |
|
- |
LC040B | Box | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 4445lm (Typ) | 1.08A | 25°C | 35.5V | 116 lm/W | - | 95 | - | - | - | - | 17.00mm Dia | - |
|
|
SPHWW1HDNE28YHV23MLED COB LC040B WARM WHT SQ 3000K |
2,606 |
|
- |
LC040B | Box | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3888lm (Typ) | 1.08A | 25°C | 35.5V | 101 lm/W | 1.9A | 95 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNE28YHV33MLED COB LC040B WM WHT SQ 3000K |
3,617 |
|
- |
LC040B | Box | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4316lm (Typ) | 1.08A | 25°C | 35.5V | 113 lm/W | - | 95 | - | - | - | - | 17.00mm Dia | - |
|
|
SPHWW1HDNE28YHW23MLED COB LC040B WARM WHT SQ 2700K |
1,265 |
|
- |
LC040B | Box | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3771lm (Typ) | 1.08A | 25°C | 35.5V | 98 lm/W | 1.9A | 95 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNE28YHW33MLED COB LC040B WM WHT SQ 2700K |
2,475 |
|
- |
LC040B | Box | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4057lm (Typ) | 1.08A | 25°C | 35.5V | 106 lm/W | - | 95 | - | - | - | - | 17.00mm Dia | - |
|
STOIMW750558I2SE31LED MOD OUTD ARR WHT RECT 5000K |
3,579 |
|
- |
Outdoor Array | Box | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 4500lm (Typ) | 900mA | - | 58V | 86 lm/W | 945mA | 70 | - | - | 162.00mm L x 164.00mm W | 45.60mm | - | - |
|
|
STOPMW830250V2SE31LED MOD WARM WHT RECT 3000K |
1,472 |
|
- |
- | Box | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 1450lm (Typ) | 700mA | 65°C | 30V | 69 lm/W | 1A | 80 | - | - | 125.00mm L x 50.00mm W | 41.60mm | - | - |
|
|
STOPMW840250V2SE31LED MOD NEUT WHT RECT 4000K |
3,622 |
|
- |
- | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 1500lm (Typ) | 700mA | 65°C | 30.5V | 70 lm/W | 1A | 80 | - | - | 125.00mm L x 50.00mm W | 41.60mm | - | - |
|

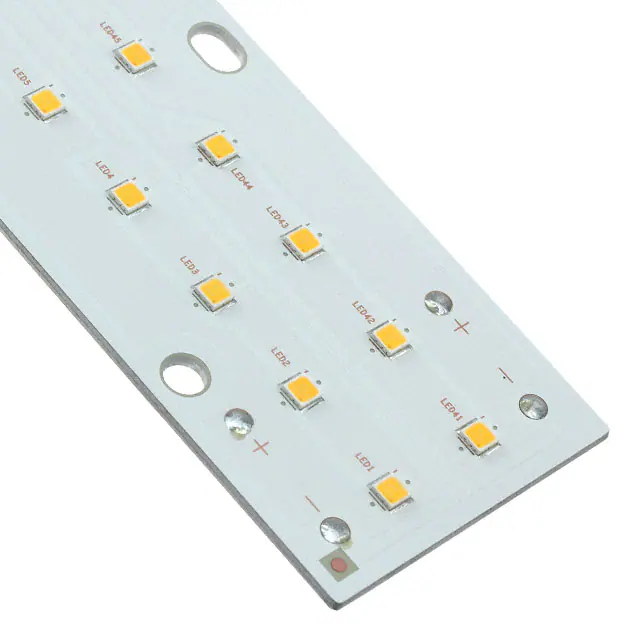

SL-B8T7NK0L2WWLED MOD LT-F564A LNR STRP 4000K |
4,080 |
|
Datasheet | LT-F564A | Bulk | Obsolete | LED Module | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 8850lm (Typ) | 1.5A | 25°C | 49.6V | 119 lm/W | - | 80 | - | - | 558.80mm L x 40.00mm W | 5.90mm | - | Flat |
|
|
SL-B8R7NK0L2WWLED MOD LT-F564A LNR STRP 5000K |
4,509 |
|
Datasheet | LT-F564A | Bulk | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 9050lm (Typ) | 1.5A | 25°C | 49.6V | 122 lm/W | - | 80 | - | - | 558.80mm L x 40.00mm W | 5.90mm | - | Flat |
