LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWW1HDNE27YHU24KLED COB LC040B GEN2 WHT SQ 3500K |
2,794 |
|
- |
LC040B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4735lm (4336lm ~ 5133lm) | 1.08A | 25°C | 35.5V | 124 lm/W | 1.9A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNE27YHV24KLED COB LC040B GEN2 WHT SQ 3000K |
1,175 |
|
- |
LC040B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4603lm (4210lm ~ 4996lm) | 1.08A | 25°C | 35.5V | 120 lm/W | 1.9A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNE27YHW24KLED COB LC040B GEN2 WHT SQ 2700K |
4,493 |
|
- |
LC040B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4516lm (4126lm ~ 4906lm) | 1.08A | 25°C | 35.5V | 118 lm/W | 1.9A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|

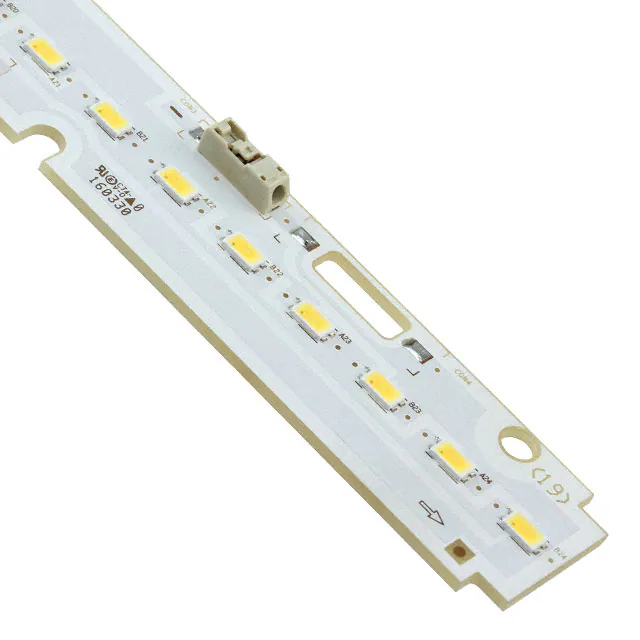

SI-B8R14156HWWLED MOD LT-S562H LNR STRP 5000K |
2,161 |
|
Datasheet | LT-S562H | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 300mA | 50°C | 46.9V | 163 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
SI-B8R14156SWWLED MOD LT-S562F LNR STRP 5000K |
3,784 |
|
Datasheet | LT-S562F | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 800mA | 50°C | 17.6V | 163 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8T14156HWWLED MOD LT-S562H LNR STRP 4000K |
3,435 |
|
Datasheet | LT-S562H | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2250lm (Typ) | 300mA | 50°C | 46.9V | 160 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8U14156HWWLED MOD LT-S562H LNR STRP 3500K |
4,824 |
|
Datasheet | LT-S562H | Tray | Not For New Designs | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2210lm (Typ) | 300mA | 50°C | 46.9V | 157 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8U14156SWWLED MOD LT-S562F LNR STRP 3500K |
4,815 |
|
Datasheet | LT-S562F | Tray | Not For New Designs | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2210lm (Typ) | 800mA | 50°C | 17.6V | 157 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8V14156SWWLED MOD LT-S562F LNR STRP 3000K |
4,606 |
|
Datasheet | LT-S562F | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 800mA | 50°C | 17.6V | 155 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SL-B7T5N90L2WWLinear IC's |
1,563 |
|
Datasheet | HILOM SC16 | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 7200lm (6480lm ~ 8110lm) | 2.1A | 70°C | 24.9V | 138 lm/W | 2.31A | 70 | 120° | - | 73.00mm L x 73.00mm W | 5.30mm | - | Flat |
