LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8V521B20WWLED MOD F-SER GEN3 LNR 3000K |
380 |
|
Datasheet | F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 8670lm (Typ) | 1.12A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

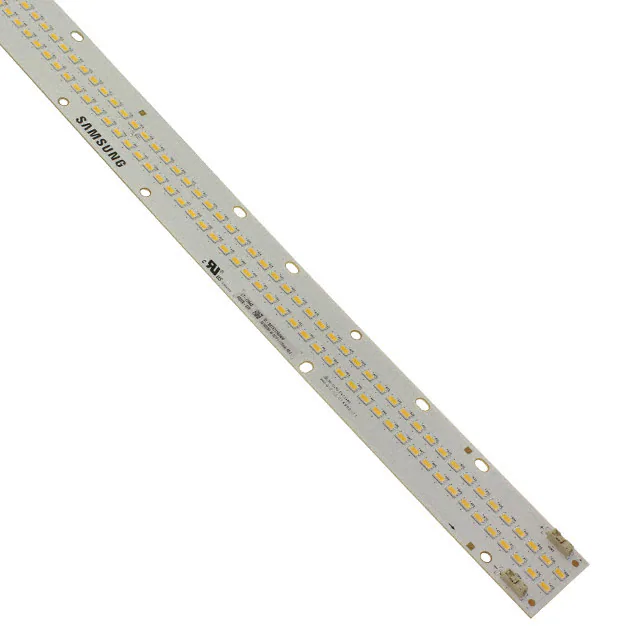

SI-B8V521560WWLED MOD F-SER GEN3 LNR 3000K |
428 |
|
Datasheet | F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 8670lm (Typ) | 1.12A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 559.70mm L x 39.80mm W | 5.20mm | - | Flat |
|

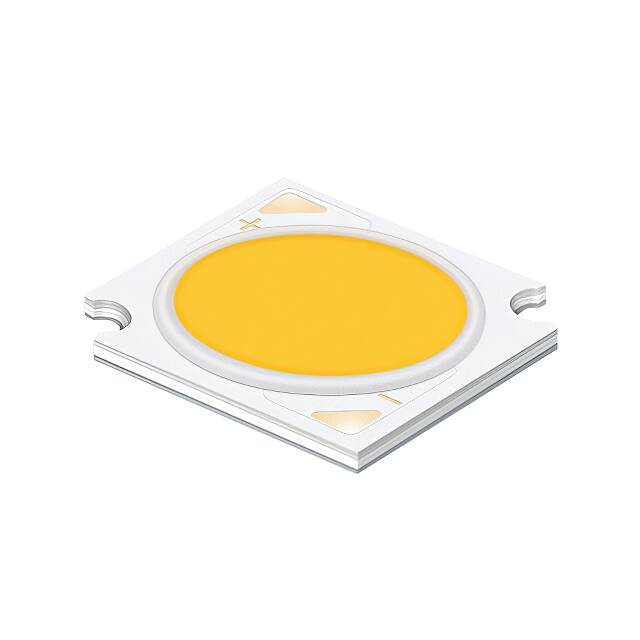

SPHWHAHDNA25YZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
358 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 544lm (Typ) | 90mA | 85°C | 33.6V | 180 lm/W | 230mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
SPHWHAHDNA27WJV3DBLED COB D GEN2 WM WHT SQ 3000K |
177 |
|
Datasheet | COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 17V | 158 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA27YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
363 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 443lm (Typ) | 90mA | 85°C | 33.6V | 146 lm/W | 230mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
280 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 796lm (Typ) | 180mA | 85°C | 33.7V | 130 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
SPHWHAHDNB25YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
508 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 983lm (Typ) | 180mA | 85°C | 33.7V | 161 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNF25YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
144 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3044lm (Typ) | 540mA | 85°C | 33.7V | 167 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF25YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
250 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3218lm (Typ) | 540mA | 85°C | 33.7V | 177 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
SPHWHAHDND25YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
347 |
|
Datasheet | COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1857lm (Typ) | 360mA | 85°C | 34V | 152 lm/W | 720mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
