Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y101132C102RQSWITCH KEYLOCK 2POS SPDT 4A 125V |
4,541 |
|
Datasheet | Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
|
Y100AA2C203NGSWITCH KEYLOCK |
2,767 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Y141732C202NBSWITCH KEYLK 3POS SP3T 0.4VA 20V |
3,214 |
|
Datasheet | Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
LK57NB126N3SWITCH KEYLOCK 3POS SP3T 4A 125V |
2,767 |
|
Datasheet | LK | Tray | Active | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
Y101132CF03NQSWITCH KEYLOCK |
3,194 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y1011U2CF03NQSWITCH KEYLOCK |
2,668 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CKM13ETW01-011SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,760 |
|
Datasheet | CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM13EFW01-006SWITCH KEYLOCK 3POS SPDT 3A 250V |
4,796 |
|
Datasheet | CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

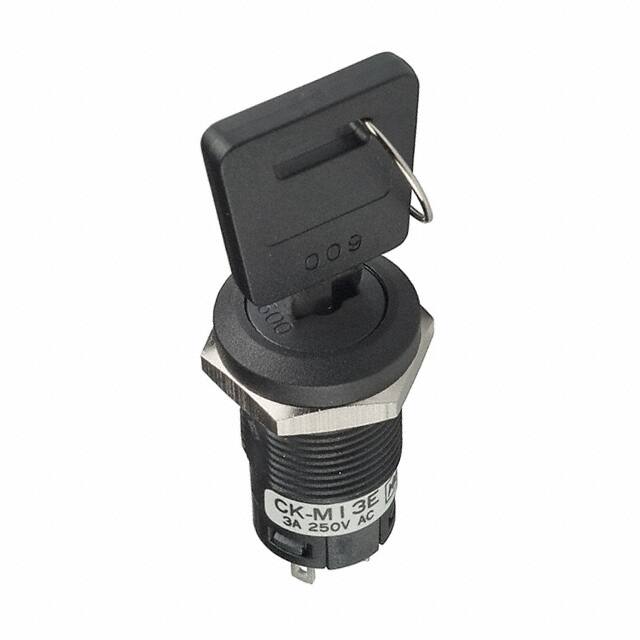

CKM13EFW01-009SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,701 |
|
Datasheet | CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

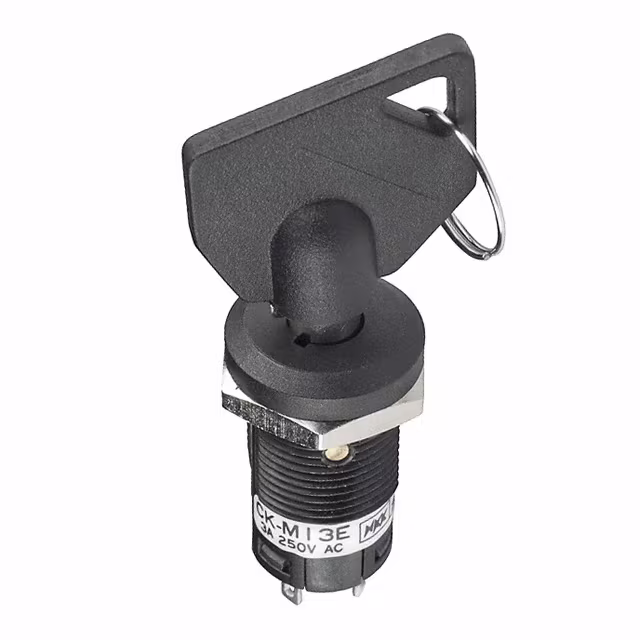

CKM13ETW01-003SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,117 |
|
Datasheet | CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM13ETW01-002SWITCH KEYLOCK 3POS SPDT 3A 250V |
1,481 |
|
Datasheet | CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM13ETW01-014SWITCH KEYLOCK 3POS SPDT 3A 250V |
4,058 |
|
Datasheet | CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM13ETW01-020SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,844 |
|
Datasheet | CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y201132C203NBSWITCH KEYLK 2POS DPDT 0.4VA 20V |
1,049 |
|
Datasheet | Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y2011U2C203NBSWITCH KEYLK 2POS DPDT 0.4VA 20V |
3,711 |
|
Datasheet | Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
Y1011U2C803NQESWITCH KEYLOCK 2POS SPDT 4A 125V |
2,408 |
|
Datasheet | Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
|
Y2011U2R203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
3,911 |
|
Datasheet | Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
|
PM061UEBMWCKQ22SWITCH KEYLOCK 2POS SPST 4A 125V |
3,329 |
|
Datasheet | PM | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Circular - 11.81mm Dia | - | - |
|
|
CKM13ETW01-012SWITCH KEYLOCK 3POS SPDT 3A 250V |
3,913 |
|
Datasheet | CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM13ETW01-018SWITCH KEYLOCK 3POS SPDT 3A 250V |
4,577 |
|
Datasheet | CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
