Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KO105A1001SWITCH KEYLOCK 2POS SPST 1A 125V |
1,302 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
KO113A10001SWITCH KEYLOCK 2POS SPST 4A 125V |
718 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO126A1001SWITCH KEYLOCK 2POS SPST 1A 125V |
381 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
KO117A125SWITCH KEYLOCK 2POS SPST 4A 125V |
185 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO128A2007SWITCH KEYLOCK 2POS SPST 4A 125V |
846 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Screw Terminal | Circular - 19.00mm Dia | - | - |
|
KO130RA126SWITCH KEYLOCK 2POS SPDT 4A 125V |
504 |
|
Datasheet | KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO130QA126SWITCH KEYLOCK 2POS DPDT 4A 125V |
370 |
|
Datasheet | KO | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 5 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO130BA126SWITCH KEYLOCK 3POS DP3T 4A 125V |
223 |
|
Datasheet | KO | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 3 only | 45° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO129CA126SWITCH KEYLOCK 3POS SP3T 4A 125V |
292 |
|
Datasheet | KO | Bulk | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 3 only | 45° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
Y208122A203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
163 |
|
Datasheet | Y | Tray | Active | DPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

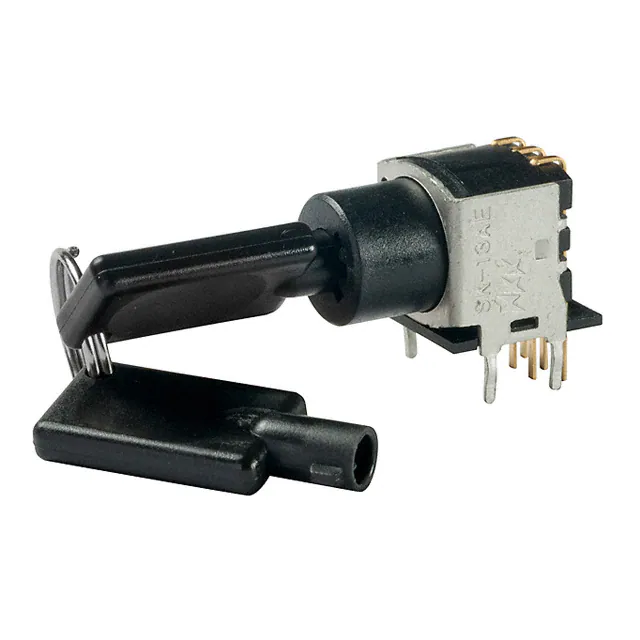

SK13AEG30SWITCH KEYLK 3POS SP3T 0.4VA 28V |
2,957 |
|
Datasheet | SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Tin | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C |
|
LK6NGB126M3SWITCH KEYLOCK 2POS SPDT 4A 125V |
213 |
|
Datasheet | LK | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
Y101132C201NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
125 |
|
Datasheet | Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

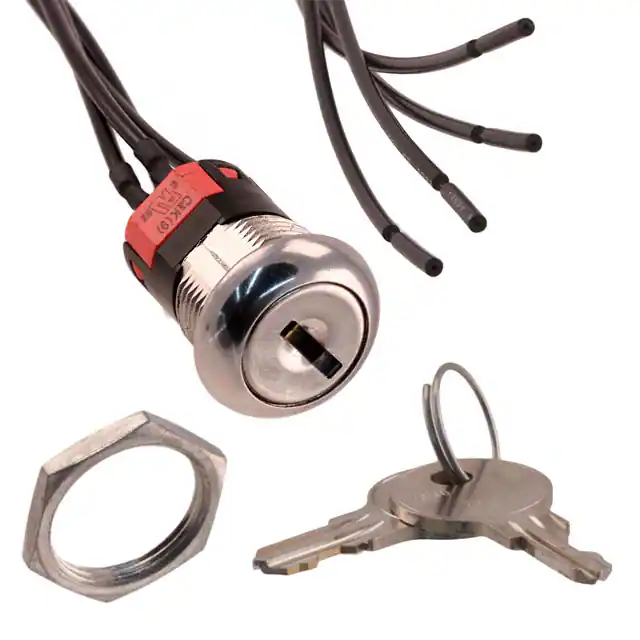

Y1417U2C2WCNQESWITCH KEYLOCK 3POS SP3T 4A 125V |
1,868 |
|
Datasheet | Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
LK6NNB126N3SWITCH KEYLOCK 2POS SPDT 4A 125V |
175 |
|
Datasheet | LK | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK68NB126N3SWITCH KEYLOCK 2POS DPDT 4A 125V |
734 |
|
Datasheet | LK | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|

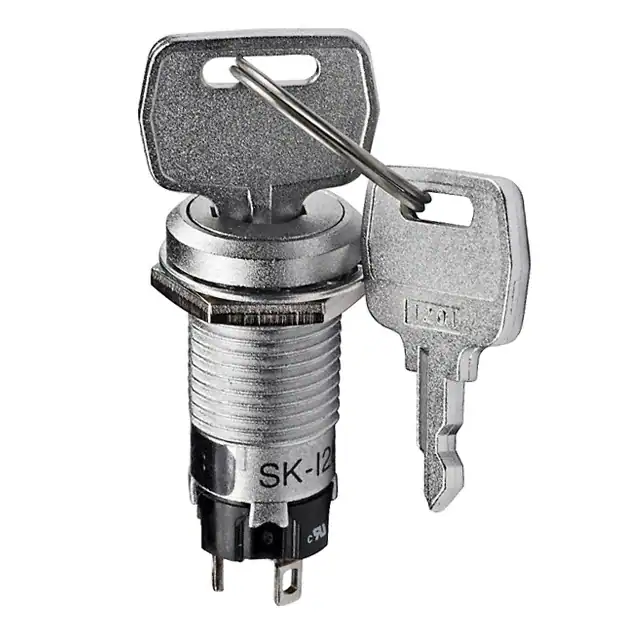

SK12BAW01/C-ULSWITCH KEYLOCK 2POS SPDT 3A 125V |
1,374 |
|
Datasheet | SK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK12AG13SWITCH KEYLK 2POS SPDT 0.4VA 28V |
251 |
|
Datasheet | SK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
Y108122A203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
662 |
|
Datasheet | Y | Tray | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
CKL12BFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
169 |
|
Datasheet | CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
