Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM232SWITCH KEYLOCK 3POS 6A 120V |
1,399 |
|
Datasheet | Reliant'22 | Bulk | Obsolete | - | 3 | On-On-On | Not Specified | 6A (AC) | 120 V | - | Flat Key | All | 60° | Silver (Ag) | - | Panel Mount | - | Circular - 22.22mm Dia | IP65, Oil-Resistant | - |
|

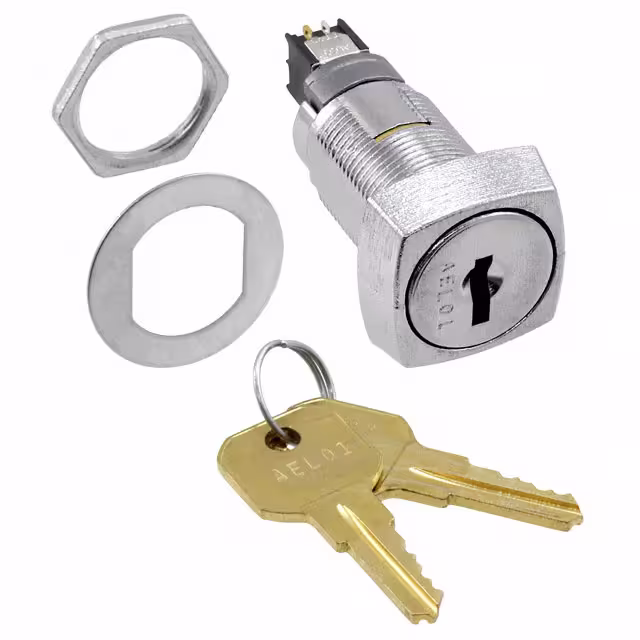

SKT331AEL01SWITCH KEYLOCK 2POS DPDT 3A 125V |
4,595 |
|
Datasheet | SKT | Bulk | Obsolete | DPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 80° | - | Silver | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SKT332AEL01SWITCH KEYLOCK 2POS DPDT 3A 125V |
2,310 |
|
Datasheet | SKT | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC/DC) | 125 V | 28 V | Flat Key | All | 80° | - | Silver | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SWK123F315SWITCH KEYLOCK 2POS SPST 5A 115V |
1,457 |
|
Datasheet | SWK12 | Bulk | Active | SPST | 2 | On-Off | Non-Shorting (BBM) | 5A (AC), 15A (DC) | 115 V | 24 V | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 19.20mm Dia | - | -30°C ~ 85°C |
|
|
SKT132GAEL01SWITCH KEYLK 2POS SPDT 0.4VA 20V |
2,294 |
|
Datasheet | SKT | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 80° | - | Gold | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SKT131GAEL01SWITCH KEYLK 2POS SPDT 0.4VA 20V |
2,100 |
|
Datasheet | SKT | Bulk | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 80° | - | Gold | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
164J0A11SWITCH KEYLOCK 2POS SPDT 5A 250V |
2,618 |
|
Datasheet | Command | Bulk | Active | SPDT | 2 | On-Mom | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J3C22SWITCH KEYLOCK 3POS DPDT 5A 250V |
1,789 |
|
Datasheet | Command | Bulk | Active | DPDT | 3 | On-On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J2A22SWITCH KEYLOCK 2POS DPDT 5A 250V |
4,091 |
|
Datasheet | Command | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J2B22SWITCH KEYLOCK 2POS DPDT 5A 250V |
2,090 |
|
Datasheet | Command | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
