Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

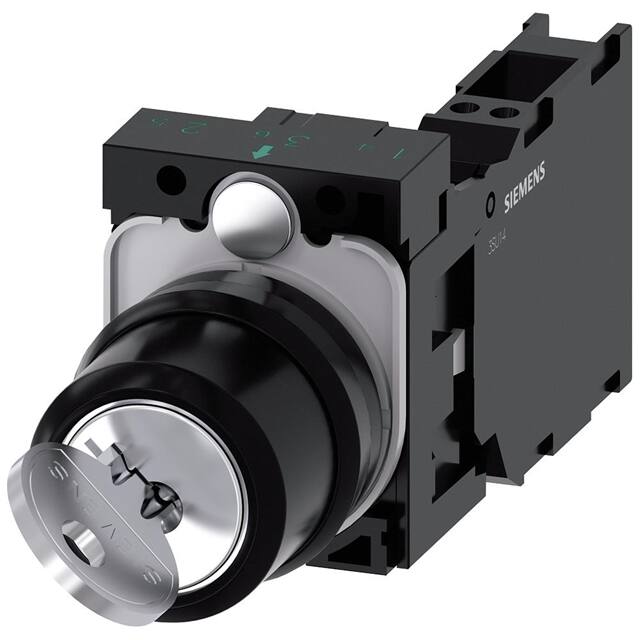

3SU11304BF113FA0SWITCH KEYLCK 2POS DPST 10A 500V |
3,665 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Spring Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
A6X30142568SWITCH KEYLCK 2POS SPST 10A 500V |
2,898 |
|
Datasheet | 3SU1 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Spring Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
52SC6CVA1SWITCH KEYLCK 3POS DPST 60A 110V |
2,494 |
|
Datasheet | - | Box | Active | DPST-NO/NC | 3 | On-Mom, Off-Mom | Not Specified | 60A | 110 V | - | Flat Key | Center | - | - | - | Panel Mount | Screw Terminal | - | - | -35°C ~ 70°C |
|
A6X30142565SWITCH KEYLCK 2POS DPST 10A 500V |
1,407 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
A6X30142563SWITCH KEYLCK 2POS DPST 10A 500V |
1,746 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
A6X30142562SWITCH KEYLCK 2POS DPST 10A 500V |
2,934 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
A6X30142564SWITCH KEYLCK 2POS DPST 10A 500V |
4,434 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
A6X30142561SWITCH KEYLCK 2POS DPST 10A 500V |
4,369 |
|
Datasheet | 3SU1 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
52SC6CEK2SWITCH KEYLCK 3POS DPST 60A 110V |
4,034 |
|
Datasheet | - | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 60A | 110 V | - | Flat Key | All | - | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | - | -35°C ~ 70°C |
|
|
52SC6AEA2SWITCH KEYLCK 2POS 4PST 60A 110V |
4,074 |
|
Datasheet | - | Box | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 60A | 110 V | - | Flat Key | All | - | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | - | -35°C ~ 70°C |
