Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB4BG61SWITCH KEYLOCK 2POS SPST 6A 120V |
4,806 |
|
Datasheet | Altivar | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
XB7NG21SWITCH KEY 2POS SPST 600MA 120V |
3,753 |
|
Datasheet | Harmony XB7 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 600mA (AC), 220mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|

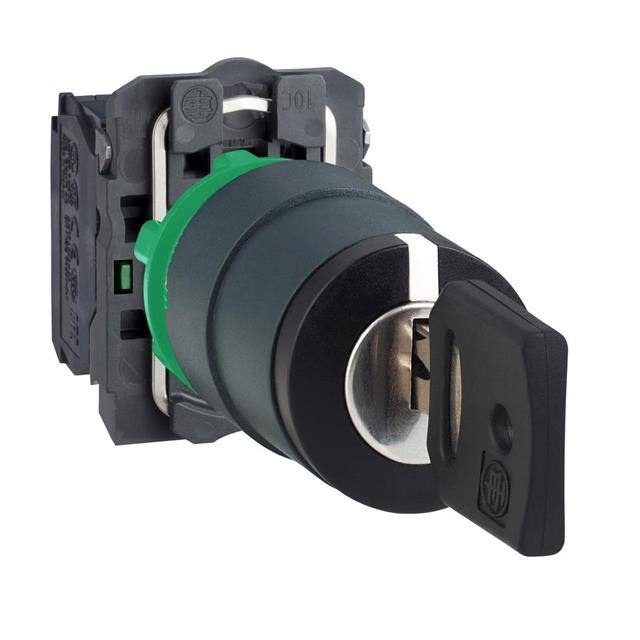

XB5AG03SWITCH KEYLOCK 3POS DPST 6A 120V |
2,861 |
|
Datasheet | Harmony XB5 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | All | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|

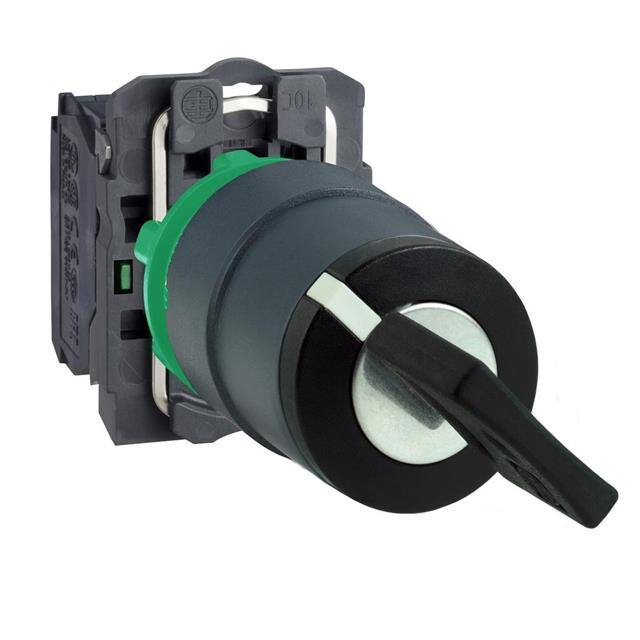

XB5AG41SWITCH KEYLOCK 2POS SPST 6A 120V |
2,712 |
|
Datasheet | Harmony XB5 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | All | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
XB4BG21SWITCH KEYLOCK 2POS SPST 6A 120V |
3,996 |
|
Datasheet | Harmony XB4 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB5AG21SWITCH KEYLOCK 2POS SPST 6A 120V |
4,056 |
|
Datasheet | Harmony XB5 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB4BG41SWITCH KEYLOCK 2POS SPST 6A 120V |
1,204 |
|
Datasheet | Harmony XB4 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | All | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
XB4BG03SWITCH KEYLOCK 3POS DPST 6A 120V |
1,529 |
|
Datasheet | Harmony XB4 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB4BG33SWITCH KEYLOCK 3POS DPST 6A 120V |
3,033 |
|
Datasheet | Harmony XB4 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Center | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB5AG33SWITCH KEYLOCK 3POS DPST 6A 120V |
1,580 |
|
Datasheet | Harmony XB5 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
