Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

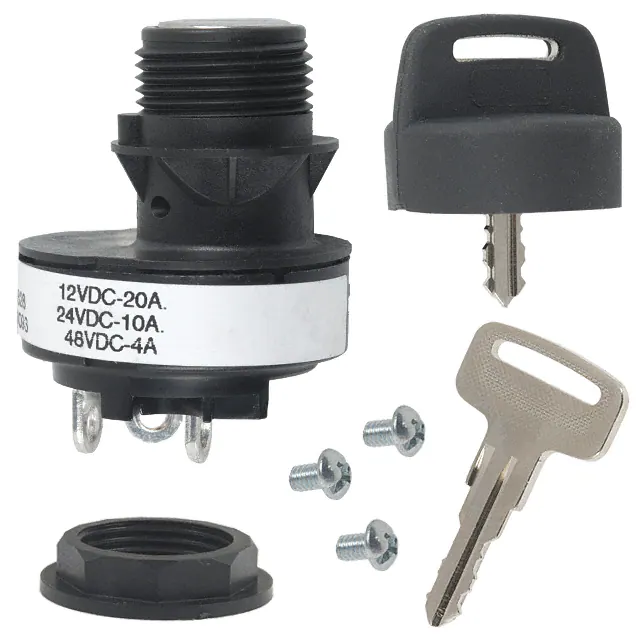

84828-07SWITCH KEYLOCK 2POS SPST 20A 12V |
191 |
|
Datasheet | - | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
84829-07SWITCH KEYLOCK 3POS SPDT 20A 12V |
546 |
|
Datasheet | - | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
AML27ABK2AA21BASWITCH KEYLOCK 2POS SPDT 3A 125V |
1,246 |
|
Datasheet | AML27 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Flat Key | Center | 90° | - | Silver | Panel Mount, Snap-In | Solder, Quick Connect - 0.110" (2.8mm) | Square - 19.05mm² | - | - |
|
84825-01SWITCH KEYLOCK 2POS SPST 20A 12V |
687 |
|
Datasheet | - | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
84830-07SWITCH KEYLOCK 3POS DPDT 20A 12V |
257 |
|
Datasheet | - | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
|
84829-03SWITCH KEYLOCK 3POS SPDT 20A 12V |
147 |
|
Datasheet | - | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
|
84828-08SWITCH KEYLOCK 2POS SPST 20A 12V |
437 |
|
Datasheet | - | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
89697-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
133 |
|
Datasheet | - | Bulk | Active | SPDT | 3 | Off-On-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
89165-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
140 |
|
Datasheet | - | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|

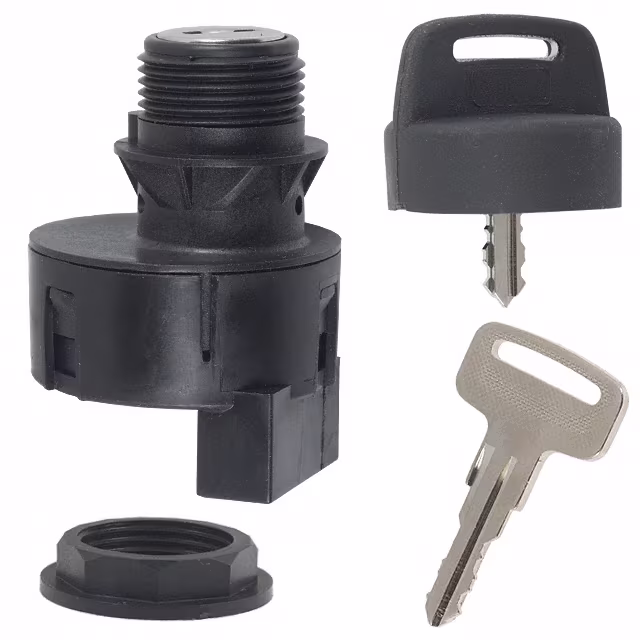

84826-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
288 |
|
Datasheet | - | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
