Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

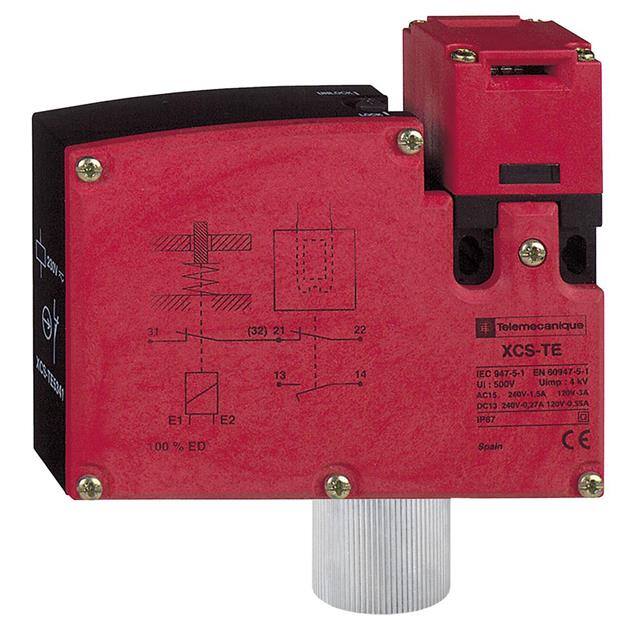

XCSTE7333INTERLOCK SOLENOID LOCKING DPST |
3,345 |
|
Datasheet | XCSTE | Box | Active | Solenoid Locking | DPST-NC | 6A (AC) | 120VAC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | - |
|
XCSTE5331INTERLOCK KEY LOCKING DPST |
1,293 |
|
Datasheet | XCSTE | Box | Active | Key Locking | DPST-NO/NC | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSTE5511INTERLOCK KEY LOCKING DPST |
4,568 |
|
Datasheet | XCSTE | Box | Active | Key Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSMP70L10INTERLOCK KEY LOCKING 3PST |
4,245 |
|
Datasheet | XCSMP | Box | Active | Key Locking | 3PST-2NC/1NO | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, CUL, UL |
|
XCSLF2727313INTERLOCK SOLENOID LOCKING DPST |
1,662 |
|
Datasheet | XCSLF | Box | Active | Solenoid Locking | DPST-NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 60°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, TUV, UL |
|
XCSLE3737312INTERLOCK SOLENOID LOCKING 3PST |
4,464 |
|
Datasheet | XCSLE | Box | Active | Solenoid Locking | 3PST-1NO/2NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | 143kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, TUV, UL |
|
|
XCSLF2727312INTERLOCK KEY LOCKING DPST |
4,332 |
|
Datasheet | XCSLF | Box | Active | Key Locking | DPST-NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSLF2525312INTERLOCK KEY LOCKING DPST |
3,270 |
|
Datasheet | XCSLF | Box | Active | Key Locking | DPST-NO/NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66 - Dust Tight, Waterproof | CSA, TUV, UL |
|
|
XCSLE3838312INTERLOCK KEY LOCKING 3PST |
2,354 |
|
Datasheet | XCSLE | Box | Active | Key Locking | 3PST-NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSTE5341INTERLOCK KEY LOCKING DPST |
2,680 |
|
Datasheet | XCSTE | Box | Active | Key Locking | DPST-NO/NC | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
