Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VC11RTM2410MSENSOR PROX CAPACITIVE 12MM CYL |
1,042 |
|
Datasheet | VC | Cylinder | Box | Active | Capacitive | 0.472" (12mm) | Relay | 1Hz | Unshielded | Plastic | 24 ~ 230VAC/DC | Cable Leads | -20°C ~ 70°C | IP67 | LED |
|

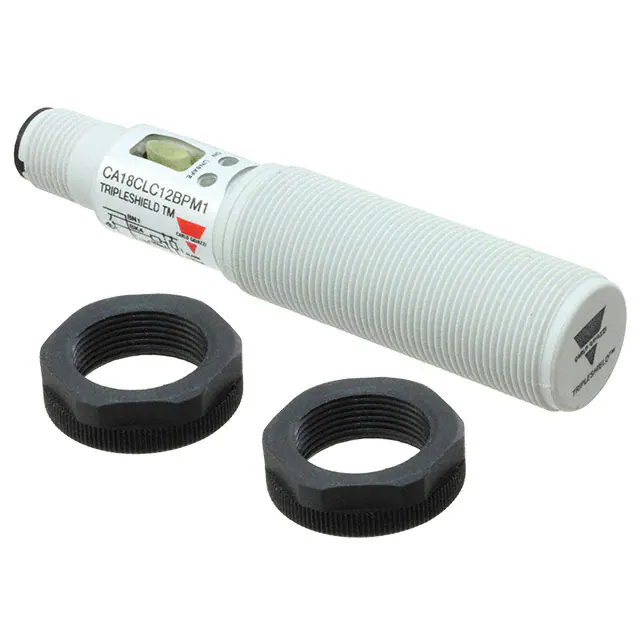

CA18CLC12BPM1SENSOR PROX CAP 12MM IP68 CYLIND |
2,503 |
|
Datasheet | CA | Cylinder, Threaded - M18 | Box | Active | Capacitive | 0.472" (12mm) | NPN/PNP-NC/NO, 3-Wire | 15Hz | Shielded | Plastic | 10V ~ 40V | Connector | -20°C ~ 85°C | IP68 | LED |
|
CA30CLC30BPSENSOR PROX CAP 30MM IP68 CYLIND |
4,311 |
|
Datasheet | CA | Cylinder, Threaded - M30 | Box | Active | Capacitive | 1.181" (30mm) | NPN/PNP-NC/NO, 3-Wire | 15Hz | Shielded | Plastic | 10V ~ 40V | Cable Leads | -20°C ~ 85°C | IP68 | LED |
|
EC3025TBASLSENSOR PROX CAPACITIVE 25MM CYL |
2,087 |
|
Datasheet | EC | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.984" (25mm) | SCR-NC/NO, 2-Wire | 10Hz | Shielded | Stainless Steel | 20 VAC ~ 250 VAC | Cable with Connector | -25°C ~ 80°C | IP67, NEMA 1,3,4,6,13 | LED |
|
EC3025TBAPLSENSOR PROX CAPACITIVE 25MM CYL |
1,444 |
|
Datasheet | EC | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.984" (25mm) | SCR-NC/NO, 2-Wire | 10Hz | Shielded | Plastic | 20 VAC ~ 250 VAC | Cable with Connector | -25°C ~ 80°C | IP67, NEMA 1,3,4,6,13 | LED |
|
CA18CLC12BPSENSOR PROX CAP 12MM IP68 CYLIND |
3,570 |
|
Datasheet | CA | Cylinder, Threaded - M18 | Box | Active | Capacitive | 0.472" (12mm) | NPN/PNP-NC/NO, 3-Wire | 15Hz | Shielded | Plastic | 10V ~ 40V | Cable Leads | -20°C ~ 85°C | IP68 | LED |
|
UA18CAD04NPTISENSOR PROX ULTRASN 50-400MM CYL |
3,917 |
|
Datasheet | UA18 | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 1.969" ~ 15.748" (50mm ~ 400mm) | NPN | 10Hz | Unshielded | Polybutylene Terephthalate (PBT) | 15V ~ 30V | Cable Leads | -20°C ~ 60°C | IP67 | LED |
|

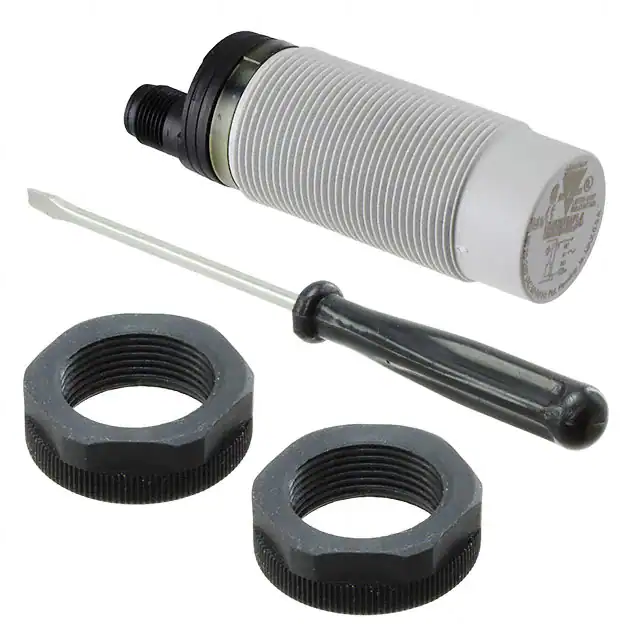

EC3025TBAPL-6SENSOR PROX CAPACITIVE 25MM CYL |
3,192 |
|
Datasheet | EC | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.984" (25mm) | SCR-NC/NO, 2-Wire | 10Hz | Shielded | Plastic | 20 VAC ~ 250 VAC | Connector | -25°C ~ 80°C | IP67, NEMA 1,3,4,6,13 | LED |
|
EC3016TBASLSENSOR PROX CAPACITIVE 16MM CYL |
4,252 |
|
Datasheet | EC | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.630" (16mm) | SCR-NC/NO, 2-Wire | 10Hz | Shielded | Stainless Steel | 20 VAC ~ 250 VAC | Cable with Connector | -25°C ~ 80°C | IP67, NEMA 1,3,4,6,13 | LED |
|
|
UA18CAD22PPTISENSOR PROX ULTRA 200-2200MM CYL |
3,873 |
|
Datasheet | UA18 | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 7.874" ~ 86.614" (200mm ~ 2200mm) | PNP | 1Hz | Unshielded | Polybutylene Terephthalate (PBT) | 15V ~ 30V | Cable Leads | -20°C ~ 60°C | IP67 | LED |
