Pressure Sensors, Transducers - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U5600-00000E-002BAWIRELESS PRESSURE GAUGE 30PSI |
1,287 |
|
Datasheet | - | Cylinder, Threaded | Bulk | Obsolete | Industrial Automation | Absolute | 29.01PSI (200kPa) | Bluetooth | 24 b | ±0.1% | 2.3V ~ 3.6V | Male - 1/4" (6.35mm) BSPT | Threaded | Temperature Compensated | - | 87.02PSI (600kPa) | -20°C ~ 85°C | - |
|
M5151-000005-050PGTRANSDUCER 4-20MA 50PSI |
2,974 |
|
Datasheet | M5100 | Cylinder | Bulk | Obsolete | Industrial Automation | Vented Gauge | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Cable 2' | 100PSI (689.48kPa) | -40°C ~ 125°C | - |
|
U5354-000005-015PGSENSOR |
2,772 |
|
Datasheet | U5300 | Cylinder | Box | Discontinued at Digi-Key | Industrial Automation | Vented Gauge | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±0.1% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 15PSI (103.42kPa) | -40°C ~ 125°C | - |
|
D5154-000002-001BDSENSOR PRESSURE |
3,259 |
|
Datasheet | D51 | Cylinder | Box | Obsolete | Industrial Automation | Differential | 14.5PSI (100kPa) | Analog Current | 4 mA ~ 20 mA | ±0.1% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | - | 43.51PSI (300kPa) | -40°C ~ 125°C | - |
|
U5374-000002-014BASENSOR |
3,303 |
|
Datasheet | U5300 | Cylinder | Box | Obsolete | Industrial Automation | Absolute | 203.05PSI (1400kPa) | Analog Voltage | 0 V ~ 10 V | ±0.1% | 12V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Connector | 609.16PSI (4200kPa) | -40°C ~ 125°C | - |
|
M3031-000005-100PGTRANSDUCER .5-4.5VDC 100# PRES |
4,553 |
|
Datasheet | MSP300 | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 200PSI (1378.95kPa) | -20°C ~ 85°C | - |
|
U5254-000002-014BASENSOR |
4,792 |
|
Datasheet | U5200 | Cylinder | Box | Active | Industrial Automation | Absolute | 203.05PSI (1400kPa) | Analog Current | 4 mA ~ 20 mA | ±0.1% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Connector | 609.16PSI (4200kPa) | -40°C ~ 125°C | - |
|

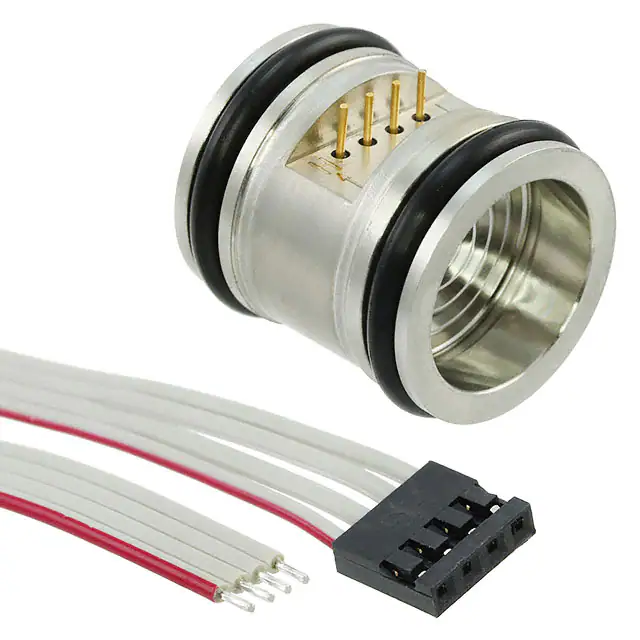

DP86-005DSENSOR PRESSURE |
2,739 |
|
Datasheet | DP86 | Module | Tube | Active | Industrial Automation | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 97.5 mV (5V) | ±0.2% | 5V ~ 9.5V | - | No Port | - | Wire Leads | 15PSI (103.42kPa) | -40°C ~ 125°C | - |
|
D5154-000005-050PDSENSOR PRESSURE |
3,309 |
|
Datasheet | D51 | Cylinder | Box | Active | Industrial Automation | Differential | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±0.1% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 150PSI (1034.21kPa) | -40°C ~ 125°C | - |
|

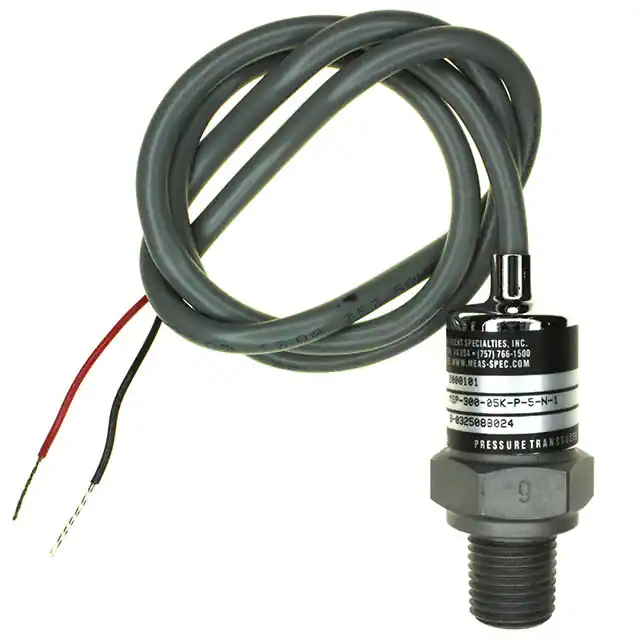

M3051-000005-05KPGTRANSDUCER 4-20MA 5000# PRES |
3,805 |
|
Datasheet | MSP300 | Cylinder, Threaded | Box | Active | Industrial Automation | Vented Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 10000PSI (68947.57kPa) | -20°C ~ 85°C | - |
