Pressure Sensors, Transducers - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLH025BGG08BSENSOR GAUGE 0-25 BAR |
1,709 |
|
Datasheet | MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Vented Gauge | 362.59PSI (2500kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9.5V ~ 30V | Male - M10 x 1 | Threaded | Amplified Output, Temperature Compensated | DIN | 1087.78PSI (7500kPa) | -40°C ~ 125°C | - |
|
|
MLH010BSB06ESENSOR GAUGE 0-10 BAR |
3,197 |
|
Datasheet | MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 7V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Packard Metripak 150 | 435.11PSI (3000kPa) | -40°C ~ 125°C | - |
|

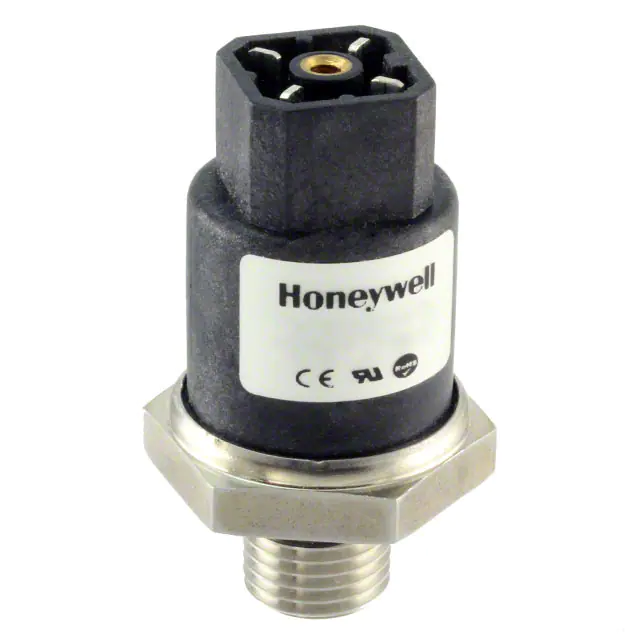

MLH006BGG01BMLH ALL METAL PRESS SENSE -ATF |
1,860 |
|
Datasheet | MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Vented Gauge | 87.02PSI (600kPa) | Analog Current | 4 mA ~ 20 mA | ±05% | 9.5V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | - | 261.07PSI (1800kPa) | -40°C ~ 125°C | - |
|
|
ML500PS2PCSENSOR SEALED GAUGE 0-500 PSI |
2,709 |
|
Datasheet | ML | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | - | 750PSI (5171.07kPa) | -40°C ~ 105°C | - |
|
|
HPR01885PHCSNDAA25PRESSURE SWITCHES-TRANS PRESSURE |
4,491 |
|
Datasheet | HP | Cylinder, Threaded | Bulk | Active | Industrial Automation | Sealed Gauge | 188.5PSI (1299.66kPa) | SPST-NC | - | ±2% | - | Male - 3/4" (19.05mm) UNF | Threaded | - | Connector | 10000PSI (68947.57kPa) | -40°C ~ 120°C | - |
|
|
MLH350BST12EMLH ALL METAL PRESS SENSE -ATF |
2,966 |
|
Datasheet | MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 5076.32PSI (35000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 7V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Amplified Output, Temperature Compensated | - | 10152.64PSI (70000kPa) | -40°C ~ 125°C | - |
|
PX2AN1XX150PAAAXPRESSURE TRANSDUCER PSIA |
2,627 |
|
Datasheet | PX2 | Cylinder | Bulk | Active | Industrial Automation | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 450PSI (3102.64kPa) | -40°C ~ 125°C | - |
|
PX2AF1XX150PAAAXPRESSURE TRANSDUCER PSIA 150PSI |
3,021 |
|
Datasheet | PX2 | Cylinder | Bulk | Active | Industrial Automation | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 450PSI (3102.64kPa) | -40°C ~ 125°C | - |
|
|
PX2AF1XX250PSAAXPRESSURE TRANSDUCER PSIS |
2,223 |
|
Datasheet | PX2 | Cylinder | Bulk | Active | Industrial Automation | Sealed Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 750PSI (5171.07kPa) | -40°C ~ 125°C | - |
|
|
ML100PS1PCSENSOR SEALED GAUGE 0-100 BAR |
1,052 |
|
Datasheet | ML | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | - | 200PSI (1378.95kPa) | -40°C ~ 105°C | - |
