Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3Z-FDN17 2MSENSOR REFLECTIVE 500MM NPN OPEN |
1,553 |
|
Datasheet | E3Z | Bulk | Active | Reflective, Diffuse | 19.685" (500mm) | 10V ~ 30V | 500µs | NPN - Open Collector | Red LED | Wire Leads | IP69K | 78.74" (2m) | Single-Turn | -25°C ~ 55°C |
|
EX-Z13FBSENSOR THROUGH-BEAM 500MM NPN |
343 |
|
Datasheet | EX-Z | Box | Active | Through-Beam | 19.685" (500mm) | 12V ~ 24V | 500µs | NPN - Open Collector/Dark-ON | Red LED | Cable | IP67 | 78.74" (2m) | Fixed | -10°C ~ 55°C |
|
EX-Z11ASENSOR THROUGH-BEAM 50MM NPN |
263 |
|
Datasheet | EX-Z | Box | Active | Through-Beam | 1.969" (50mm) | 12V ~ 24V | 500µs | NPN - Open Collector/Light-ON | Red LED | Cable | IP67 | 78.74" (2m) | Fixed | -10°C ~ 55°C |
|
|
EX-Z11FBSENSOR THROUGH-BEAM 50MM NPN |
1,415 |
|
Datasheet | EX-Z | Box | Active | Through-Beam | 1.969" (50mm) | 12V ~ 24V | 500µs | NPN - Open Collector/Dark-ON | Red LED | Cable | IP67 | 78.74" (2m) | Fixed | -10°C ~ 55°C |
|
Q456EQ5PHOTO SEN EMITTER 60M |
3,366 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 196.85' (60m) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
PBPF215UPLASTIC FIBER, DIFFUSE REFLECTIV |
3,464 |
|
Datasheet | PBPF2 | Box | Active | Reflective, Diffuse | - | - | - | - | - | - | - | - | - | 70°C |
|
EX-13EB-RSENSOR THROUGH-BEAM 500MM NPN |
3,231 |
|
Datasheet | EX-10 | Box | Active | Through-Beam | 19.685" (500mm) | 12V ~ 24V | 500µs | NPN - Open Collector/Dark-ON | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
EX-19ASENSOR THROUGH-BEAM 1M NPN LT ON |
341 |
|
Datasheet | EX-10 | Box | Active | Through-Beam | 39.37" (1m) | 12V ~ 24V | 500µs | NPN - Open Collector/Light-ON | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
EX-19EA-PNSENSOR THROUGH-BEAM 1M PNP |
2,184 |
|
Datasheet | EX-10 | Bulk | Active | Through-Beam | 39.37" (1m) | 12V ~ 24V | 500µs | PNP - Open Collector/Light-ON | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
T8AN6RT8 SERIES: OPPOSED MODERANGE |
4,090 |
|
Datasheet | T8 | Box | Active | Through-Beam | 78.740" (2m) | 10V ~ 30V | 1ms | NPN - Light-ON | Red LED | Cable with Connector | NEMA 6P, IEC IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|

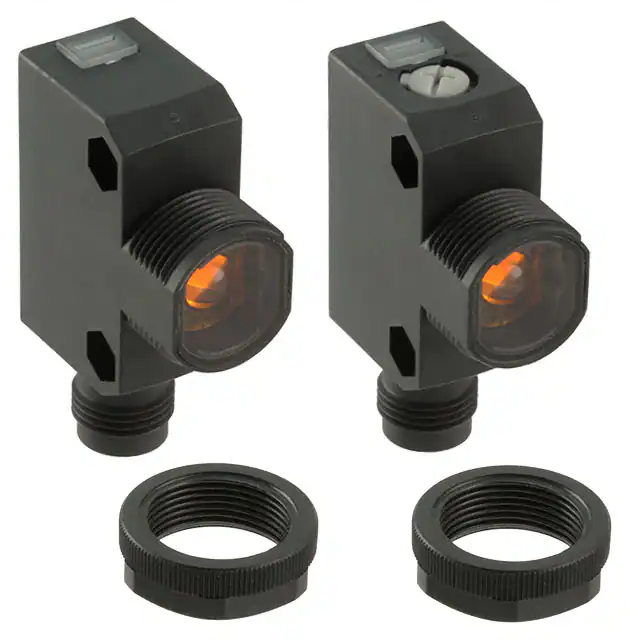

E3Z-FTP12 2MSENSOR THROUGH-BEAM 20M PNP |
261 |
|
Datasheet | E3Z | Bulk | Active | Through-Beam | 787.4" (20m) | 10V ~ 30V | 500µs | PNP - Open Collector | Red LED | Connector, M12, 4POS | IP69K | - | Single-Turn | -25°C ~ 55°C |
|
E3T-FT12SENSOR THROUGH-BEAM 500MM NPN |
2,109 |
|
Datasheet | E3T | Bulk | Active | Through-Beam | 19.685" (500mm) | 12V ~ 24V | 1ms | NPN - Open Collector/Dark-ON | Red (650nm) | Cable | IEC IP67 | - | - | -25°C ~ 55°C |
|

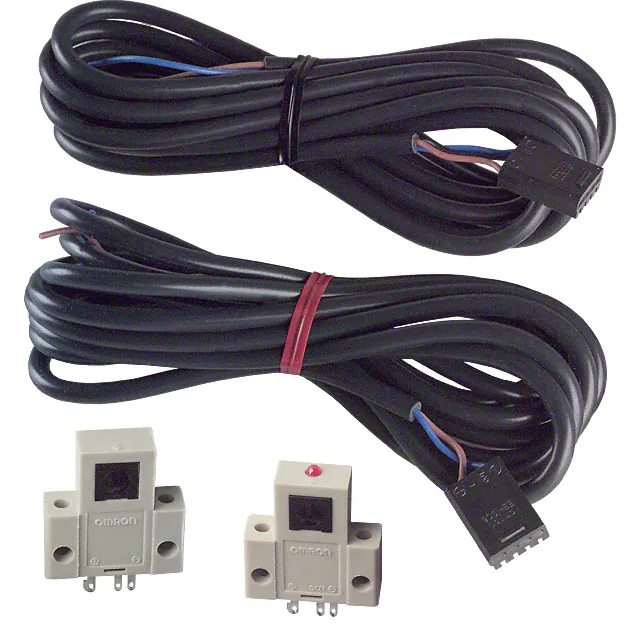

EE-SPW311SENSOR THROUGH-BEAM 1M NPN |
4,312 |
|
Datasheet | - | Bulk | Active | Through-Beam | 39.370" (1m) | 5V ~ 24V | 1ms | NPN - Open Collector/Dark-ON | Infrared (940nm) | Connector | IEC IP60 | - | Adjustable | -10°C ~ 55°C |
|
E3T-FT13SENSOR THROUGH-BEAM 500MM PNP |
157 |
|
Datasheet | E3T | Bulk | Active | Through-Beam | 19.685" (500mm) | 12V ~ 24V | 1ms | PNP - Open Collector/Light-ON | Red (650nm) | Cable | IEC IP67 | - | - | -25°C ~ 55°C |
|
|
EE-SPW411SENSOR THROUGH-BEAM 1M NPN LT ON |
461 |
|
Datasheet | - | Bulk | Active | Through-Beam | 39.370" (1m) | 5V ~ 24V | 1ms | NPN - Open Collector/Light-ON | Infrared (940nm) | Connector | IEC IP60 | - | Adjustable | -10°C ~ 55°C |
|
Q2XANAF150-2MSENSOR, ADJ FLD, 150MM, 10-30VDC |
2,045 |
|
Datasheet | Q2X | Box | Active | Background Suppression | 0.709" ~ 5.906" (18mm ~ 150mm) | 10V ~ 30V | 850µs | NPN - Light-ON | Red (645nm) | Cable | IP67 | 78.74" (2m) | Adjustable, 3-Turn Potentiometer | -25°C ~ 50°C |
|
EX-31A-C5SENSOR THROUGH-BEAM 500MM NPN |
3,609 |
|
Datasheet | EX-30 | Box | Active | Through-Beam | 19.685" (500mm) | 12V ~ 24V | 500µs | NPN - Open Collector/Light-ON | Red LED | Cable | IP67 | 196.85" (5m) | - | -25°C ~ 55°C |
|
QS18VN6XLPQ8QS18 SERIES CLEAR OBJECT SENSOR< |
4,450 |
|
Datasheet | QS18 | Box | Active | Retroreflective, Polarized | 118.110" (3m) | 10V ~ 30V | 400µs | NPN - Dark-ON/Light-ON - Selectable | Red (625nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|
SM312FPHOTO SEN INFRARED NPN/PNP |
2,486 |
|
Datasheet | MINI-BEAM® | Box | Active | Fiber Optic | - | 10V ~ 30V | 1ms | NPN/PNP | Infrared LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM312FP1SM312FP1 MINIBEAM SCANNER ORIGIN |
4,514 |
|
Datasheet | MINI-BEAM® | Box | Active | Fiber Optic | - | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON - Selectable | Red LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
