Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

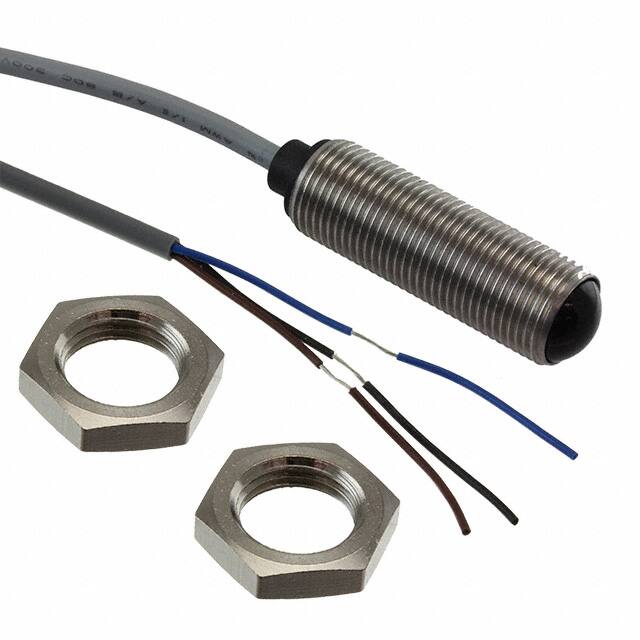

PA12BNT20SENSOR THROUGH-BEAM 20M PHOTO |
4,330 |
|
Datasheet | PA | Box | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | 6.5ms, 3.5ms | - | Infrared (860nm) | Cable | IEC 60529 IP67 | 196.85" (5m) | - | -20°C ~ 50°C |
|
PA18CAR65PAM1SASENSOR RETROREFLECTIVE 6.5M PNP |
2,021 |
|
Datasheet | PA | Box | Active | Retroreflective | 255.906" (6.5m) | 10V ~ 30V | 1ms | PNP | Infrared (850nm) | Connector, M12 | IP67, IP69K | - | Adjustable, 210° Turn Potentiometer | -25°C ~ 60°C |
|
PD30CNP60NASASENSOR REFLECTIVE 6M NPN NO/NC |
3,896 |
|
Datasheet | PD | Box | Active | Reflective, Diffuse | 236.22" (6m) | 10V ~ 30V | 500µs | NPN | Red (625nm) | Cable | IEC 60529 IP67 | 78.74" (2m) | Adjustable, 210° Turn Potentiometer | -25°C ~ 60°C |
|
PD30CNR60NASASENSOR RETROREFLECTIVE 6M NPN |
4,419 |
|
Datasheet | PD | Box | Active | Retroreflective | 236.22" (6m) | 10V ~ 30V | 500µs | NPN | Infrared (850nm) | Cable | IEC 60529 IP67 | 78.74" (2m) | Adjustable, 210° Turn Potentiometer | -25°C ~ 60°C |
|
|
PA18CRP40PAM1SASENSOR RETROREFLECTIVE 4M PNP |
4,781 |
|
Datasheet | PA | Box | Active | Retroreflective | 157.480" (4m) | 10V ~ 30V | 1ms | PNP | Red (625nm) | Connector | IP67, IP69K | - | Adjustable, 210° Turn Potentiometer | -25°C ~ 60°C |
|
PH18CNP50PASASENSOR RETROREFLECTIVE 5M PNP |
2,076 |
|
Datasheet | PH | Box | Active | Retroreflective | 196.850" (5m) | 10V ~ 30V | 1ms | PNP | Red (625nm) | Cable | IP67, IP69K | 78.74" (2m) | Adjustable, 210° Turn Potentiometer | -25°C ~ 60°C |
|
PE12CNT15POSENSOR THROUGH-BEAM 15M PNP |
2,092 |
|
Datasheet | PE | Box | Active | Through-Beam | 590.551" (15m) | 10V ~ 30V | 6.5ms, 3.5ms | PNP | Infrared (890nm) | Cable | IEC 60529 IP67 | 196.85" (5m) | - | -20°C ~ 50°C |
|
PD180CBT30MUSENSOR THROUGH-BEAM 30M SPST |
3,141 |
|
Datasheet | PD | Box | Active | Through-Beam | 1181" (30m) 98.4' | 12 ~ 24 VDC, 12 ~ 24 VAC | 20ms | SPST | Infrared (850nm) | Terminal | IEC 60529 IP55 | - | - | -25°C ~ 55°C |
|
|
PA18CAD04NAM1WSSENSOR REFLECTIVE 200MM NPN |
2,945 |
|
Datasheet | PA | Box | Active | Reflective, Diffuse | 7.874" (200mm) | 10V ~ 30V | 1ms | NPN | Red LED | Connector, M12 | IP67, IP69K | - | - | -25°C ~ 60°C |
|
PD30CNG02PPM5MUSENSOR RETROREFLECTIVE 2M PNP |
2,833 |
|
Datasheet | PD | Box | Active | Retroreflective | 78.740" (2m) | 10V ~ 30V | 500µs | PNP | Red (617nm) | Connector | IEC 60529 IP67 | - | Teaching Method | -25°C ~ 55°C |
