Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q12RB6FF15PHOTO SEN FIXED 15MM LO BIPOLAR |
2,566 |
|
Datasheet | Q12 | Box | Active | Background Suppression | 0.591" (15mm) | 10V ~ 30V | 700µs | NPN/PNP - Dark-ON | Red LED | Cable | IEC IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|
QS18VP6CV45Q5PHOTO SEN 43MM PNP |
3,014 |
|
Datasheet | QS18 | Box | Active | Convergent | 1.693" (43mm) | 10V ~ 30V | 600µs | PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS18VP6LVQ5PHOTO SEN RETRO 6.5M PNP |
2,372 |
|
Datasheet | QS18 | Bag | Active | Retroreflective, NonPolarized | 255.906" (6.5m) | 10V ~ 30V | 600µs | PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS18EK6DVQ5PHOTO SEN 600MM PNP/NPN IO-LINK |
1,820 |
|
Datasheet | QS18 | Box | Active | Diffuse | 23.622" (600mm) | 10V ~ 30V | 600µs | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -20°C ~ 70°C |
|

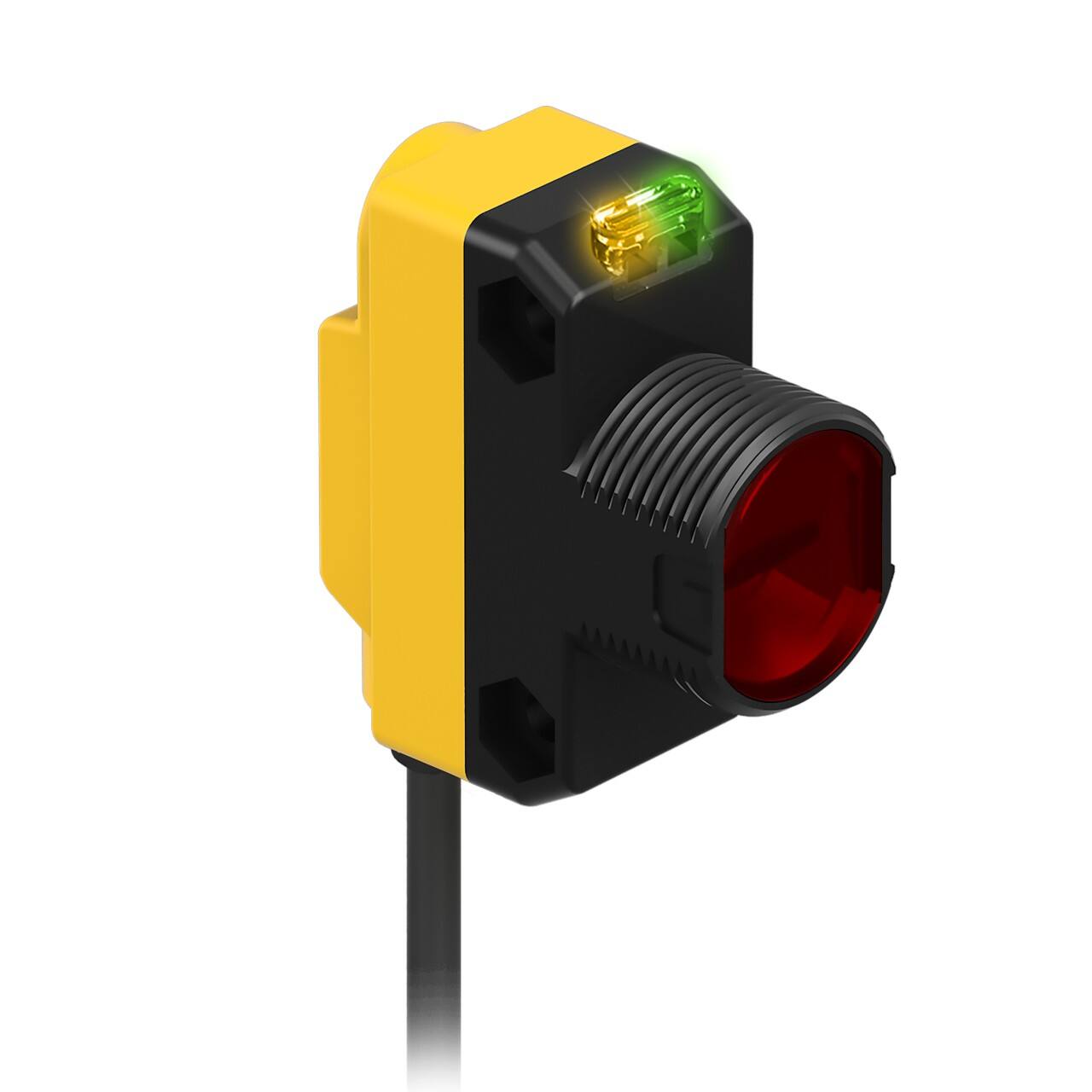

QS18VP6R W/30WORLD-BEAM QS18 SERIES: RECEIVER |
1,446 |
|
Datasheet | QS18 | Box | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | 750µs | PNP - Dark-ON/Light-ON - Selectable | LED | Cable | NEMA 6P, IEC IP67 | 354.33" (9m) | - | -20°C ~ 70°C |
|
Q20PDXLQ5PHOTO SEN DIFFUSED 1500MM PNP |
1,969 |
|
Datasheet | Q20 | Box | Active | Diffuse | 4.9' (1.50m) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON | Infrared (850nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
Q20PDLQ5PHOTO SEN DIFFUSED 800MM PNP |
1,760 |
|
Datasheet | Q20 | Bag | Active | Diffuse | 31.496" (800mm) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON | Red (624nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
Q20PLVQWORLD-BEAM Q20 SERIES: RETRO |
1,896 |
|
Datasheet | Q20 | Box | Active | Retroreflective, NonPolarized | 236.220" (6m) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON - Selectable | Red (645nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
Q20PLVQ5PHOTO SEN RETRO 6M PNP |
2,461 |
|
Datasheet | Q20 | Box | Active | Retroreflective, NonPolarized | 236.22" (6m) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON | Red (645nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
|
Q20PLPQ5PHOTO SEN RETRO 4M PNP |
4,355 |
|
Datasheet | Q20 | Box | Active | Retroreflective, Polarized | 13.12' (4m) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON | Red (645nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
