Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVS28D100QPPARTS VERIFICATION SENSOR, 100MM |
3,348 |
|
Datasheet | PVS28 | Box | Active | Diffuse | 3.937" (100mm) | 12V ~ 30V | - | NPN/PNP | - | Cable with Connector, M12 | IP54 | 5.906" (150.00mm) | - | -20°C ~ 50°C |
|
|
SMA912LVAGQDSMA912LVAGQD AC SCANNER ANTI-GLA |
1,235 |
|
Datasheet | VALU-BEAM | Box | Active | Retroreflective | 11.811" ~ 181.102" (300mm ~ 4.6m) | 24VAC ~ 130VAC | 4ms | Solid State - Dark-ON/Light-ON - Selectable | Red (650nm) | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
|
Q5ZKLAF1800-Q8SENSOR, LASER, 95-1800MM PNP/NPN |
4,240 |
|
Datasheet | Q5Z | Box | Active | Background Suppression | 3.740" ~ 70.866" (95mm ~ 1.8m) | 10V ~ 30V | 3ms | Push-Pull, NPN/PNP | Red (650nm) | Connector, M12 | IP67 | - | Teaching Method | -10°C ~ 50°C |
|
|
PVS28D225QPPARTS VERIFICATION SENSOR, 225MM |
4,964 |
|
Datasheet | PVS28 | Box | Active | Diffuse | 8.9" (225mm) | 12V ~ 30V | - | NPN/PNP | - | Cable with Connector, M12 | IP54 | 5.906" (150.00mm) | - | -20°C ~ 50°C |
|
|
Q26PLUMQ5Q26 SERIES LUMINESCENCE SENSOR; |
4,254 |
|
Datasheet | Q26 | Bulk | Active | Diffuse | 0.394" ~ 1.181" (10mm ~ 30mm) | 12V ~ 30V | 250µs | PNP - Dark-ON/Light-ON | - | Connector, M12 | IP67 | 5.906" (150.00mm) | Teaching Method | -10°C ~ 55°C |
|
|
LE550ULASER DISPLACEMENT SENSOR; RANG |
3,347 |
|
Datasheet | LE | Bulk | Active | - | 3.937" ~ 39.370" (100mm ~ 1m) | 12V ~ 30V | 2ms | NPN/PNP | Red LED | Connector, M12 | NEMA 6, IP67 | - | Teaching Method | -20°C ~ 55°C |
|
|
EG24-ILVA-Q7SENSOR, EDGE, 24MM WIDE BEAM |
2,759 |
|
Datasheet | EG24 | Box | Active | Retroreflective | 0" ~ 1.575" (0mm ~ 40mm) | 10V ~ 30V | 650µs | Analog Current | Green (630nm) | Connector, M8 | IP67 | - | Teaching Method | 0°C ~ 55°C |
|
|
EG24-ILVX-Q7SENSOR, EDGE, 24MM WIDE BEAM |
4,763 |
|
Datasheet | EG24 | Box | Active | Retroreflective | 0" ~ 1.575" (0mm ~ 40mm) | 10V ~ 30V | 650µs | Analog Current | Green (630nm) | Connector, M8 | IP67 | - | Teaching Method | 0°C ~ 55°C |
|

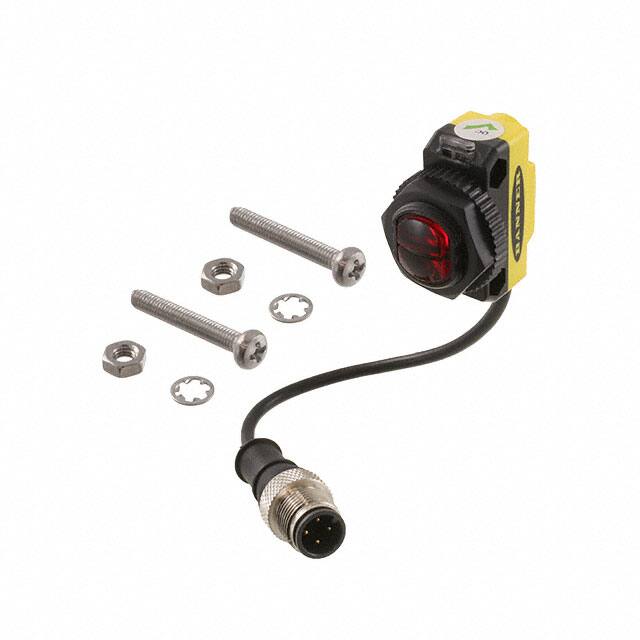

QS18EK6CV45Q5PHOTO SEN 43MM PUSH/PULL IO-LINK |
1,337 |
|
Datasheet | QS18 | Box | Obsolete | Convergent | 1.693" (43mm) | 10V ~ 30V | 600µs | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -20°C ~ 70°C |
|
M12NFF25SENSOR RANGE 25MM NPN |
2,618 |
|
Datasheet | M12 | Box | Active | - | 0.98" (25mm) | 10V ~ 30V | 500µs | NPN | Red (680nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | - | -20°C ~ 60°C |
