Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T18SN6DQPPHOTO SEN 500MM BIPOLAR |
1,516 |
|
Datasheet | T18 | Box | Obsolete | Diffuse | 19.685" (500mm) | 10V ~ 30V | 3ms | NPN - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | Adjustable, Potentiometer | -40°C ~ 70°C |
|
T18SN6DPHOTO SEN 500MM COMP NPN |
2,196 |
|
Datasheet | T18 | Box | Obsolete | Diffuse | 19.685" (500mm) | 10V ~ 30V | 3ms | NPN - Dark-ON/Light-ON | Infrared (880nm) | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|
T18SP6DQPHOTO SEN 500MM COMP PNP |
1,433 |
|
Datasheet | T18 | Box | Obsolete | Diffuse | 19.685" (500mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 6P, IP69K | - | Adjustable, Potentiometer | -40°C ~ 70°C |
|
T18SP6FF100QPHOTO SEN 100MM COMP PNP |
3,576 |
|
Datasheet | T18 | Box | Obsolete | Background Suppression | 3.937" (100mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|
T18SP6RPHOTO SEN RECEIVER 20M COMP PNP |
4,583 |
|
Datasheet | T18 | Box | Obsolete | Through-Beam | 787.402" (20m) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (950nm) | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
T18SP6RQPHOTO SEN RECEIVER 20M COMP PNP |
3,185 |
|
Datasheet | T18 | Box | Obsolete | Through-Beam | 787.402" (20m) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (950nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|
T18SN6RQPHOTO SEN 20M COMP NPN |
1,179 |
|
Datasheet | T18 | Box | Obsolete | Through-Beam | 787.402" (20m) | 10V ~ 30V | 3ms | NPN - Dark-ON/Light-ON | Infrared (950nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|

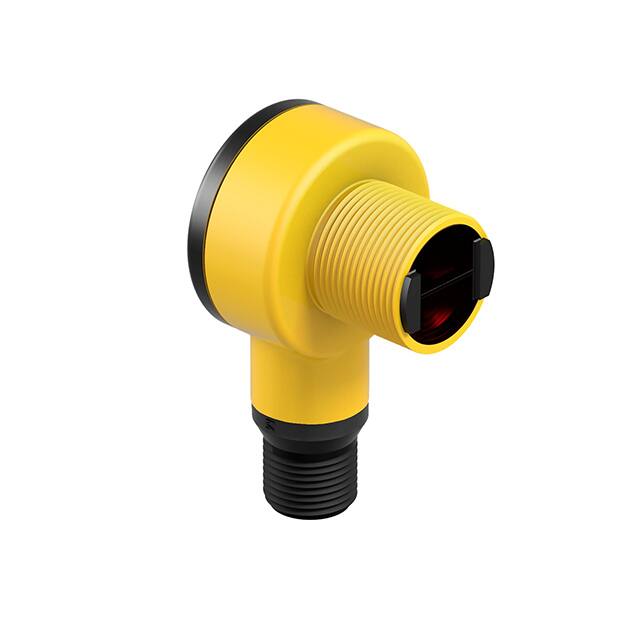

T18SP6FF50QPHOTO SEN 50MM COMP PNP |
3,341 |
|
Datasheet | T18 | Box | Obsolete | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|

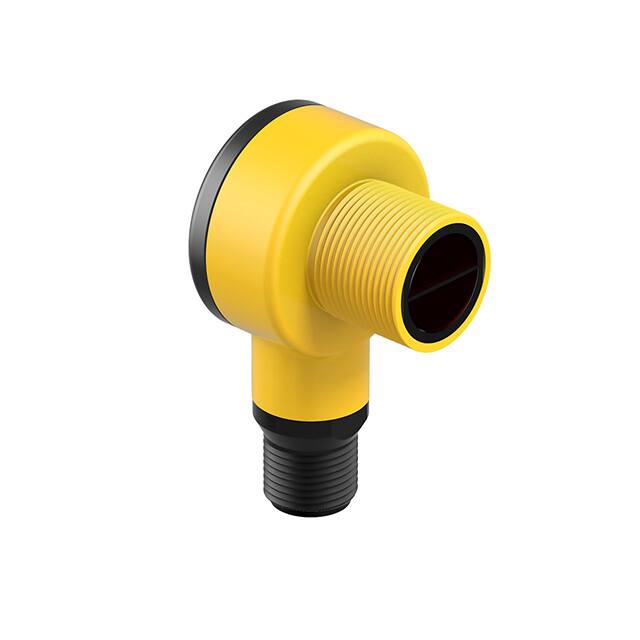

T18SN6DQPHOTO SEN 500MM COMP NPN |
4,170 |
|
Datasheet | T18 | Box | Obsolete | Diffuse | 19.685" (500mm) | 10V ~ 30V | 3ms | NPN - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | Adjustable, Potentiometer | -40°C ~ 70°C |
|
T18SP6LQPHOTO SEN RETRO 2M COMP PNP |
1,825 |
|
Datasheet | T18 | Box | Obsolete | Retroreflective, NonPolarized | 78.740" (2m) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (950nm) | Connector | NEMA 6P, IEC IP67, IEC IP69K | - | Adjustable, Potentiometer | -40°C ~ 70°C |
