Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS18VP6LDQ8SEN LASER DIFFUSED 300MM PNP |
4,321 |
|
Datasheet | QS18 | Box | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 700µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -10°C ~ 50°C |
|

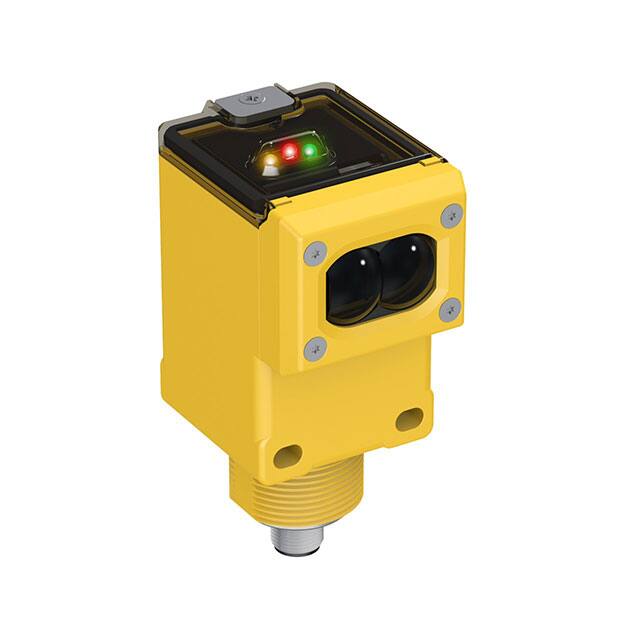

Q45BB6LPQ5PHOTO SEN RETRO 0.15-6M BIPOLAR |
3,171 |
|
Datasheet | Q45 | Box | Active | Retroreflective | 5.91" ~ 236.22" (150mm ~ 6000mm) | 10V ~ 30V | 2ms | NPN/PNP | Red (680nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
Q45BB6DXQ5PHOTO SEN DIFFUSED 3M BIPOLAR |
4,031 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 118.110" (3m) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
SM312CVQDPHOTO SEN VISIBLE 16MM BIPOLAR |
4,583 |
|
Datasheet | MINI-BEAM® | Box | Active | Convergent | 0.630" (16mm) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
|
SM312LPQDPHOTO SEN RETRO 10MM-3M BIPOLAR |
4,159 |
|
Datasheet | MINI-BEAM® | Box | Active | Retroreflective, Polarized | 118.110" (3m) | 10V ~ 30V | 1ms | NPN/PNP | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM312FPPHOTO SEN FIBER NPN/PNP |
1,606 |
|
Datasheet | MINI-BEAM® | Box | Active | Fiber Optic | - | 10V ~ 30V | 1ms | NPN/PNP | LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM312LVAGPHOTO SEN RETRO 50MM-2M BIPOLAR |
3,884 |
|
Datasheet | MINI-BEAM® | Box | Active | Retroreflective, Polarized | 78.740" (2m) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Red LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM312FP1HPHOTO SEN FIBER BIPOLAR |
4,966 |
|
Datasheet | MINI-BEAM® | Box | Active | Through-Beam | - | 10V ~ 30V | 1ms | NPN/PNP | Red (650nm) | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
Q45VR3LVQPHOTO SEN RETRO 0.8-9M SPST |
4,106 |
|
Datasheet | Q45 | Box | Active | Retroreflective, NonPolarized | 31.50" ~ 354.33" (800mm ~ 9000mm) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPDT | Red (680nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -25°C ~ 55°C |
|
Q45VR3LVPHOTO SEN RETRO 0.8-9M SPST |
4,789 |
|
Datasheet | Q45 | Box | Active | Retroreflective, NonPolarized | 31.50" ~ 354.33" (800mm ~ 9000mm) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPDT | Red (680nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable | -25°C ~ 55°C |
