Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

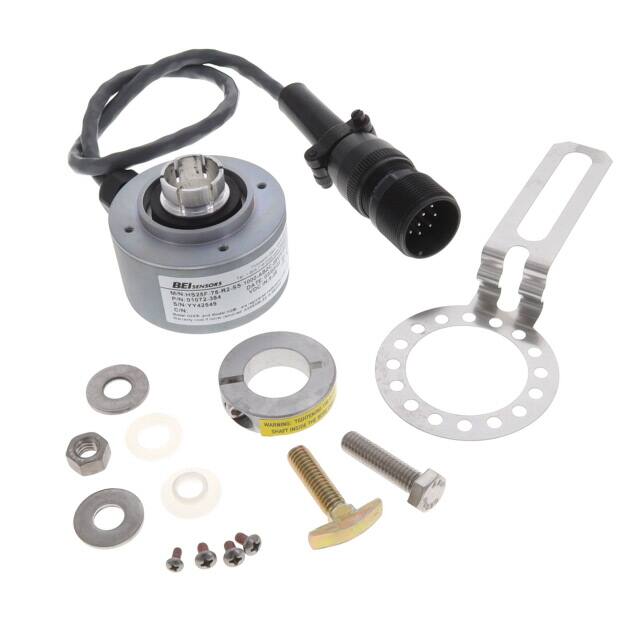

01072-384ROTARY ENCODER OPTICAL 1000PPR |
1,512 |
|
Datasheet | HS25 | Box | Active | Optical | Quadrature with Index (Incremental) | 1000 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|

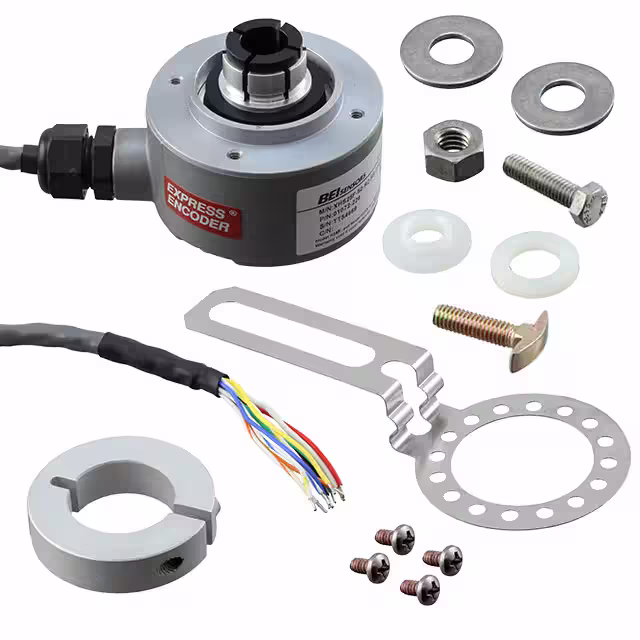

01072-226ROTARY ENCODER OPTICAL 2048PPR |
2,747 |
|
Datasheet | XHS25 | Box | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Cable | 7.5B |
|
01029-1190ROTARY ENCODER OPTICAL 2500PPR |
4,201 |
|
Datasheet | E25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2500 | 5V ~ 28V | Hole for Shaft | No | No | Servo Mount | User Selectable | Cable | 1B |
|
01002-5171ROTARY ENCODER OPTICAL 1000PPR |
1,596 |
|
Datasheet | H25 | Bulk | Active | Optical | Quadrature (Analog) | 1000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
01070-084ROTARY ENCODER OPTICAL 1024PPR |
1,773 |
|
Datasheet | XHS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
01002-7574ROTARY ENCODER OPTICAL 360PPR |
4,227 |
|
Datasheet | H25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 360 | 5V ~ 15V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-8124ROTARY ENCODER OPTICAL 720PPR |
2,820 |
|
Datasheet | XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 720 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-8153ROTARY ENCODER OPTICAL 360PPR |
4,417 |
|
Datasheet | XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 360 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-8720ROTARY ENCODER OPTICAL 1024PPR |
4,628 |
|
Datasheet | XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
MHM5-EEA1B-1213-C100-PRMENCODER ROTARY ETHER 10MM 12BIT |
4,887 |
|
Datasheet | MHM5 | Box | Active | Absolute | Binary (Absolute) | 4096 | 10V ~ 30V | Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 1B |
