Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01039-1886ROTARY ENCODER OPTICAL 50PPR |
3,338 |
|
Datasheet | XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 50 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-2834ROTARY ENCODER OPTICAL 512PPR |
1,274 |
|
Datasheet | XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 512 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|

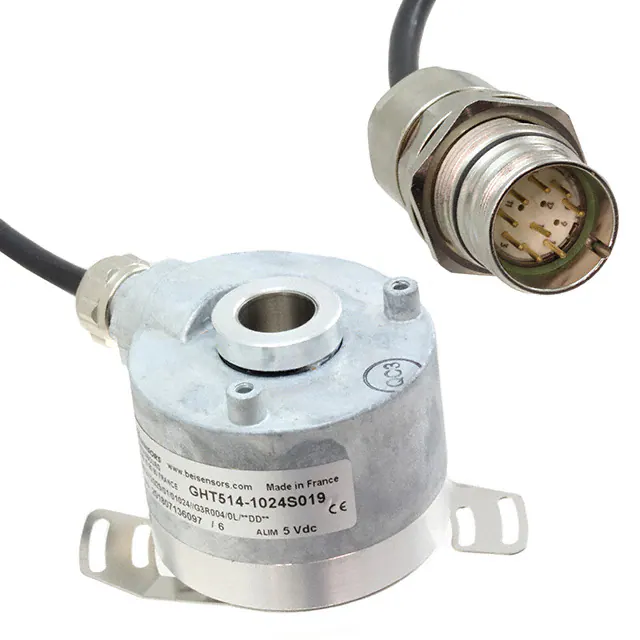

GHT514-1024S019ROTARY ENCODER INCREMENTAL |
3,358 |
|
Datasheet | GHT5_1 | Bulk | Obsolete | Incremental | - | 1024 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - |
|
E6B2-CWZ6C-10 400P/R 5MROTARY ENCODER OPTICAL 400PPR |
3,967 |
|
Datasheet | E6B2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 400 | 5V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
01039-251ROTARY ENCODR INCREMENTAL 600PPR |
4,764 |
|
Datasheet | H20 | Bulk | Active | Incremental | Quadrature (Incremental) | 600 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-3642ROTARY ENCODR INCREMENT 1000PPR |
2,918 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature (Incremental) | 1000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-330ROTARY ENCODR INCREMENTAL 500PPR |
3,299 |
|
Datasheet | H20 | Box | Not For New Designs | Incremental | Quadrature (Incremental) | 500 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
ZBH12002ROTARY ENCODER OPTICAL 1200PPR |
2,741 |
|
Datasheet | ZBH | Box | Active | Optical | Quadrature (Analog) | 1200 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Connector | - |
|
ZPJ0500AROTARY ENCODER MECHANICAL 500PPR |
2,808 |
|
- |
ZPJ | Box | Active | Mechanical | Quadrature with Index (Incremental) | 500 | 4.75V ~ 28V | 5/8" Open Center | No | - | Chassis Mount, Motors | - | Cable | - |
|
01029-1718ROTARY ENCODER OPTICAL 100PPR |
4,816 |
|
Datasheet | E25 | Box | Active | Optical | Quadrature (Incremental) | 100 | 5V ~ 28V | Hole for Shaft | No | No | Servo Mount | User Selectable | Connector | 1B |
|
|
01039-3250ROTARY ENCODR INCREMENTAL 500PPR |
2,658 |
|
Datasheet | H20 | Bulk | Active | Incremental | Quadrature (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
ZFG0010CROTARY ENCODER OPTICAL 10PPR |
1,844 |
|
Datasheet | ZFG | Box | Active | Optical | Quadrature (Incremental) | 10 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZFG0120CROTARY ENCODER OPTICAL 120PPR |
4,243 |
|
Datasheet | ZFG | Box | Active | Optical | Quadrature (Incremental) | 120 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZFG03/3CROTARY ENCODER OPT 3.333PPR 10M |
2,687 |
|
Datasheet | ZFG | Box | Active | Optical | Quadrature (Incremental) | 3.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
01039-3603ROTARY ENCODR INCREMENTAL 120PPR |
3,706 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 120 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-1733ROTARY ENCODR INCREMENTAL 500PPR |
1,468 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature (Incremental) | 500 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Cable with Connector | 1.5B |
|
|
E6C2-CWZ6C 720P/RROTARY ENCODER OPTICAL 720PPR |
3,225 |
|
Datasheet | E6C2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 720 | 5V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | - |
|
ZLZ0050GROTARY ENCODER OPTICAL 50PPR |
2,719 |
|
Datasheet | ZLZ | Box | Active | Optical | Quadrature with Index (Incremental) | 50 | 4.75V ~ 28V | Cable Pull | No | No | Chassis Mount | - | Cable | 1M |
|
ZNH0100HROTARY ENCODER OPTICAL 100PPR |
2,921 |
|
Datasheet | ZNH | Box | Active | Optical | Quadrature (Incremental) | 100 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | - | Chassis Mount | - | Connector | - |
|
|
ZNH0120HROTARY ENCODER OPTICAL 120PPR |
1,449 |
|
Datasheet | ZNH | Box | Active | Optical | Quadrature (Incremental) | 120 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | - | Chassis Mount | - | Connector | - |
