Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT40.361AC/DC DIN RAIL SUPPLY 36V 960W |
2,353 |
|
Datasheet | DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 95.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

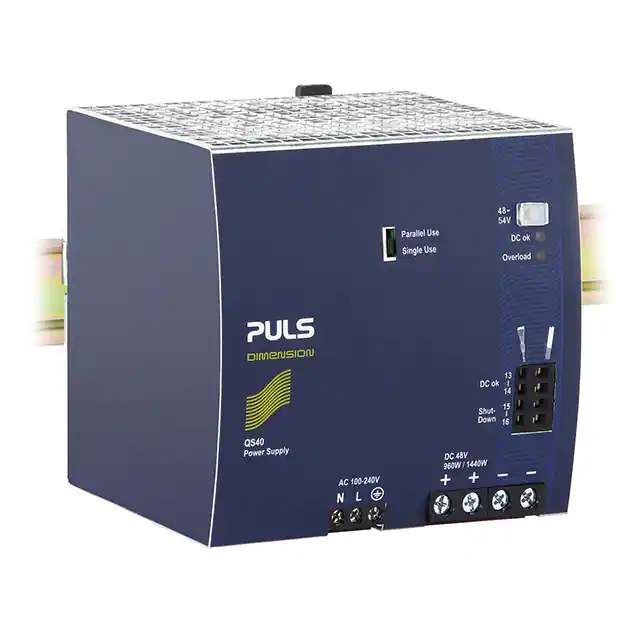

QS40.481AC/DC DIN RAIL SUPPLY 48V 960W |
3,131 |
|
Datasheet | DIMENSION Q (960W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
PIM90.245AC/DC DIN RAIL SUPPLY 24V 91W |
2,975 |
|
Datasheet | PIANO (90W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, EAC | 61010-1; 62368-1; UL 508 |
|

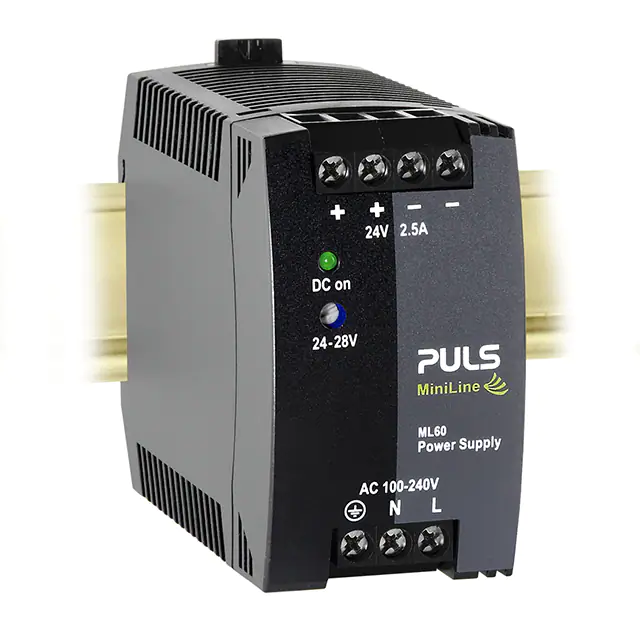

ML60.242AC/DC DIN RAIL SUPPLY 24V 60W |
3,444 |
|
Datasheet | MiniLine-2 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | ITE (Commercial) | 90.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|

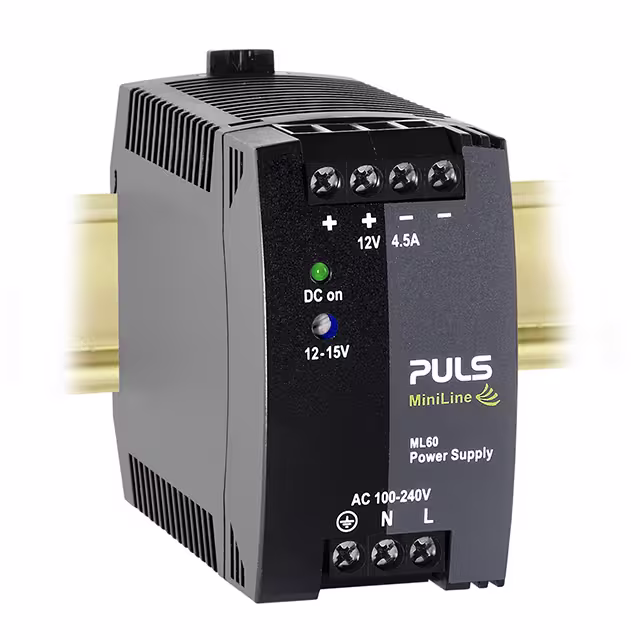

ML60.122AC/DC DIN RAIL SUPPLY 12V 50W |
4,640 |
|
Datasheet | MiniLine-2 (54W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 50W | 500 V | ITE (Commercial) | 87.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|

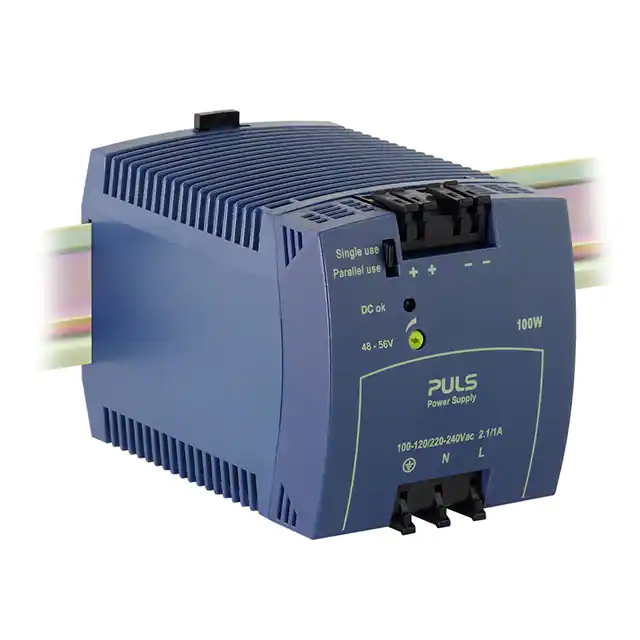

ML100.105AC/DC DIN RAIL SUPPLY 48V 100W |
3,356 |
|
Datasheet | MiniLine (100W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 100W | - | ITE (Commercial) | 91.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
CP20.241-V1AC/DC DIN RAIL SUPPLY 24V 480W |
1,377 |
|
Datasheet | DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|

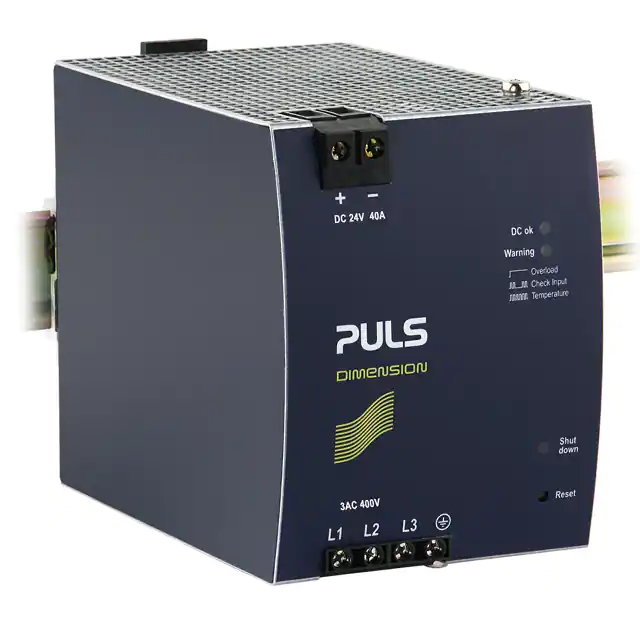

XT40.721AC/DC DIN RAIL SUPPLY 72V 960W |
2,494 |
|
Datasheet | DIMENSION X (960W) | Box | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
PIM36.241AC/DC DIN RAIL SUPPLY 24V 36W |
3,736 |
|
Datasheet | PIANO (36W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 36W | 500 V | Industrial, ITE (Commercial), Laboratory | 90.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus | 61010-1; 62368-1; UL 508 |
|
PIM60.125AC/DC DIN RAIL SUPPLY 12V 60W |
4,129 |
|
Datasheet | PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial), Laboratory | 90.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | 61010-1; 62368-1 |
