Inductor Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Kit Type | Style | Material - Core | Quantity | Inductance Range | Mounting Type | Packages Included | Features | Grade | Qualification | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443834DESIGN KIT WE-MAPI METAL ALLOY |
3,197 |
|
Datasheet | WE-MAPI | Bulk | Active | Fixed | Molded | Metal | Assorted | 330nH ~ 22µH | Surface Mount | - | - | Unshielded | - | - |
|

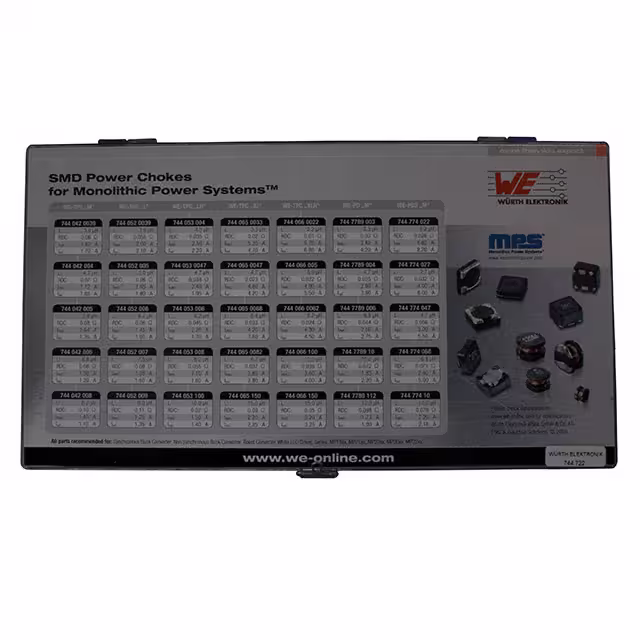

744722KIT INDUCTOR FOR MPS |
2,549 |
|
Datasheet | WE-TPC | Case | Obsolete | Fixed | Wirewound | Ferrite | 350 Pieces (35 Values - 10 Each) | 2.2µH ~ 15µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|
744724KIT DESIGN FOR NATIONAL REF |
4,405 |
|
- |
WE-PD for National Semiconductor | Case | Obsolete | Fixed | Wirewound | Ferrite | 180 Pieces (Assorted Per Value) | 4.7µH ~ 100µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|
7440402SMD POWER INDUCTORS WE-LQS - 252 |
1,004 |
|
Datasheet | WE-LQS | Case | Active | Fixed | Wirewound | Ferrite | 550 Pieces (Assorted Per Value) | 470nH ~ 47µH | Surface Mount | Non-Standard SMD | - | Semi-Shielded | - | - |
|
7443735DESIGN KIT WE-LHMI SMT LOW PROFI |
4,002 |
|
Datasheet | WE-LHMI | Bulk | Active | Fixed | - | - | 25 Pieces (25 Values - 1 Each) | 330nH ~ 10µH | Surface Mount | Non-Standard SMD | - | Shielded | Automotive | AEC-Q200 |
|
744721KIT CHOKES FOR EXAR |
3,997 |
|
Datasheet | - | Case | Obsolete | Fixed | Wirewound | Ferrite | 175 Pieces (35 Values - 5 Each) | 130nH ~ 82µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|
744062KIT INDUCTOR TPC LARGE SIZES |
3,643 |
|
Datasheet | WE-TPC | Case | Active | Fixed | Wirewound | Ferrite | 175 Pieces (35 Values - 5 Each) | 1µH ~ 330µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|
744777KIT INDUCTOR PD SERIES MED SIZES |
3,464 |
|
- |
WE-PD | Case | Active | Fixed | Wirewound | Ferrite | 175 Pieces (35 Values - 5 Each) | 1µH ~ 100µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|

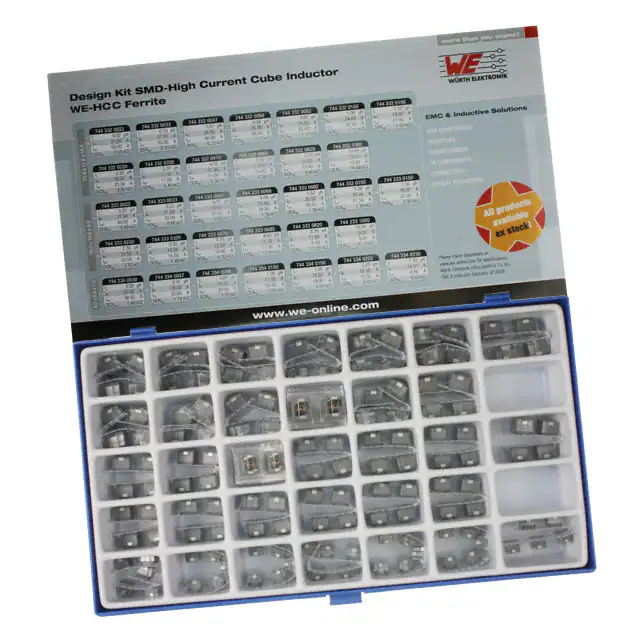

744332KIT INDUCTOR WE-HCC SMD |
1,393 |
|
Datasheet | WE-HCC | Case | Active | Fixed | Wirewound | Ferrite | 139 Pieces (Assorted Per Value) | 220nH ~ 10µH | Surface Mount | Non-Standard SMD | - | - | - | - |
|

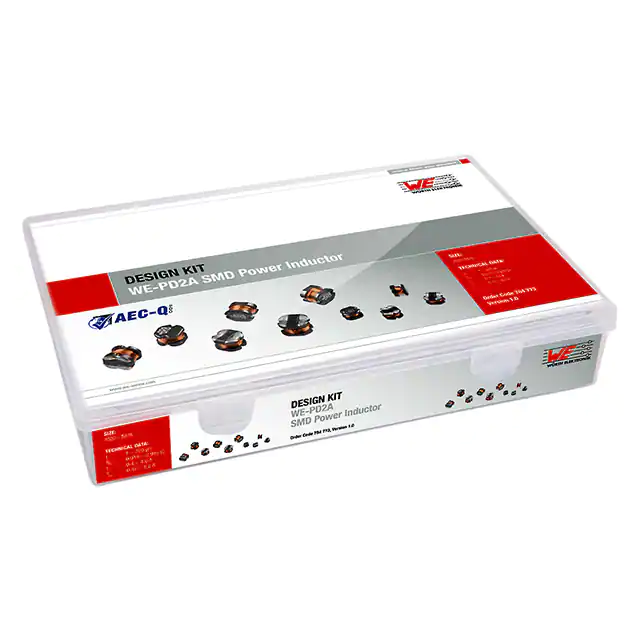

784773SMD POWER INDUCTORS WE-PD2A - 45 |
3,570 |
|
- |
WE-PD2A | Case | Active | Fixed | Wirewound | Ferrite | 350 Pieces (35 Values - 10 Each) | 1µH ~ 56µH | Surface Mount | Non-Standard SMD | - | - | Automotive | AEC-Q200 |
