Inductor Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Kit Type | Style | Material - Core | Quantity | Inductance Range | Mounting Type | Packages Included | Features | Grade | Qualification | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHQ0603P-2-KITL 0603 240-160MA 12NH-39NH |
4,350 |
|
Datasheet | MHQ-P | Book | Active | Fixed | Multilayer | Ceramic, Non-Magnetic | 260 Pieces (13 Values - 20 Each) | 12nH ~ 39nH | Surface Mount | 0201 (0603 Metric) | - | - | - | - |
|

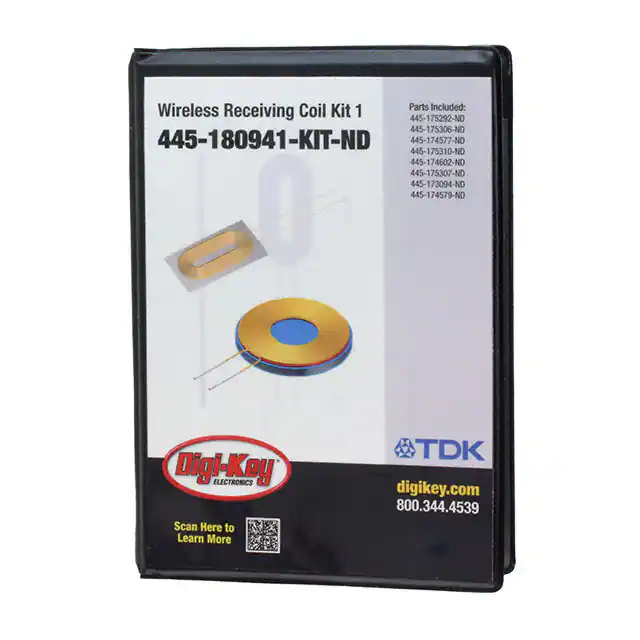

WR-1-KITWIRELESS RECEIVING COIL KIT 1 |
2,485 |
|
Datasheet | WR | Case | Active | Wireless Charging Coils | Receiver | - | 16 Pieces (8 Values - 2 Each) | 8.32µH ~ 31.8µH | - | - | 1 Coil, 1 Layer | - | - | - |
|
TFM322512-AUTO-KITTHIN FILM TFM322512 KIT |
2,473 |
|
Datasheet | TFM-ALMA, TFM-ALVA | Book | Active | Fixed | Thin Film | Metal | 160 Pieces (16 Values - 10 Each) | 470nH ~ 10µH | Surface Mount | 1210 (3225 Metric) | - | Shielded | Automotive | AEC-Q200 |
|

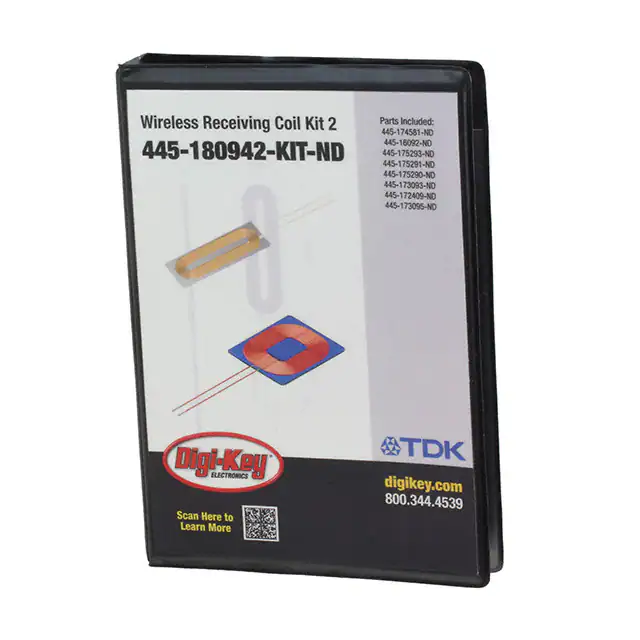

WR-2-KITWIRELESS RECEIVING COIL KIT 2 |
4,986 |
|
Datasheet | WR | Bulk | Active | Wireless Charging Coils | Receiver | - | 15 Pieces (Assorted Per Value) | 8.23µH ~ 46µH | - | - | 1 Coil, 1 Layer | - | - | - |
|
VLBU-1-KITVLBU INDUCTOR KIT |
3,242 |
|
Datasheet | VLBU | Bulk | Active | Fixed | Wirewound | Ferrite | 65 Pieces (13 Values - 5 Each) | 70nH ~ 470nH | Surface Mount | 2-SMD, J-Lead | - | Unshielded | - | - |
|
|
BCL3225-AUTO-KITBCL POWER INDUCTOR KIT |
3,525 |
|
Datasheet | BCL | Bulk | Active | Fixed | Wirewound | Metal | 90 Pieces (18 Values - 5 Each) | 2.2µH ~ 100µH | Surface Mount | 1210 (3225 Metric) | - | Shielded | Automotive | AEC-Q200 |
|

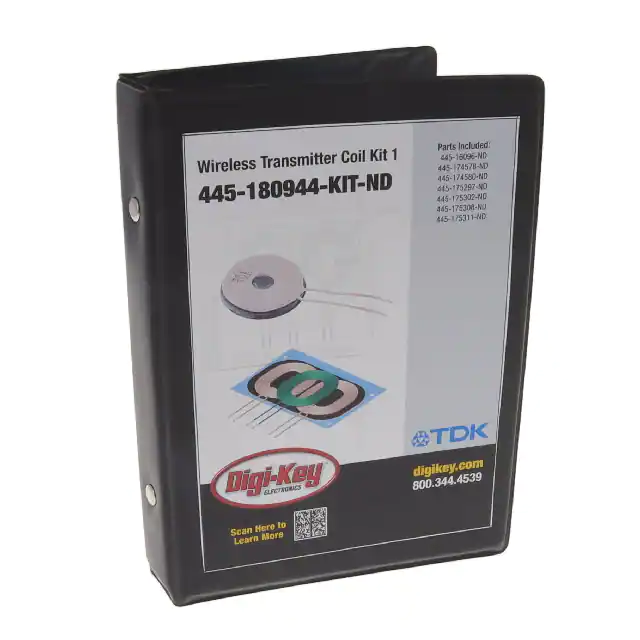

WT-1-KITWIRELESS TRANSMITTER COIL KIT 1 |
3,499 |
|
- |
WT | Bulk | Active | Wireless Charging Coils | Transmitter | - | 12 Pieces (7 Values - Mixed Quantities) | 6.2µH ~ 20.9µH | - | - | 1 Coil, 1 Layer; 1 Coil, 2 Layer; 3 Coil, 1 Layer | - | - | - |
|
|
VLBU-2-KITVLBU Inductor Kit |
4,659 |
|
- |
VLBU | Bulk | Active | - | Wirewound | Ferrite | 80 Pieces (16 Values - 5 Each) | 70nH ~ 400nH | Surface Mount | Non-Standard SMD | - | Unshielded | - | - |
|
WR-3-KITWIRELESS RECEIVING COIL KIT 3 |
3,910 |
|
Datasheet | WR | Bulk | Active | Wireless Charging Coils | Receiver | - | 16 Pieces (8 Values - 2 Each) | 7.3µH ~ 19.5µH | - | - | 1 Coil, 1 Layer | - | - | - |
|
SPMXX20-LR-KITSPM-LR 2.0MM HEIGHT PWR IND KIT |
1,280 |
|
Datasheet | SPM-LR | Book | Active | Fixed | Wirewound | Metal | 140 Pieces (14 Values - 10 Each) | 470nH ~ 10µH | Surface Mount | Non-Standard SMD | - | Shielded | - | - |
