Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2031-42T-SMLFGDT 360V 1KA 2 POLE SMD |
952 |
|
Datasheet | 2-SMD Cylinder Square End | 2031-xxT-SM | Bulk | Active | 360 V | 1000A (1kA) | - | 2 | No | Surface Mount |
|
2026-09-A1GDT 90V 20KA 3 POLE |
609 |
|
Datasheet | Cylinder No Lead, 3 Terminal | TRIGARD® 2026 | Tube | Active | 90 V | 20000A (20kA) | ±20% | 3 | No | User Defined |
|
B88069X4990C103GDT 600V 10KA 2 POLE |
792 |
|
Datasheet | Cylinder No Lead | N80 | Bulk | Active | 600 V | 10000A (10kA) | ±20% | 2 | No | User Defined |
|
SG350GDT 350V 1KA 2 POLE SMD |
766 |
|
Datasheet | 1812 (4532 Metric) | SG | Tape & Reel (TR) | Active | 350 V | 1000A (1kA) | - | 2 | No | Surface Mount |
|
2056-09-ALFGDT 90V 5KA 3 POLE |
172 |
|
Datasheet | Cylinder No Lead, 3 Terminal | 2056 | Tray | Active | 90 V | 5000A (5kA) | ±20% | 3 | No | User Defined |
|
B88069X5970S102GDT 145V 5KA 2 POLE THROUGH HOLE |
694 |
|
Datasheet | Axial Cylinder | EC | Bulk | Active | 145 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
2RP600L-8/TRGDT 600V 20KA 2 POLE TH |
350 |
|
Datasheet | Axial Cylinder | 2R-8x6 | Tape & Reel (TR) | Active | 600 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
|
2056-09-B3LFGDT 90V 5KA 3 POLE THROUGH HOLE |
985 |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | 2056 | Tray | Active | 90 V | 5000A (5kA) | ±20% | 3 | No | Through Hole |
|
|
2056-60-B2LFGDT 600V 5KA 3 POLE THROUGH HOLE |
971 |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | 2056 | Tray | Active | 600 V | 5000A (5kA) | ±20% | 3 | No | Through Hole |
|
2027-60-C10LFGDT 600V 10KA 2 POLE TH |
728 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 600 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|

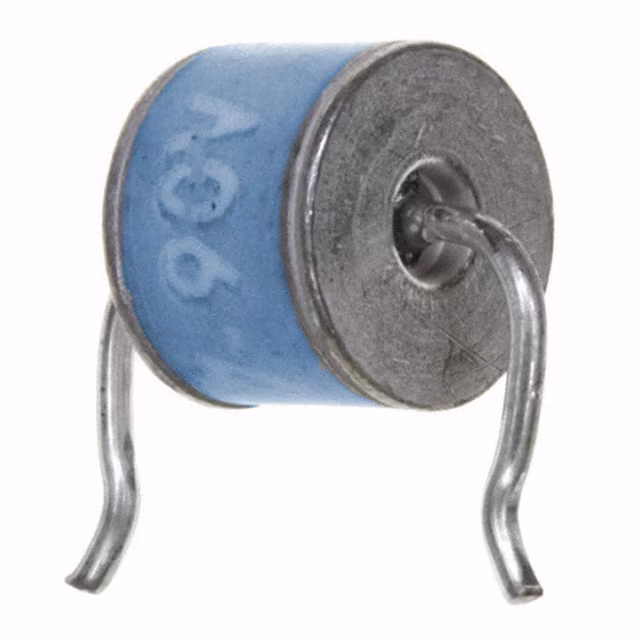

2027-09-B10LFGDT 90V 10KA 2 POLE THROUGH HOLE |
699 |
|
Datasheet | Axial Cylinder, Radial Bend | 2027 | Bulk | Active | 90 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|
|
2027-23-CLFGDT 230V 10KA 2 POLE TH |
955 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 230 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
SH350GDT 350V 5KA 2 POLE SMD |
737 |
|
Datasheet | 2-SMD, Square End Block | SH | Tape & Reel (TR) | Active | 350 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
B88069X4643T602GDT 3600V 1KA 2 POLE TH |
378 |
|
Datasheet | Axial | G41 | Tape & Reel (TR) | Active | 3600 V | 1000A (1kA) | ±20% | 2 | No | Through Hole |
|
B88069X3130B102GDT 230V 10KA 3 POLE TH |
333 |
|
Datasheet | Axial Cylinder, 3 Lead (T-Shape) | T31 | Tray | Active | 230 V | 10000A (10kA) | ±20% | 3 | No | Through Hole |
|
|
2027-60-CLFGDT 600V 10KA 2 POLE TH |
937 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 600 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2027-25-BLFGDT 250V 10KA 2 POLE TH |
915 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 250 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2027-47-CLFGDT 470V 10KA 2 POLE TH |
282 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 470 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2027-47-BT1LFGDT 470V 10KA 2 POLE TH |
928 |
|
Datasheet | Axial Cylinder | 2027 | Tape & Reel (TR) | Active | 470 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
B88069X3030C253GDT 72V 10KA 3 POLE |
994 |
|
Datasheet | Cylinder No Lead, 3 Terminal | T30 | Bulk | Active | 72 V | 10000A (10kA) | ±20% | 3 | No | User Defined |
