Fuseholders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS20H20 AMP FRONT CONNECTED |
4,145 |
|
Datasheet | - | Bulk | Active | Through Hole | - | 20 A | BS Fuse | Cartridge | Holder | 1 | 690V | Horizontal | Quick Connect | - | - | - |
|
|
RS32H32A RED SPOT FRONT CONNECTED BLA |
4,118 |
|
Datasheet | - | Bulk | Active | Through Hole | - | 32 A | BS Fuse | Cartridge | Holder | 1 | 690V | Horizontal | Quick Connect | - | - | - |
|

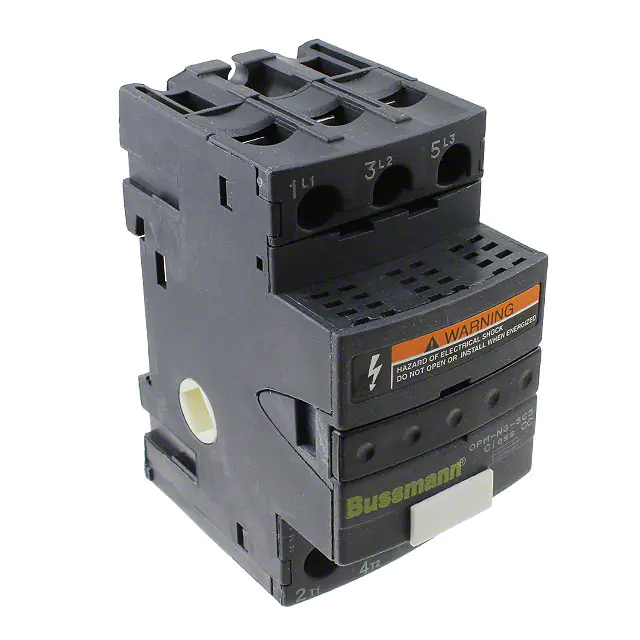

OPM-NG-SC3FUSE HLDR CART 600V 30A DIN RAIL |
1,392 |
|
Datasheet | OPTIMA® | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 3 | 600V | - | Screw Terminal, Pressure Plate | Copper Alloy | Tin | - |
|
CH143DUFUSE HLDR 14X51 3POLE |
1,641 |
|
Datasheet | CH | Bulk | Active | DIN Rail | 0.551" Dia x 2.008" L (14mm x 51mm) | 50 A | 14mm x 51mm | Cartridge | Holder | 3 | 700V | Vertical | Screw Terminal | Copper | - | - |
|
HEB-JJFUSE HOLDR CART 600V 30A IN LINE |
2,906 |
|
Datasheet | TRON® HEB | Bulk | Active | Free Hanging (In-Line) | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 1 | 600V | - | Wire Leads | - | - | - |
|
|
CHM2DIUFUSE HLDR CART 600V 30A DIN RAIL |
2,112 |
|
Datasheet | CHM | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 600V | - | - | - | - | - |
|
|
CHM3DIUFUSE HLDR CART 600V 30A DIN RAIL |
2,750 |
|
Datasheet | CHM | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 3 | 600V | - | - | - | - | - |
|
HEB-JW-RLC-JFUSE HOLDR CART 600V 30A IN LINE |
3,141 |
|
Datasheet | TRON® HEB | Bulk | Active | Free Hanging (In-Line) | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 1 | 600V | - | Wire Leads | - | - | - |
|
BK/HHLFUSE HLDR BLADE 32V 16A IN LINE |
2,252 |
|
Datasheet | MINI® | Bulk | Active | Free Hanging (In-Line) | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 16 A | Miniature (ATM) | Blade | Holder | 1 | 32V | - | Wire Leads | - | - | - |
|

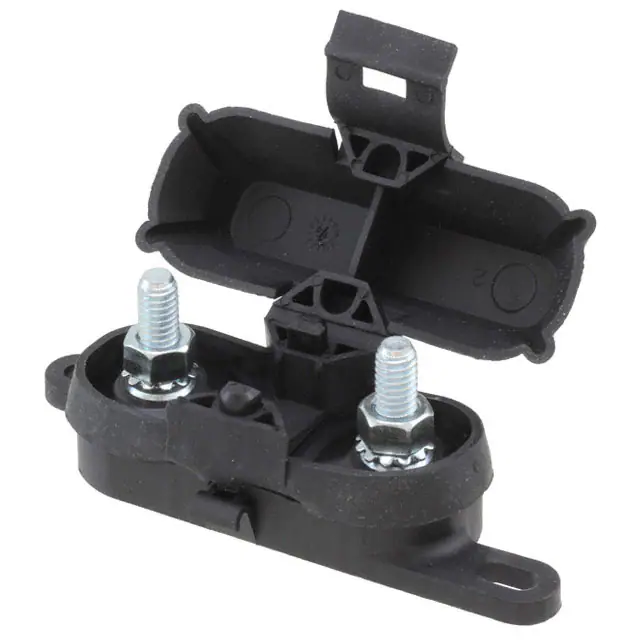

HMEGFUSE HOLDER BLADE 300A CHASS MNT |
3,418 |
|
Datasheet | HMEG | Bulk | Active | Chassis Mount | 2.7" L x 0.75" W x 0.42" H (68.58mm x 19.05mm x 10.67mm) | 300 A | MEGA (AMG) | Bolt Down | Holder | 1 | - | - | Bolt Down | - | - | - |
