Fuseholders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3557FUSE CLIP BLADE 500V 30A PCB |
121,105 |
|
Datasheet | - | Bulk | Active | Through Hole | - | 30 A | ATC, ATO, Miniature (ATM) | Blade | Clip | 1 | 500V | Vertical | PC Pin | Brass | Tin Nickel | UL |
|
3522FUSE CLIP BLADE 500V 30A PCB |
99,779 |
|
Datasheet | - | Bulk | Active | Through Hole | - | 30 A | ATC, ATO | Blade | Clip | 1 | 500V | Vertical | PC Pin | Brass | Tin | UL |
|
3519FUSE CLIP CARTRIDGE 15A PCB |
159,767 |
|
Datasheet | - | Bulk | Active | Through Hole | 0.197" Dia (5mm) | 15 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Brass | Tin | UL |
|
3577UNIVERSAL CLIP BOTTOM ENTRY |
80,784 |
|
Datasheet | - | Bulk | Active | Through Hole | - | 30 A | ATC, ATO, Miniature (ATM) | Blade | Clip | 1 | 500V | Vertical | PC Pin | Brass | Tin Nickel | UL |
|
3517FUSE CLIP CARTRIDGE 15A PCB |
126,231 |
|
Datasheet | - | Bulk | Active | Through Hole | 0.197" Dia (5mm) | 15 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Brass | Tin | UL |
|

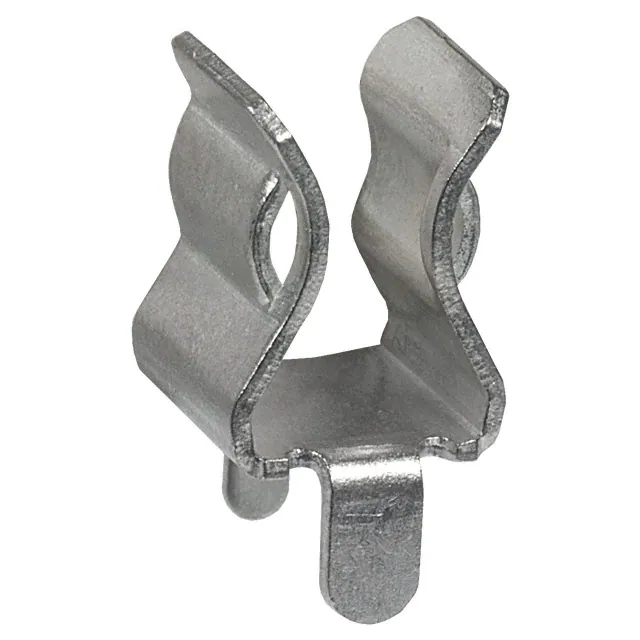

3518PFUSE CLIP CARTRIDGE 15A PCB |
43,104 |
|
Datasheet | - | Bulk | Active | Through Hole | 0.197" Dia (5mm) | 15 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Brass | Tin | UL |
|

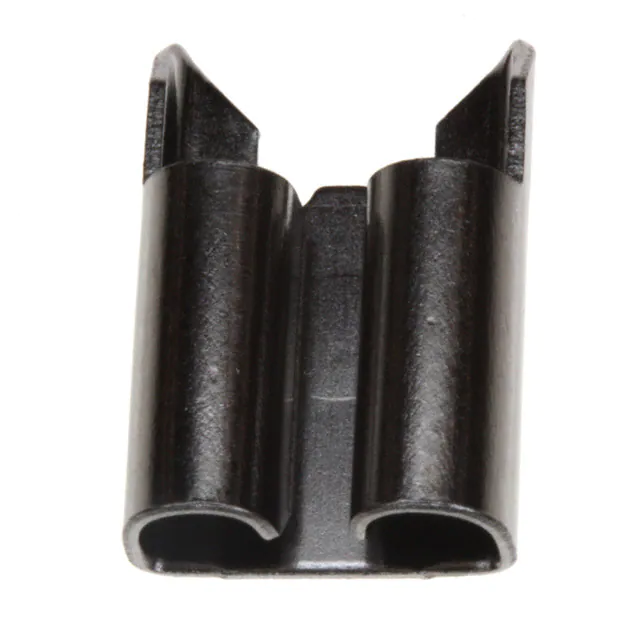

3555FUSE CLIP BLADE 500V 50A PCB |
44,542 |
|
Datasheet | MAXI PC | Bulk | Active | Through Hole | - | 50 A | Maxi (ATX) | Blade | Clip | 1 | 500V | Vertical | PC Pin | Copper | Tin Nickel | UL |
|
3544-2FUSE BLOCK BLADE 500V 20A PCB |
186,844 |
|
Datasheet | - | Bulk | Active | Through Hole | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 20 A | Miniature (ATM) | Blade | Block | 1 | 500V | Vertical | PC Pin | Brass | Tin | - |
|
3586KTRFUSE CLIP BLADE 30A SURFACE MNT |
175,457 |
|
Datasheet | - | Tape & Reel (TR) | Active | Surface Mount | - | 30 A | ATC, ATO, Miniature (ATM), Miniature (Low Profile) (ATT) | Blade | Clip | 1 | - | Vertical | Gull Wing | Brass | Tin Nickel | - |
|
4628FUSE HLDR CARTRIDGE 250V 5A PCB |
40,393 |
|
Datasheet | - | Bulk | Active | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 5 A | 5mm x 20mm | Cartridge | Holder | 1 | 250V | Horizontal | PC Pin | Brass | Tin | - |
