Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3302/20 100CBL RIBN 20COND 0.05 MULTI 25' |
4,813 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
|
3302/20 100CBL RIBN 20COND 0.05 MULTI 10' |
1,322 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
|
3302/20 100CBL RIBN 20COND 0.05 MULTIPLE 5' |
3,173 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3659/14 100CBL RIBN 14COND 0.05 BLACK 50' |
2,899 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.650" (16.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
|
3659/14 100CBL RIBN 14COND 0.05 BLACK 25' |
3,978 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.650" (16.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
|
3659/14 100CBL RIBN 14COND 0.05 BLACK 10' |
2,193 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.650" (16.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
3759/20 100CBL RIBN 20COND 0.05 BLACK 25' |
2,033 |
|
Datasheet | 3759 | Bulk | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 0.950" (24.13mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
|
C3801/26 100CBL RIBN 26COND 0.05 GRAY 50' |
2,584 |
|
Datasheet | 3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 50.0' (15.24m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
C3801/26 100CBL RIBN 26COND 0.05 GRAY 25' |
1,822 |
|
Datasheet | 3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 25.0' (7.62m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|

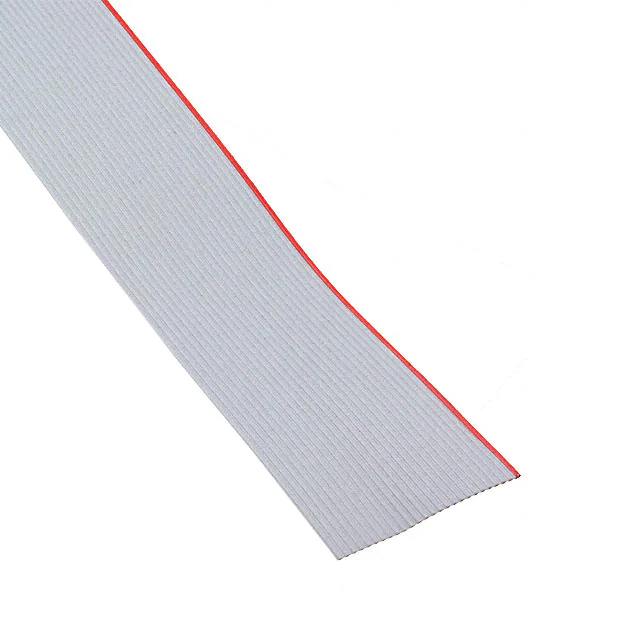

C3801/26 100CBL RIBN 26COND 0.05 GRAY 10' |
4,359 |
|
Datasheet | 3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 10.0' (3.05m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
