Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

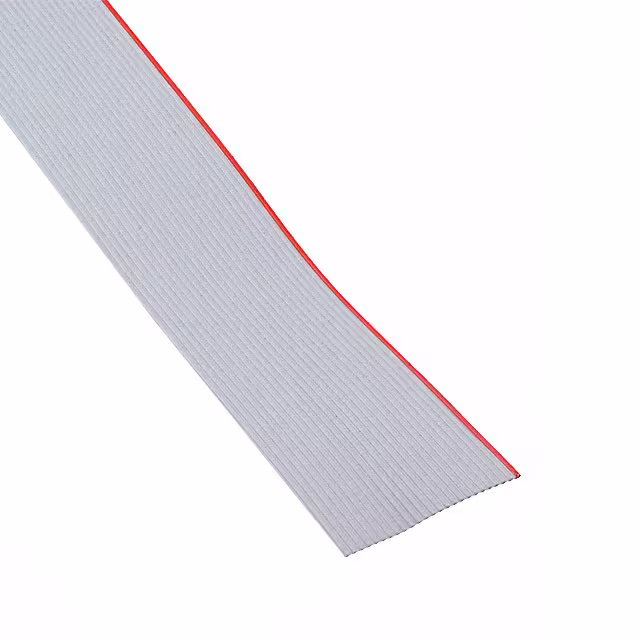

C3801/25 100CBL RIBN 25COND 0.05 GRAY 100' |
2,213 |
|
Datasheet | 3801 | Spool | Active | Flat Cable | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
C8132/18 100CBL RIBN 18COND 0.156 GRAY 100' |
4,328 |
|
Datasheet | 8132 | Spool | Active | Flat Cable | 18 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 2.748" (69.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
SL8802/08-30DN5-00CBL RIBN 8COND 0.093 SILVER 500' |
2,003 |
|
- |
SL8800 | Spool | Discontinued at Digi-Key | Flat Twin Axial | 8 (4 Pair) | 0.093" (2.37mm) Between Pairs | 500.0' (152.40m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | - | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
1700/06BACBL RIBN 6COND TWIST PAIR 100' |
4,028 |
|
Datasheet | 1700 | Bulk | Active | Flat Twisted Pair | 6 (3 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
.jpg)
|
1700/50TDCBL RIBN 50COND TWIST PAIR 200' |
1,134 |
|
Datasheet | 1700 | Bulk | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
.jpg)
|

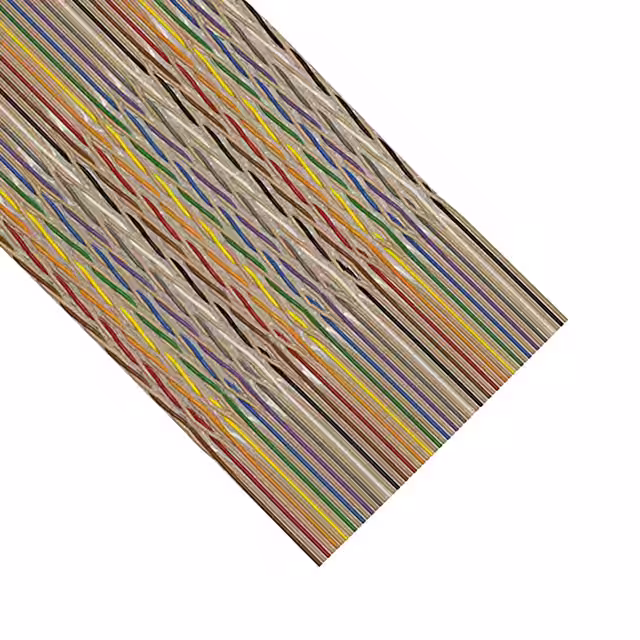

1700/60TBCBL RIBN 60COND TWIST PAIR 300' |
4,585 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 60 (30 Pair Twisted) | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|

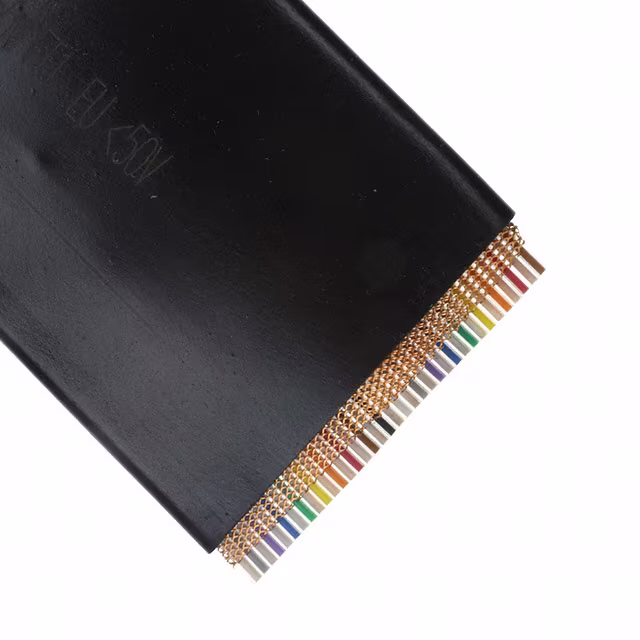

1785/36CBL RIBN 36COND TWIST PAIR 200' |
2,525 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 36 (18 Pair Twisted) | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.930" (49.02mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|

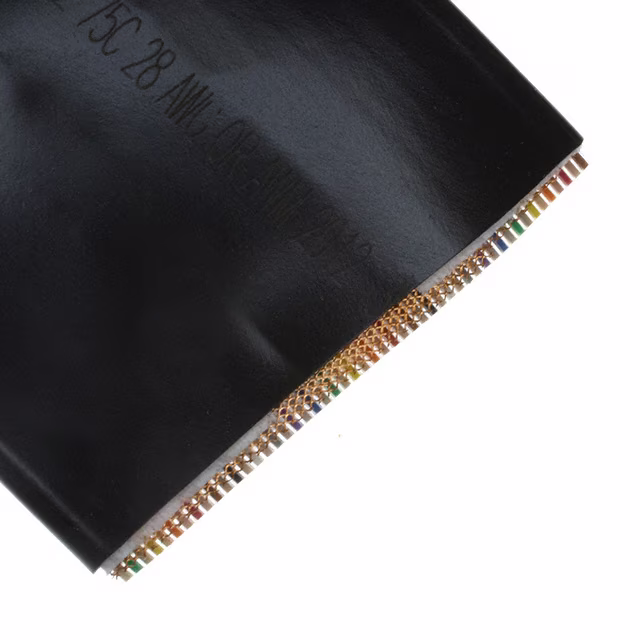

1785/50CBL RIBN 50COND TWIST PAIR 200' |
1,869 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3319/04CBL RIBN 4COND 0.05 BLACK 100' |
4,772 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 4 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3319/20SFCBL RIBN 20COND 0.05 BLACK 300' |
1,252 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
