Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3319/34 100CBL RIBN 34COND 0.05 BLACK 50' |
1,501 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

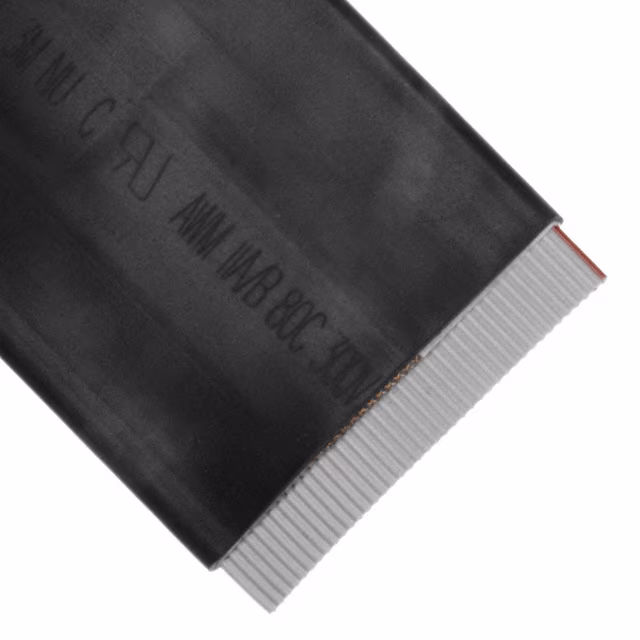

3517/40 100SFCBL RIBN 40COND 0.05 GRAY 50' |
2,393 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3319/40 100CBL RIBN 40COND 0.05 BLACK 50' |
1,430 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF319/30 (100')CBL RIBN 30COND 0.05 GRAY 50' |
1,555 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 30 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.500" (38.10mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

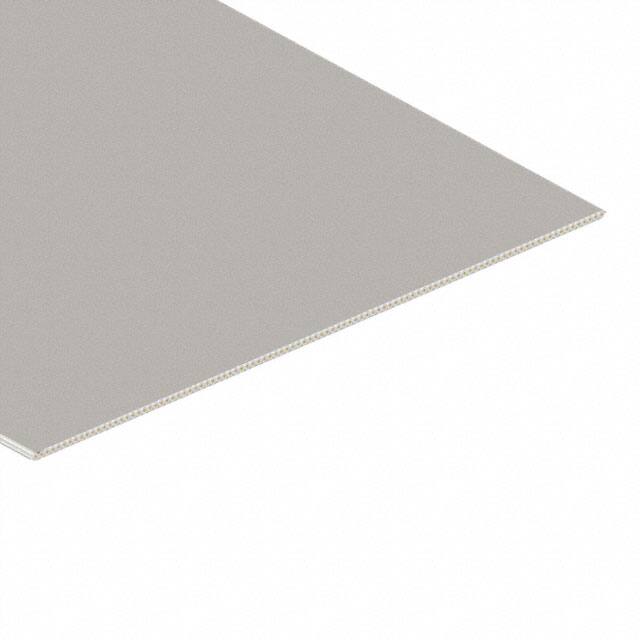

7700/100 100'SFCBL RIBN 100COND 0.025 SILV 100' |
3,826 |
|
Datasheet | 7700 | Spool | Obsolete | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 2.550" (64.77mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
3758G/40SFCBL RIBN |
2,871 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
|
3302/30 300CBL RIBN |
4,144 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C3319/24 100CBL RIBN 24COND 0.05 BLACK 100' |
2,117 |
|
Datasheet | 3319 | Bulk | Obsolete | Flat Cable | 24 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
SL8802/04-10DN5-00CBL RIBN 4COND 0.093 SILVER 250' |
4,254 |
|
Datasheet | SL8800 | Spool | Discontinued at Digi-Key | Flat Twin Axial | 4 (2 Pair) | 0.093" (2.37mm) Between Pairs | 250.0' (76.20m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.215" (5.45mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
|
C3319/50 100CBL RIBN 50COND 0.05 BLACK 25' |
1,920 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
