Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3801/50 300CBL RIBN 50COND 0.05 GRAY 100' |
2,702 |
|
Datasheet | 3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/30 100SFCBL RIBN 30COND 0.05 GRAY 25' |
3,132 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 30 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.630" (41.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|

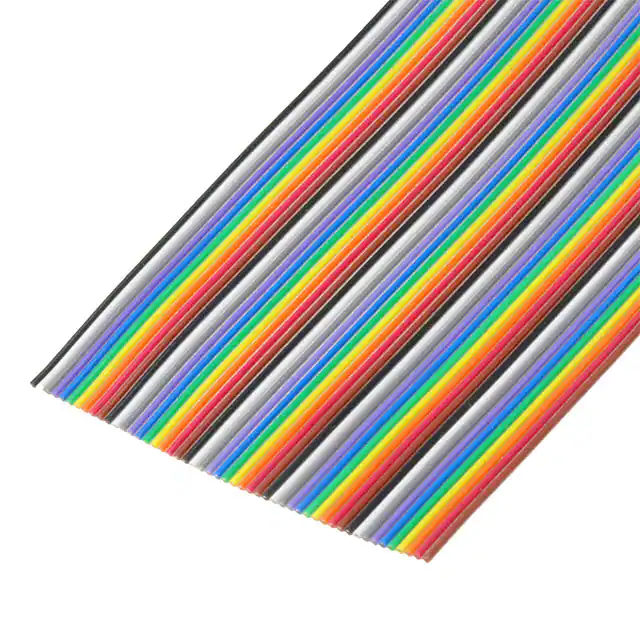

3811/50 100CBL RIBN 50COND 0.05 MULTI 50' |
3,228 |
|
Datasheet | 3811 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3709/64 100CBL RIBN 64COND 0.05 GRAY 100' |
1,335 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF659/26SFCBL RIBN 26COND 0.05 GRAY 50' |
1,665 |
|
Datasheet | HF659 | Box | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.250" (31.75mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|

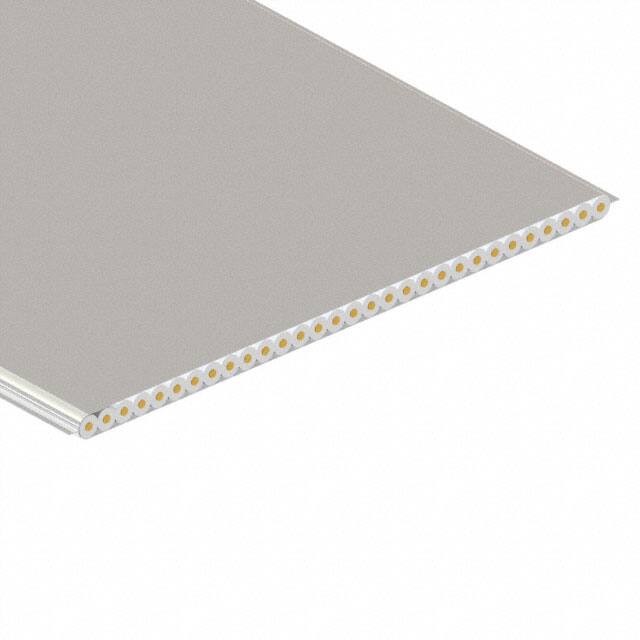

7700/30 100'SFCBL RIBN 30COND 0.025 SILVER 50' |
3,320 |
|
Datasheet | 7700 | Box | Discontinued at Digi-Key | Flat Cable | 30 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 0.800" (20.32mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
3476/10 100CBL RIBN 10COND 0.05 GRAY 50' |
2,072 |
|
Datasheet | 3476 | Bulk | Obsolete | Flat Cable, Ground Plane | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|
3601/26 100CBL RIBN 26COND 0.05 BLUE 10' |
4,834 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
HF539/30CBL RIBN 30COND 0.05 GRAY 50' |
1,697 |
|
Datasheet | HF539 | Box | Active | Flat Cable | 30 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.500" (38.10mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
.jpg)
|
3302/64 300SFCBL RIBN 64COND 0.05 MULTI 50' |
2,820 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 64 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
