Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3659/25 100SFCBL RIBN 25COND 0.05 BLACK 25' |
2,059 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3759/10 100SFCBL RIBN 10COND 0.05 BLACK 50' |
4,531 |
|
Datasheet | 3759 | Bulk | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|

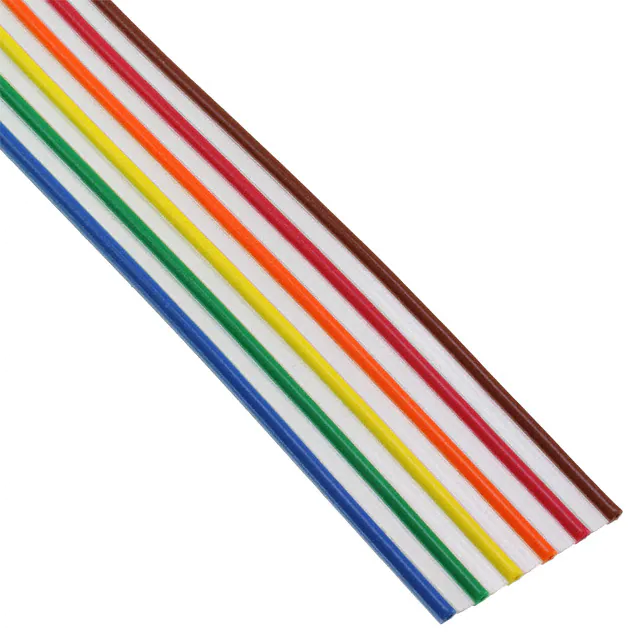

3391/06 100CBL RIBN 6COND 0.156 MULTI 100' |
1,600 |
|
Datasheet | 3391 | Bulk | Obsolete | Flat Cable | 6 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 0.850" (21.59mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
|
C3391/06 100CBL RIBN 6COND 0.156 MULTI 100' |
2,766 |
|
Datasheet | 3391 | Bulk | Obsolete | Flat Cable | 6 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 0.858" (21.79mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
|
3625/24 100MSFCBL RIBN 24COND 0.039 GRAY 82' |
4,030 |
|
Datasheet | 3625 | Bulk | Active | Flat Cable | 24 | 0.039" (1.00mm) | 82.0' (25.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
|
3801/06-300CBL RIBN |
1,176 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HF625/06-100MCBL RIBN 6COND 0.039 GRAY 229.7' |
4,319 |
|
Datasheet | HF625 | Bulk | Discontinued at Digi-Key | Flat Cable | 6 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.236" (6.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF365/25SFCBL RIBN 25COND 0.05 GRAY 50' |
1,069 |
|
Datasheet | HF365 | Box | Active | Flat Cable | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
|
3759/10SOSFCBL RIBN 10COND FLAT 0.05 BLACK |
3,389 |
|
Datasheet | 3759 | Spool | Obsolete | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | - | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Splice Free |
.jpg)
|
3659/34 100CBL RIBN 34COND 0.05 BLACK 25' |
2,641 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.650" (41.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
