Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3302/34 100CBL RIBN 34COND 0.05 MULTI 25' |
4,535 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3365/64 300SFCBL RIBN 64COND 0.05 GRAY 25' |
1,872 |
|
Datasheet | 3365 | Bulk | Active | Flat Cable | 64 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3811/10 300CBL RIBN 10COND 0.05 MULTI 100' |
2,755 |
|
Datasheet | 3811 | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|

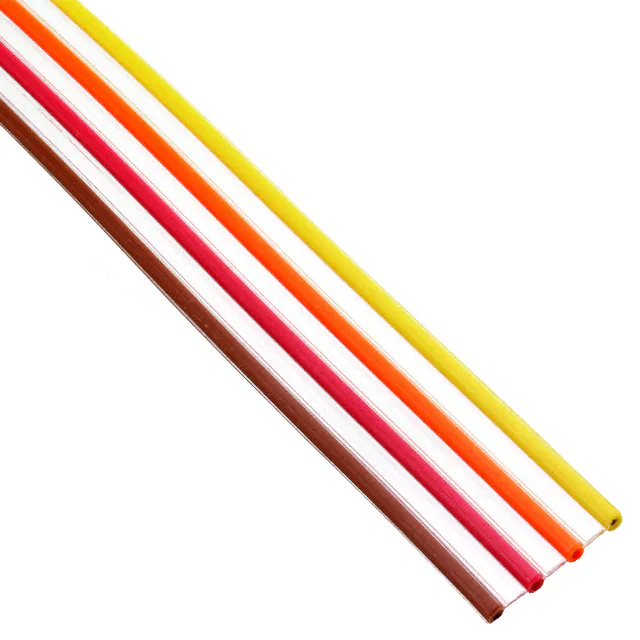

3391/04 100CBL RIBN 4COND 0.156 MULTI 100' |
3,159 |
|
Datasheet | 3391 | Bulk | Obsolete | Flat Cable | 4 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 0.546" (13.87mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
|
R9965/24 300SFCBL RIBN 24COND 0.05 GRAY 300' |
4,651 |
|
- |
R9965 | Bulk | Obsolete | Flat Cable | 24 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Splice Free, Zippable |
|
HF539/40CBL RIBN 40COND 0.05 GRAY 10' |
1,383 |
|
Datasheet | HF539 | Box | Active | Flat Cable | 40 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3609/20 100CBL RIBN 20COND 0.025 WHITE 5' |
2,694 |
|
Datasheet | 3609 | Bulk | Active | Flat Cable | 20 | 0.025" (0.64mm) | 5.0' (1.52m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
HF319/16 (300')CBL RIBN 16COND 0.05 GRAY 10' |
4,323 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
7700/14 100'SFCBL RIBN 14COND 0.025 SILVER 25' |
4,534 |
|
Datasheet | 7700 | Box | Discontinued at Digi-Key | Flat Cable | 14 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 0.400" (10.16mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
3319/06 100CBL RIBN 6COND 0.05 BLACK 25' |
4,701 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.300" (7.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
