Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3365/16 300CBL RIBN 16COND 0.05 GRAY 25' |
4,051 |
|
Datasheet | 3365 | Bulk | Discontinued at Digi-Key | Flat Cable | 16 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
3302/40 100CBL RIBN 40COND 0.05 MULTIPLE 5' |
1,413 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3603/16 100CBL RIBN 16COND 0.05 GRAY 5' |
1,291 |
|
Datasheet | 3603 | Bulk | Discontinued at Digi-Key | Flat Cable, Flat Jacket | 16 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.100" (2.54mm) | 0.882" (22.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
C3801/10 100CBL RIBN 10COND 0.05 GRAY 25' |
2,388 |
|
Datasheet | 3801 | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 25.0' (7.62m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3801/09SF 300CBL RIBN 9COND 0.05 GRAY 25' |
3,070 |
|
Datasheet | 3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 9 | 0.050" (1.27mm) | 25.0' (7.62m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/40 100SFCBL RIBN 40COND 0.05 GRAY 1' |
1,714 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 40 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
HF319/30 (100')CBL RIBN 30COND 0.05 GRAY 1' |
2,018 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 30 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.500" (38.10mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3601/15 100CBL RIBN 15COND 0.05 BLUE 1' |
3,949 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 15 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

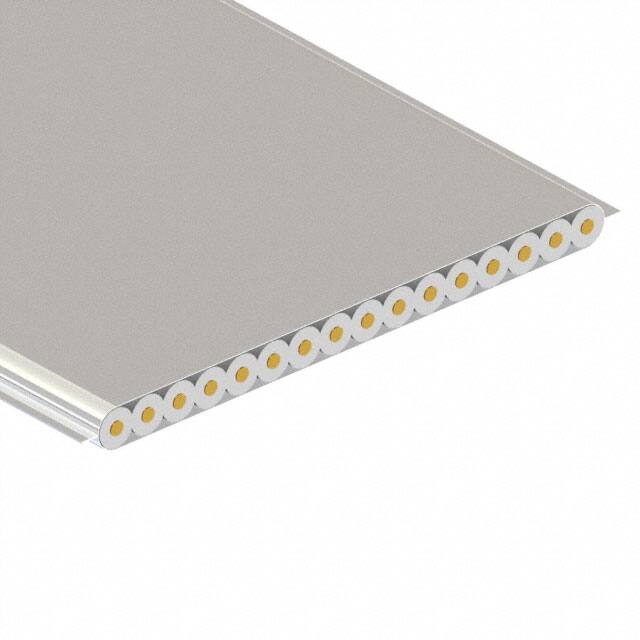

7700/16 100'SFCBL RIBN 16COND 0.025 SILVER 5' |
4,547 |
|
Datasheet | 7700 | Box | Discontinued at Digi-Key | Flat Cable | 16 | 0.025" (0.64mm) | 5.0' (1.52m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 0.450" (11.43mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
3811/37 100CBL RIBN 37COND 0.05 MULTIPLE 5' |
1,938 |
|
Datasheet | 3811 | Bulk | Discontinued at Digi-Key | Flat Cable | 37 | 0.050" (1.27mm) | 5.0' (1.52m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
